DP-C405/C305/C265
CN526-3 +24VF_2
Pickup Roller
Solenoid
(Tray2)
+24V DC Power Supply
CN526-4 nPFSOL2
Pickup Roller
Solenoid
(Tray2)
Paper Feed Solenoid 2
CN526-5 +5V_1
Paper Path
Sensor
(Tray2)
+5V DC Power Supply
CN526-6 +5V_2
Upper Limit
Sensor
(Tray2)
+5V DC Power Supply
CN526-7 nPPSN2
Paper Path
Sensor
(Tray2)
Paper Path Sensor 2
CN526-8 pULSN2
Upper Limit
Sensor
(Tray2)
Tray 2 Upper Limit of Paper
Sensor
CN526-9 GND_1
Paper Path
Sensor
(Tray2)
Ground
CN526-10 GND_2
Upper Limit
Sensor
(Tray2)
Ground
CN526-11 +5V_3
NP Sensor
(Tray2)
+5V DC Power Supply
CN526-12 nPESN2
NP Sensor
(Tray2)
Tray 2 Paper Empty Sensor
Signal
CN526-13 GND_3
NP Sensor
(Tray2)
Ground
CN526-14 N.C. No Connection
EC PCB
Pin No.

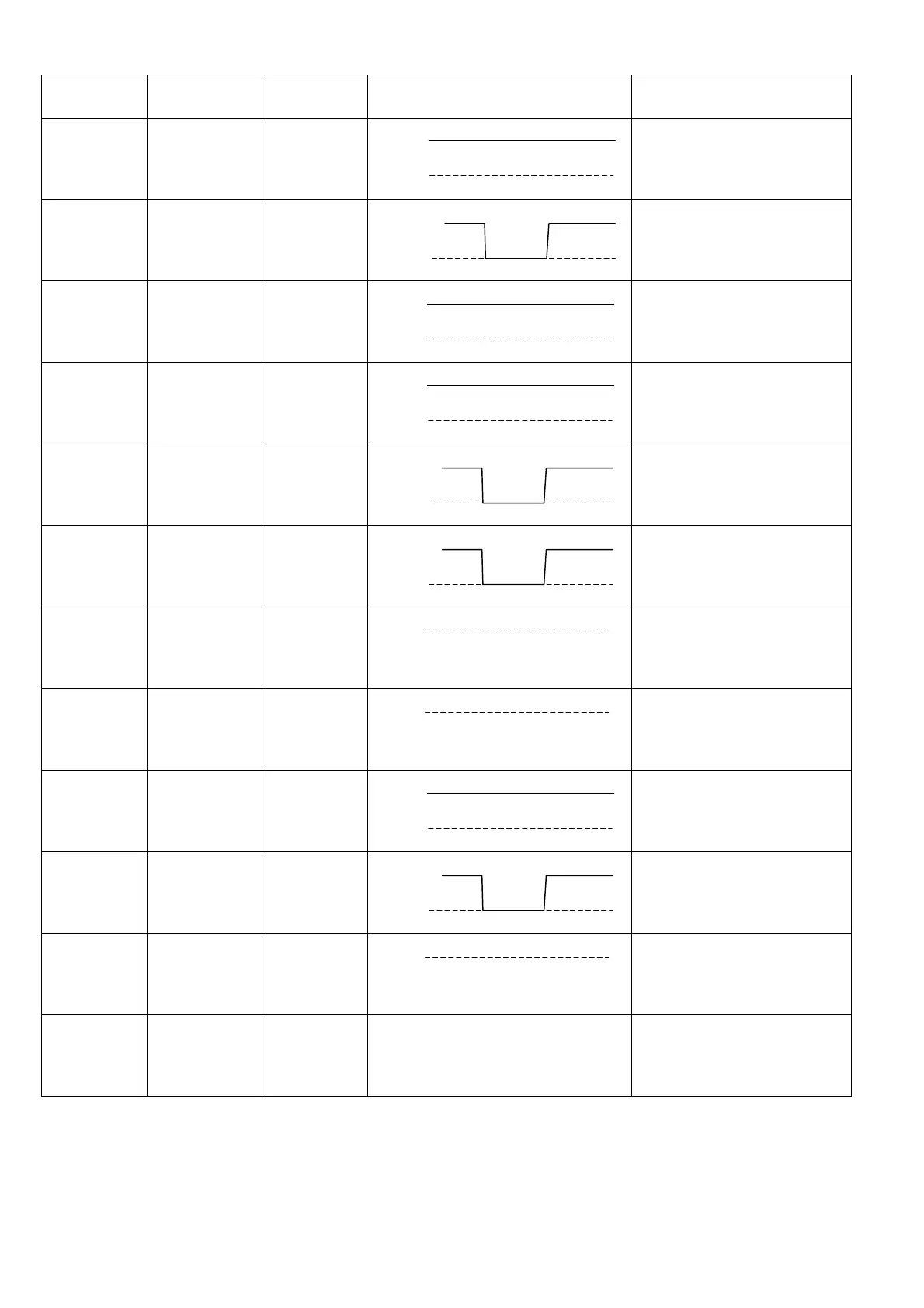

Signal Name Destination Signal Waveform Function
+24V
0V
+24V
0V
+5V
0V
+5V
0V
+5V
0V
+5V
0V
0V
0V
+5V
0V
+5V
0V
0V
