ADF PCB - CN651 (DP-C354/C322 Series Only)
CN650-6 ARVCL2
SCN
CN707-5
Inverting Clutch 2 Control
Signal
CN650-7 ARRCNT
SCN
CN707-6
Registration Roller Clutch
Control Signal
CN650-8 ARRSN2
SCN
CN707-7
Registration Sensor 2 Signal
CN650-9 ADXSN
SCN
CN707-8
Inverting Path Sensor
Detection Signal
CN650-10 ADFRRSN1
SCN
CN707-9
Registration Sensor 1 Signal
CN650-11 ARST
SCN
CN707-10
System Reset Signal
CN650-12 N.C. No Connection
ADF PCB
Pin No.

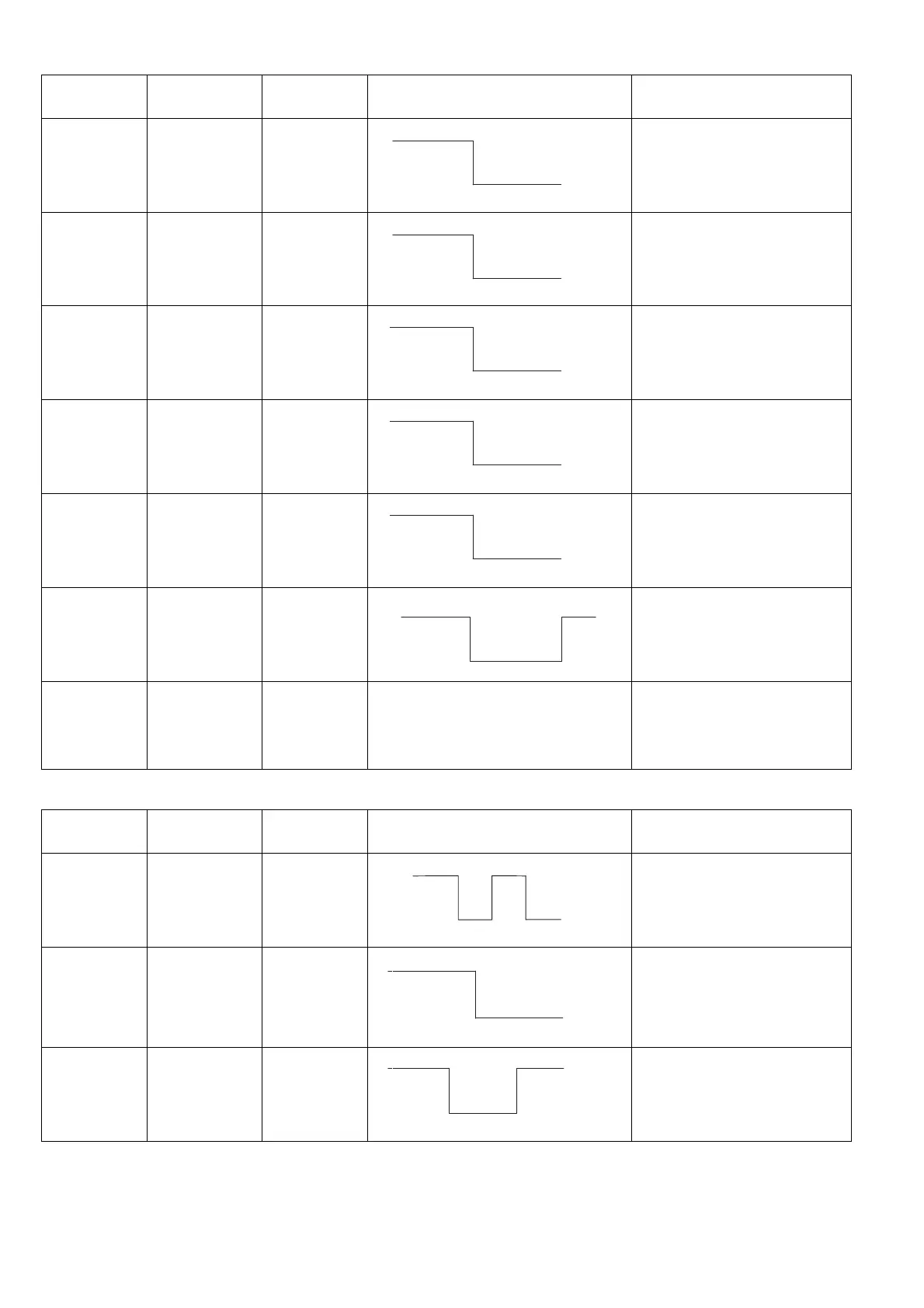

Signal Name Destination Signal Waveform Function
CN651-1 AFDOUT
SCN
CN707-12
FIFO Data In
CN651-2 AFENB
SCN
CN707-13
FIFO Enable
CN651-3 AFLTH
SCN
CN707-14
FIFO Latch
ADF PCB
Pin No.
Signal Name Destination Signal Waveform Function
+24V
0V
OFF
ON
+24V
0V
OFF
ON
+5V
0V
Detected
Not
Detected
+5V
0V
Detected
Not
Detected
+5V
0V
Detected
Not
Detected
+5V
0V
RESET
+5V
0V
Pluse
+5V
0V
+5V
0V
