DP-C405/C305/C265
ADF PCB - CN659 (DP-C354/C322 Series Only)
ADF PCB - CN660
CN659-8 N.C. No Connection
ADF PCB

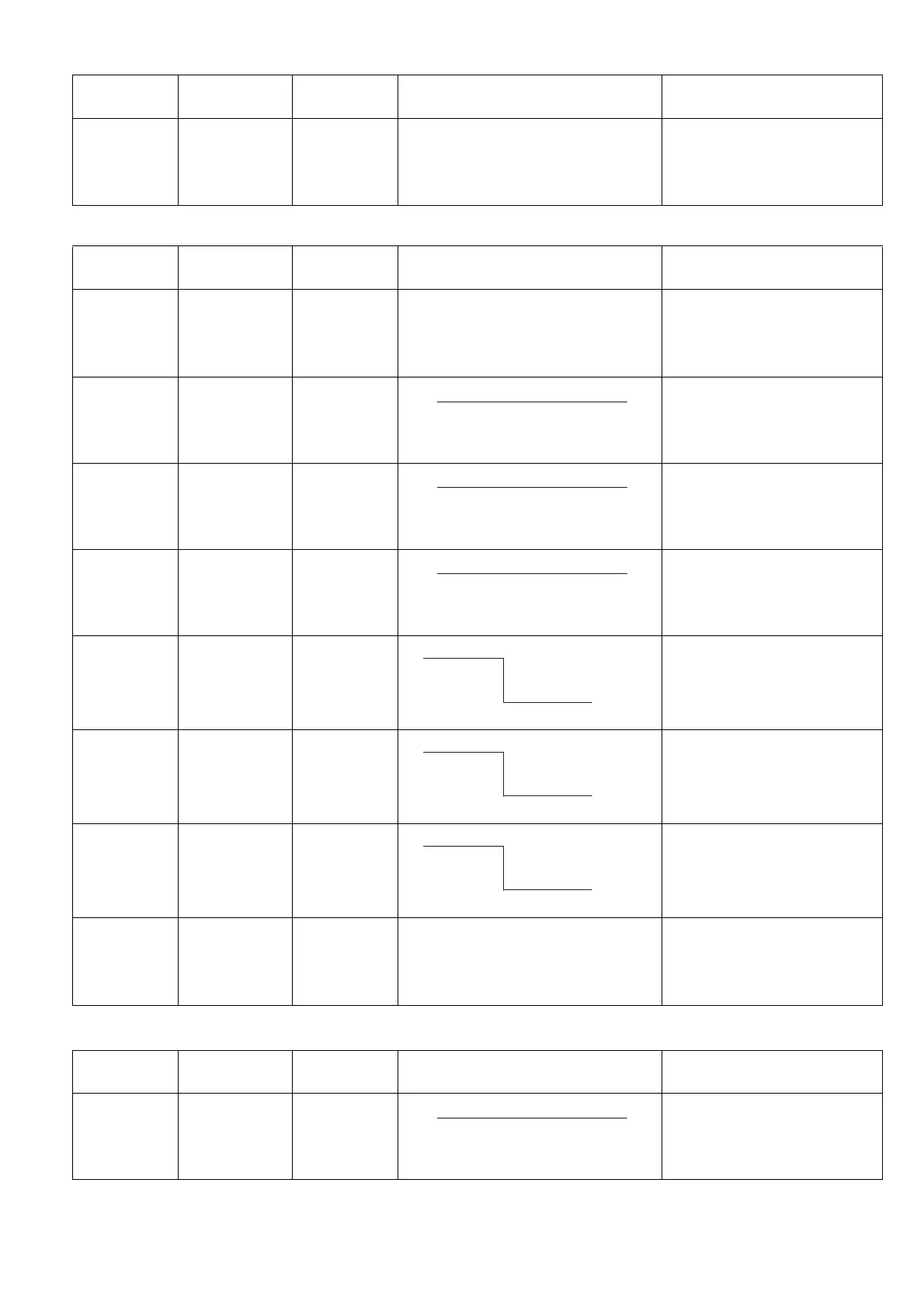

Pin No.
Signal Name Destination Signal Waveform Function
CN659-1 N.C. No Connection
CN659-2 +24VO1
Slow Down
Clutch
+24 VDC Power Supply
CN659-3 +24VO1
Inverting
Clutch 1
+24 VDC Power Supply
CN659-4 +24VO1
Inverting
Clutch 2
+24 VDC Power Supply
CN659-5 SDCLCNT
Slow Down
Clutch
Slow Down Clutch Control
Signal
CN659-6 SB1CLCNT
Inverting
Clutch 1
Inverting Clutch 1 Control
Signal
CN659-7 SB2CLCNT
Inverting
Clutch 2
Inverting Clutch 2 Control
Signal
CN659-8 N.C. No Connection
ADF PCB
Pin No.
Signal Name Destination Signal Waveform Function
CN660-1 +24VO1
Pinch
Solenoid
+24 VDC Power Supply
ADF PCB
Pin No.
Signal Name Destination Signal Waveform Function
+24V
+24V
+24V
+24V
0V
OFF
ON
+24V
0V
OFF
ON
+24V
0V
OFF
ON
+24V
