Panasonic FP7 CPU Unit - LAN Port Specifications

1.1 Communication Ports of CPU Unit
1.1.2 LAN Port Specifications

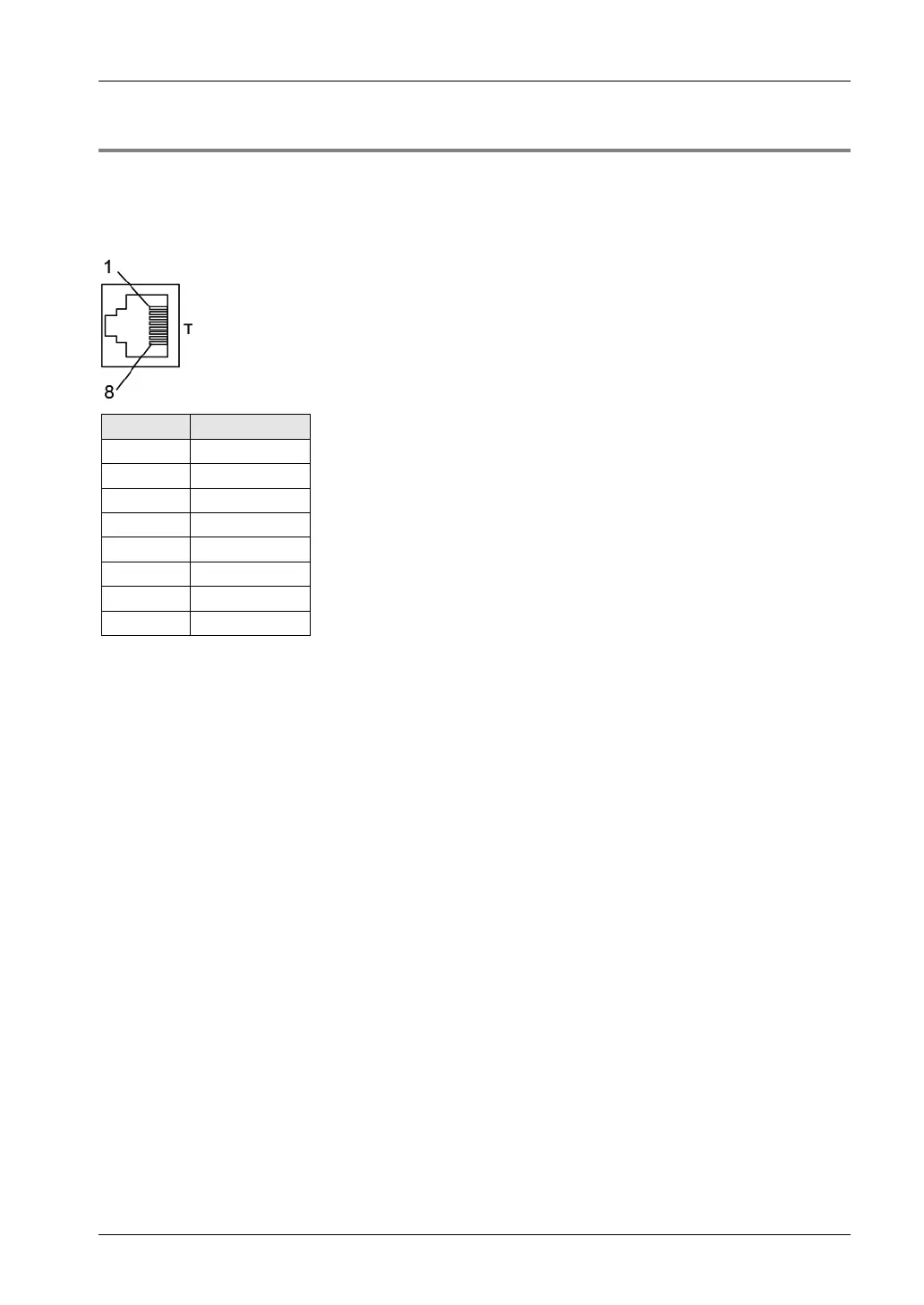

 100BASE-TX / 10BASE-T connector (RJ45)
This connector connects the ET-LAN Unit and the Hub in Ethernet (100BASE-TX, 10BASE-T)
and UTP Cable.
Pin no. Signal name
1 TX+
2 TX-
3 RX+
4 Not used
5 Not used
6 RX-
7 Not used
8 Not used
 Functions of LED lamps
(1) LINK
Turns on when connection is established between the FP7 CPU unit and a device on Ethernet.
(2) ACK
Flashes when some communication is in progress with a connected device (e.g.
sending/receiving a command or response).
1-3
