Panasonic FPG Series User Manual

FP∑ Positinoning Unit JOG Operation
8-7

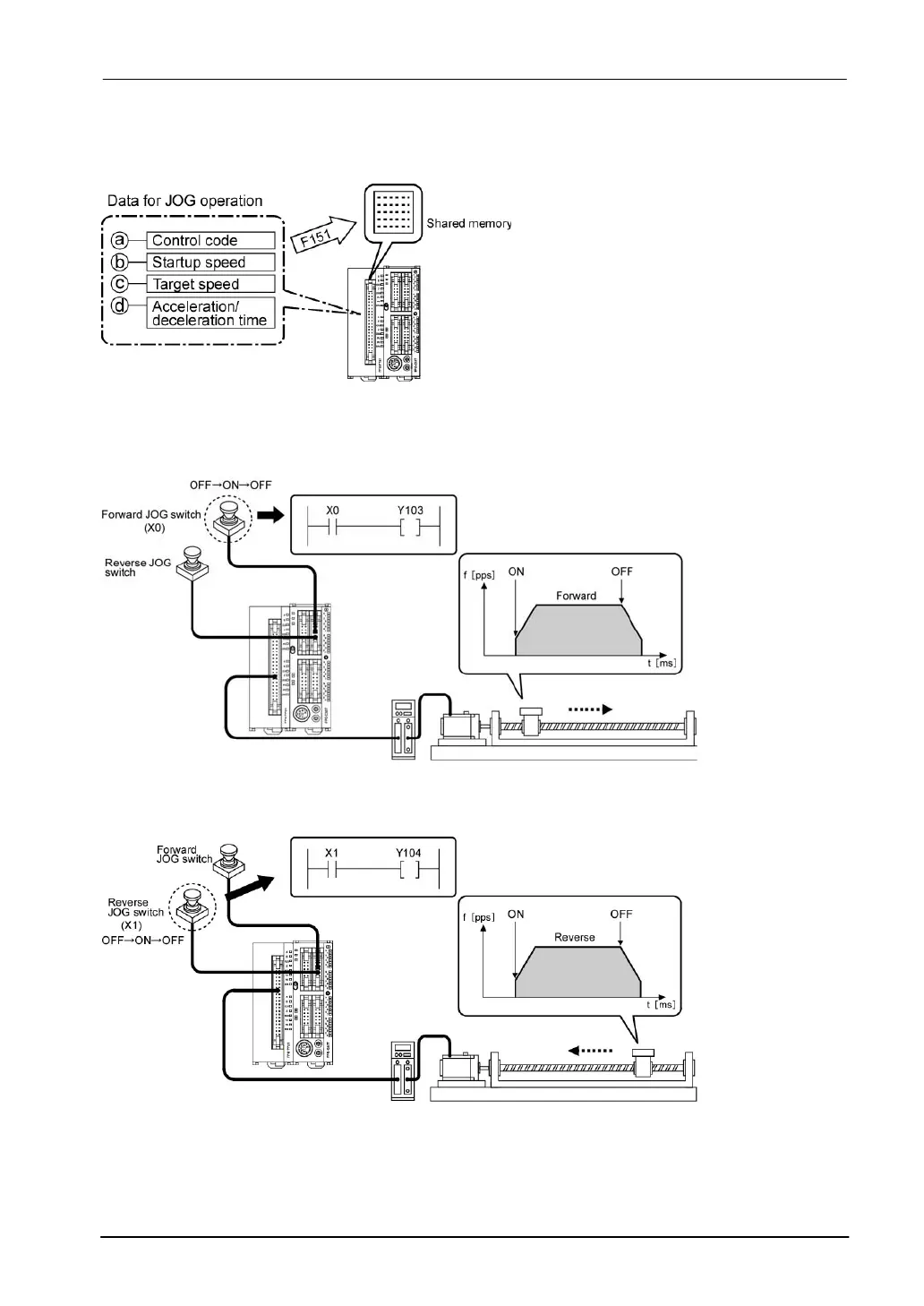

Operation steps
Step 1: Preparatory stage
The data for operation is transferred to the shared memory ahead of time.
Step 2: Executing the operations
Forward
The start flag Y103 for forward rotation is turned ON.
Reverse
The start flag Y104 for reverse rotation is turned ON.
The control codes determine whether S acceleration/deceleration or linear acceleration/
deceleration is used.
When the start flag is turned ON, acceleration takes places from the startup speed to the target speed
for the acceleration/deceleration time. When the flag is turned OFF, deceleration takes place until the
startup speed is reached, and operation then stops.

Panasonic FPG Series Specifications

General

High-speed counter	Up to 100 kHz
Input Voltage	24 V DC
Dimensions	Varies by model
Weight	Varies by model
Program Capacity	32 k steps
Programming Language	Ladder Logic
Communication	RS232C, RS485, Ethernet
Pulse output	100 kHz
Operating Temperature	0 to 55 °C
Supply Voltage	24V DC or 100-240V AC
Output Type	Relay, Transistor
Storage Temperature	-20 to 70 °C
Humidity	5 to 95% RH (non-condensing)
