Panasonic FPG Series User Manual

FP2 Positioning Unit Feedback Counter
13-7

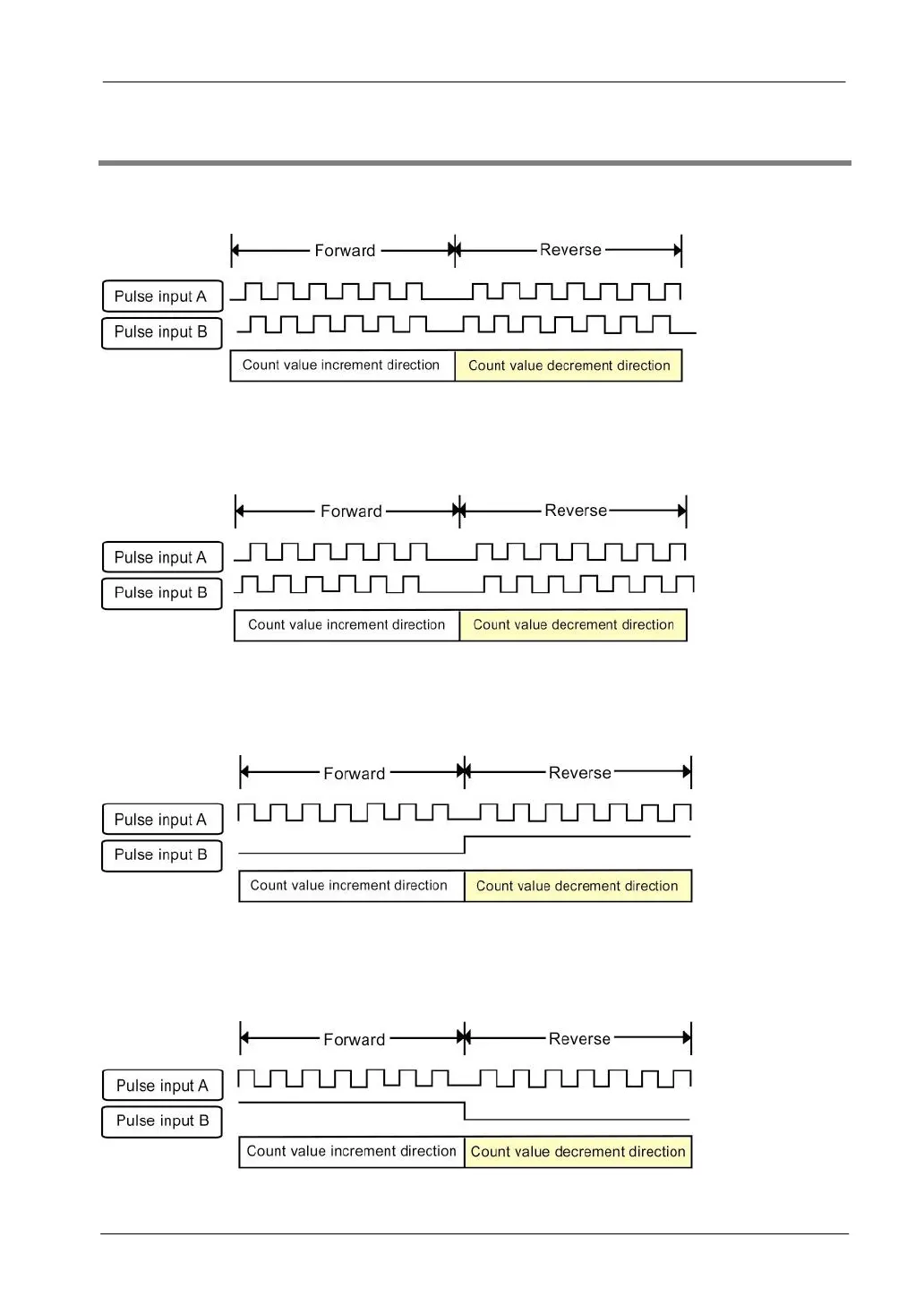

13.3 Feedback Counter Input Method
2-phase input <normal settings>
Control code Higher side H0
2-phase input <reverse settings>
Control code Higher side H1
Direction distinction input <normal settings>
Control code Higher side H4
Direction distinction input <reverse settings>
Control code Higher side H5

Panasonic FPG Series Specifications

General

High-speed counter	Up to 100 kHz
Input Voltage	24 V DC
Dimensions	Varies by model
Weight	Varies by model
Program Capacity	32 k steps
Programming Language	Ladder Logic
Communication	RS232C, RS485, Ethernet
Pulse output	100 kHz
Operating Temperature	0 to 55 °C
Supply Voltage	24V DC or 100-240V AC
Output Type	Relay, Transistor
Storage Temperature	-20 to 70 °C
Humidity	5 to 95% RH (non-condensing)
