Panasonic FPG Series User Manual

FP∑ Positioning Unit JOG Positioning Operation
9-7

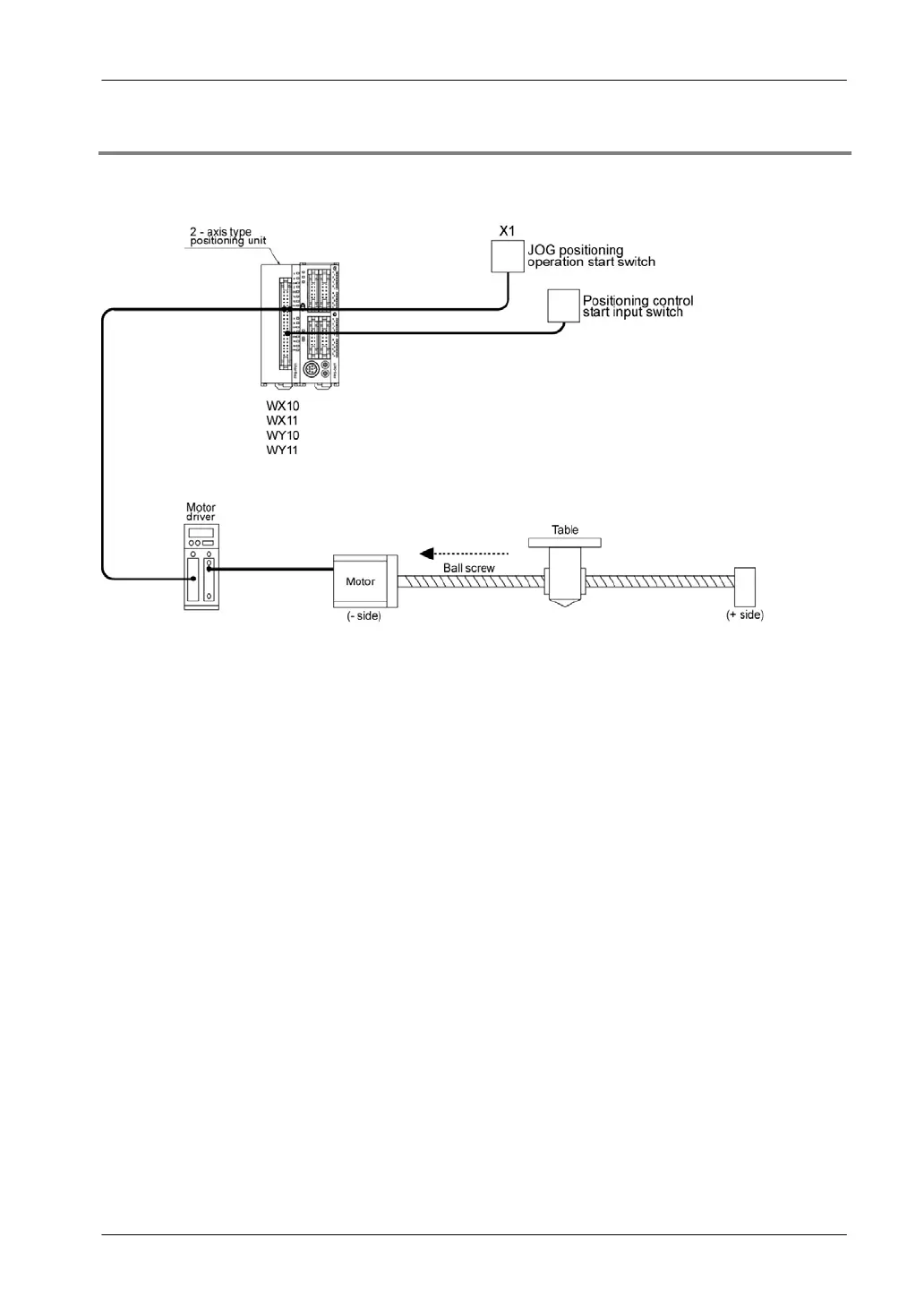

9.1.2 Increment (Relative Value Control): Minus ( - ) Direction
This is a program to start the JOG positioning operation (speed control -> position control) from JOG
operation by the external switch input. The “Increment” method is used for the travel amount setting and
the direction in which the elapsed value increases as the motor rotates is set as the plus (+) direction.

Panasonic FPG Series Specifications

General

High-speed counter	Up to 100 kHz
Input Voltage	24 V DC
Dimensions	Varies by model
Weight	Varies by model
Program Capacity	32 k steps
Programming Language	Ladder Logic
Communication	RS232C, RS485, Ethernet
Pulse output	100 kHz
Operating Temperature	0 to 55 °C
Supply Voltage	24V DC or 100-240V AC
Output Type	Relay, Transistor
Storage Temperature	-20 to 70 °C
Humidity	5 to 95% RH (non-condensing)
