Confirming the Unit Settings and Design Contents FP∑ Positioning Unit
4-10
4.3.2 Absolute (absolute value control)

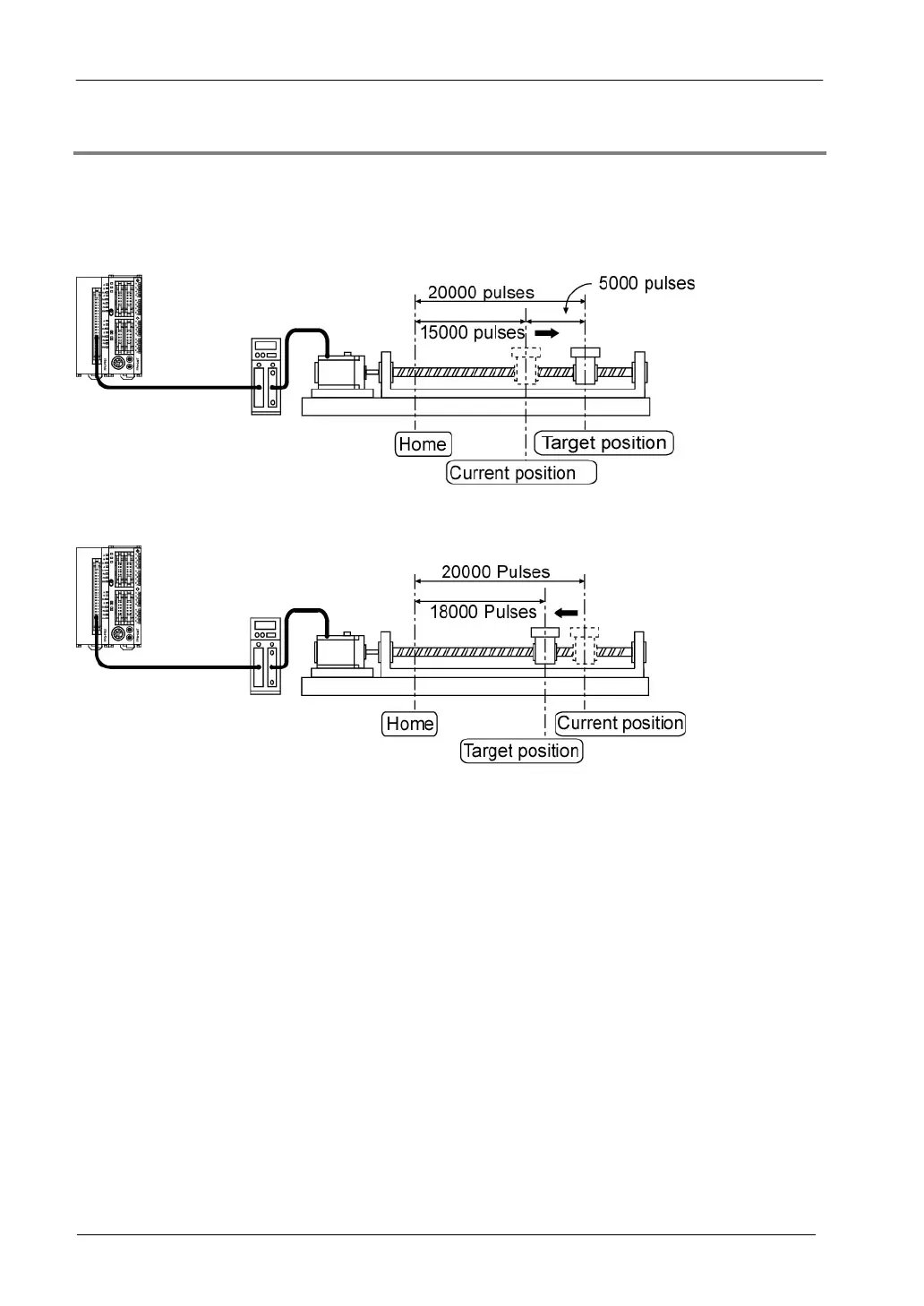

The position command value is normally specified as the absolute position from the home position, using
a number of pulses.
Example:
If the unit is 15,000 pulses away from the home position, it travels +5,000 pulses,
“+20000 pulses” is set as the position command value, and travel is carried out.
“ + 18000 pulses” is set as the next position command value, and travel is carried out.
