FP∑ Positioning Unit JOG Positioning Operation
9-11
9.2 Flow of JOG Positioning
JOG positioning operation
-When the flag for JOG positioning operation start flag (JGST) (Y_8) is turned ON, a speed control,
automatic acceleration/deceleration, in accordance with the specified data table, and the table travels
for the value set by the positioning control start input.
-S Acceleration/Deceleration can be selected. (Sin curve, Secondary curve, Cycloid curve, Third curve)
When is mounted in slot 0

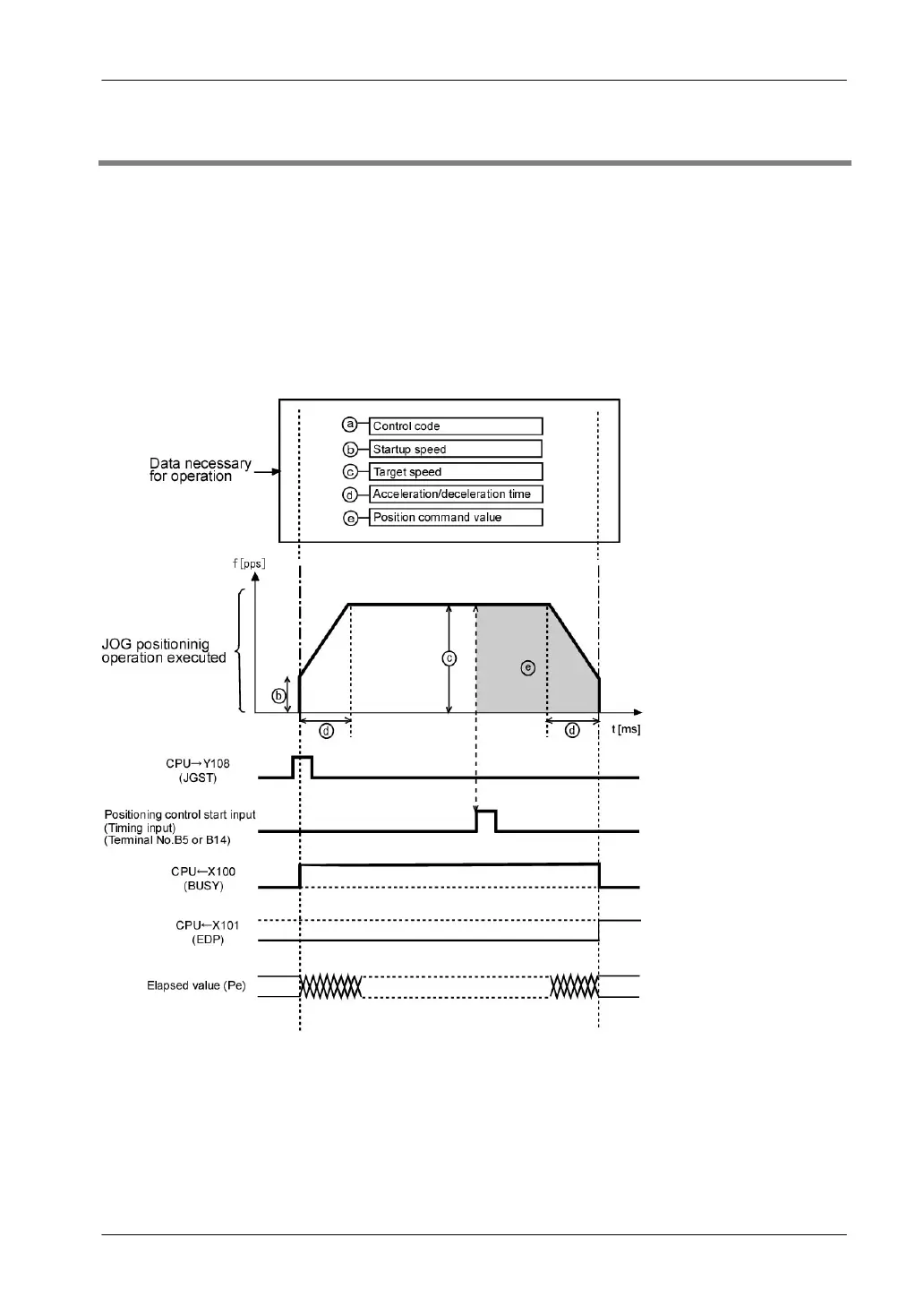

Operation example
When the flag for initiating JOG positioning operation is turned ON, acceleration/deceleration is carried
out repeatedly, in accordance with the settings, and then the operation stops.
