3.3 Location of Controls
Incoming/Charge indicator:
Green – incoming call.
Red – charging battery pack.
External connector:
Used to connect to external accessories or charging equipment.

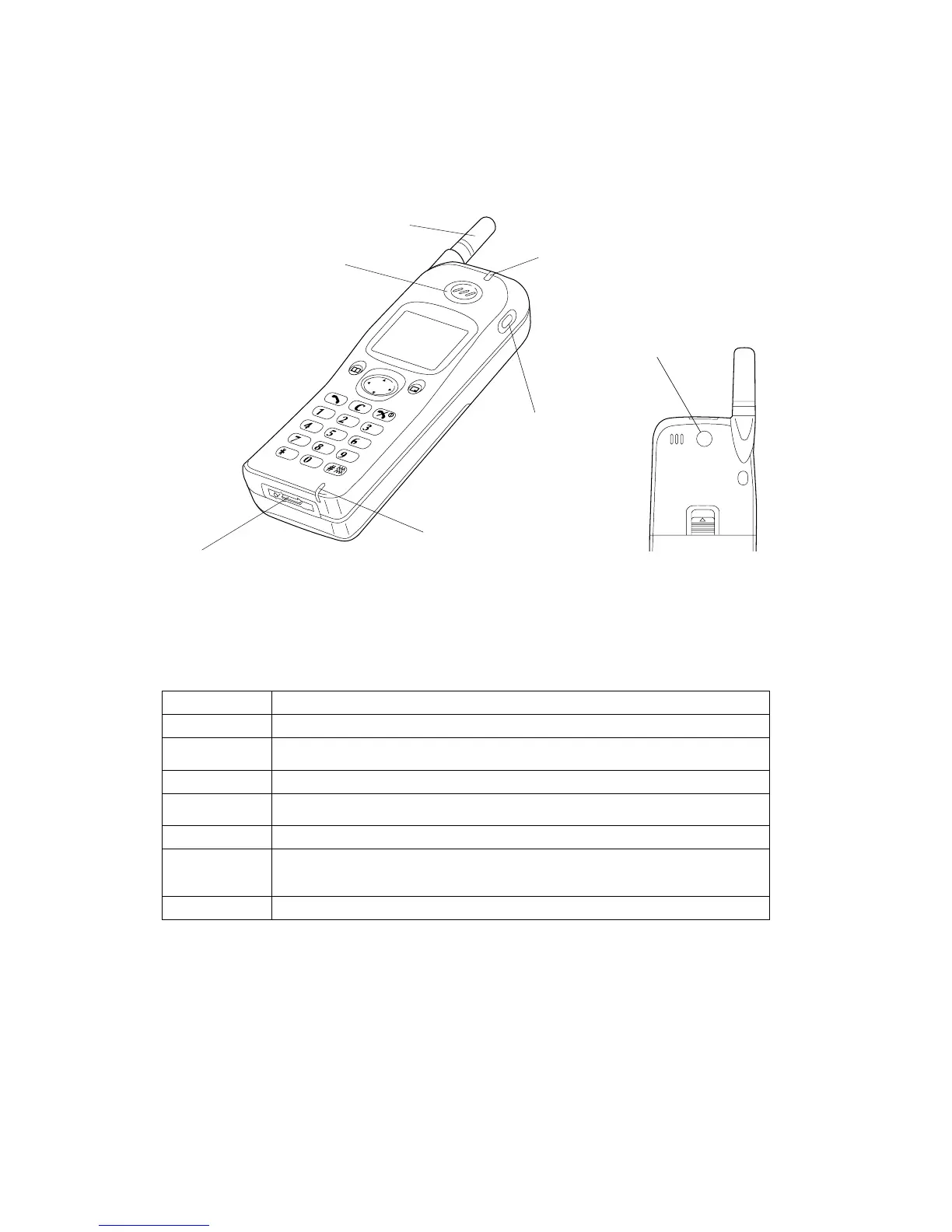

Figure 3.2: Location of controls for GD90
g
Navigation Key. Scrolls through options or features menu and increases or decreases volume.
B
Select Key. Selects option shown in the Option Area of the display.
A
Phonebook Key. Browses through the Phonebook or stores a number in the Phonebook.
Changes the type of characters entered during Alpha Entry.
D
Send Key. Makes a call.
C
Clear Key. Clears the last digit entered, clears all digits when pressed and held or returns to
the previous display.
E
End Key. Ends a call or switches the telephone on/off when pressed and held.
0 to 9
Digit keys. Enter wild numbers or pauses when pressed and held. Where appropriate the 0
key scrolls up or down through abbreviated control names and then select to reveal the
international access code “+”.
#
Vibrate enable/disable Key. Press and hold to enable or disable the vibrate alert.
Earpiece
Antenna
External Antenna
Connector
REAR VIEW
10024-1
ABC
DEF
GHI
JKL
TUV
+
WXYZ
MNO
PQRS
M
E
M
O
Incoming/Charging
Indicator
Memo Key
Microphone
External
Connector
