MCUK990801C8 Section 6 Issue 1
Service Manual – 49 – Revision 0
6.7 Lock Code
NOTE: See Section6.2.1 for a list of the equipment and setup procedures required to perform the following adjustment
and calibration procedures.
To perform the following procedures the UUT must be placed into Test Mode.
6.7.1 Check current lock code
1. At the Channel box press F4 and highlight VIEW LOCK CONDITION. Press ENTER.

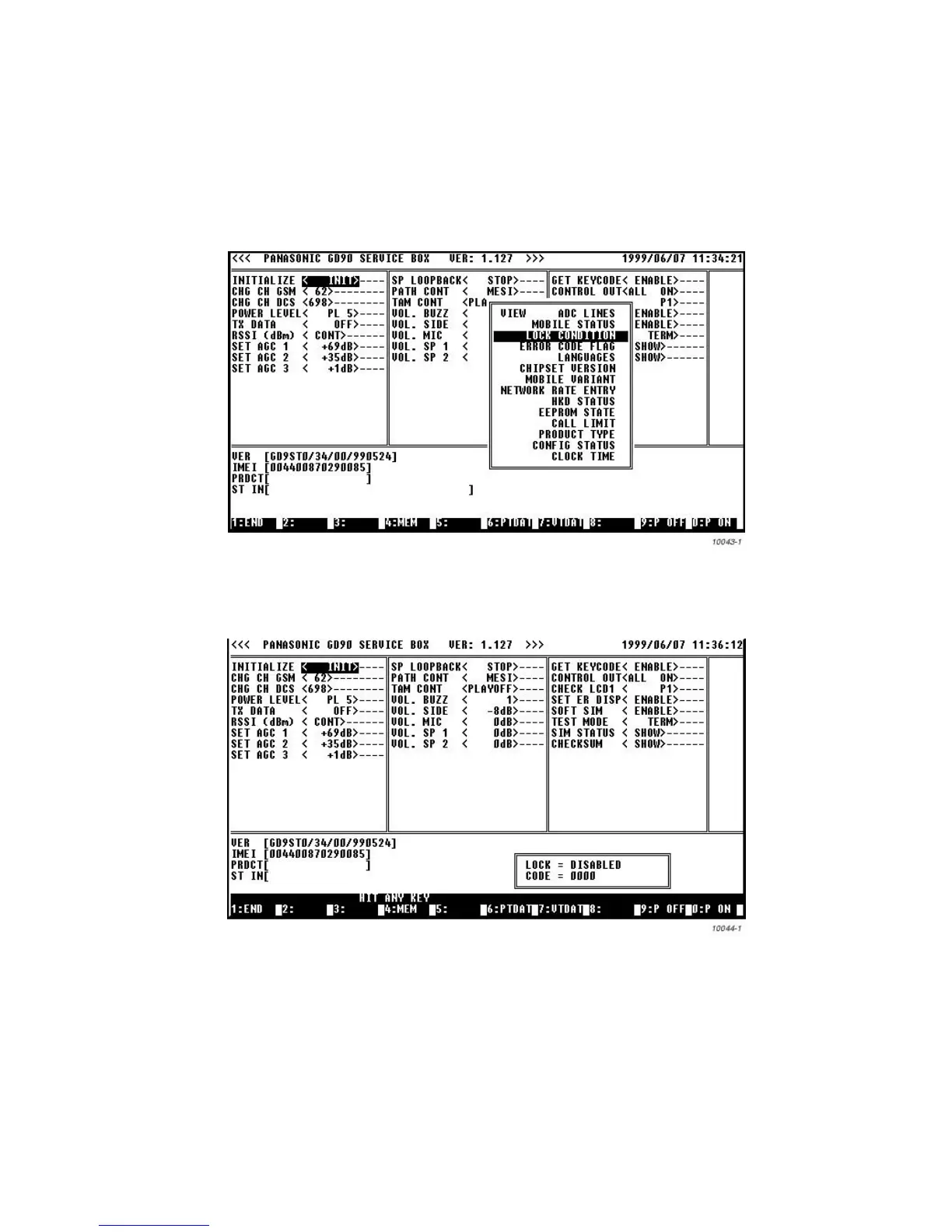

Figure 6.25: View lock code
2. The display will show the current lock status and lock code for the Unit Under Test.
