REPLACEMENT PARTS LIST
Issue 1 Section 9 MCUK990801C8
Revision 0 – 58 – Service Manual
9.2 Sub-Assemblies

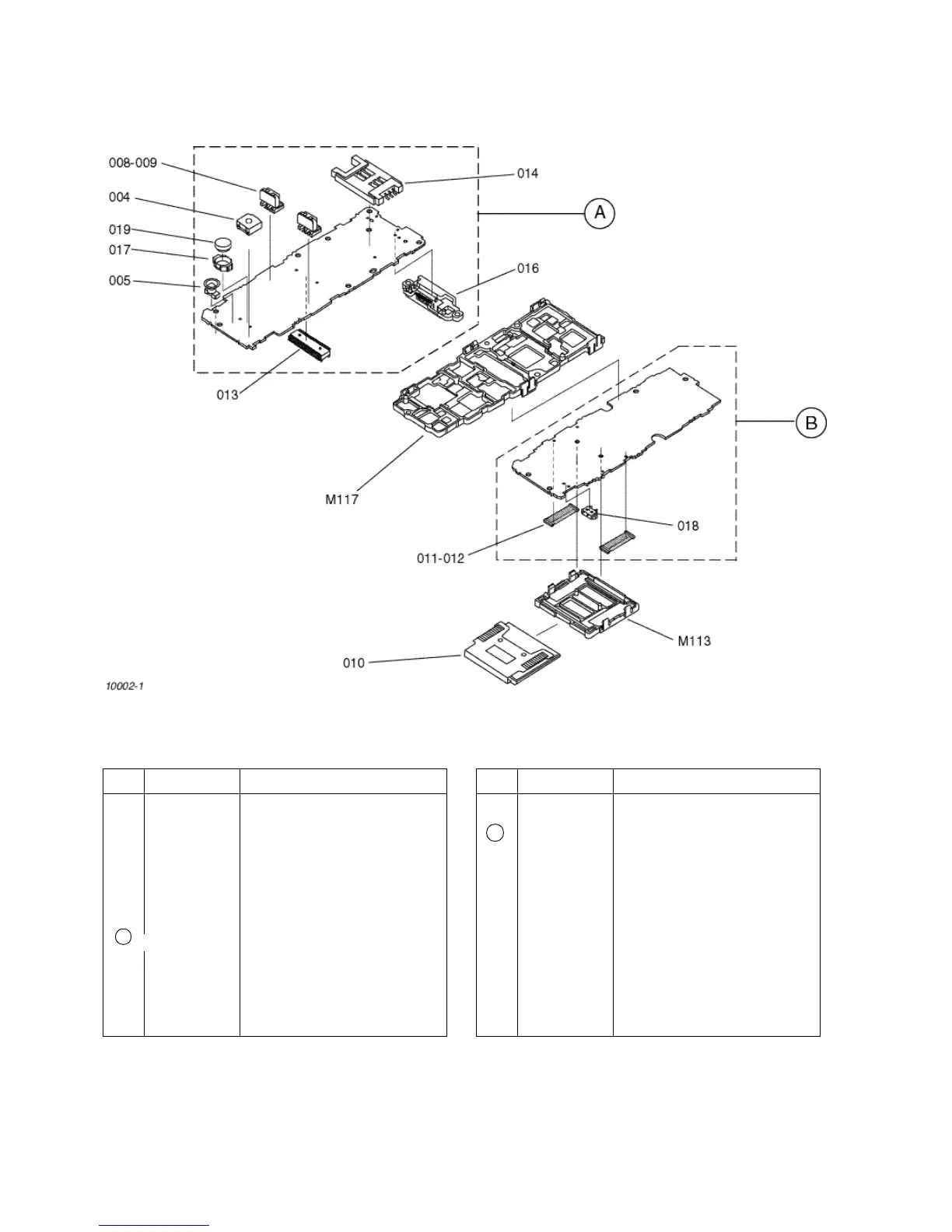

Figure 9.2: Sub-Assemblies
Ref Part Number Description
M113 2QA548A LCD BACKLIGHT
M117 2FA528A CHASSIS
010 AA76004B LCD MODULE
GD90KPCB01 KEYPAD PCB
includes:
011
012
PY76003A
" "
LCD CONNECTOR
" " "
018 EVQPSR02K SWITCH, MEMO KEY
Ref Part Number Description
GD90BRDxxx MAIN PCB
004 HB76004A BUZZER
005 PY76011B RF CONNECTOR
008
009
JJ76002A
" "
BATTERY CONTACT
" "
013 PY76024A PCB CONNECTOR, MAIN-KEYPAD
014 JS8A00005 SIM HOLDER
016 JA76020A I/O CONNECTOR, 18-WAY
017 K3ZZ00200009 BACKUP BATTERY/HOLDER
019 M616LS BUTTON CELL, 3V
A
B
