Panasonic GD90 - Page 57

REPLACEMENT PARTS LIST
MCUK990801C8 Section 9 Issue 1
Service Manual – 57 – Revision 0
9 REPLACEMENT PARTS LIST
9.1 Case Parts

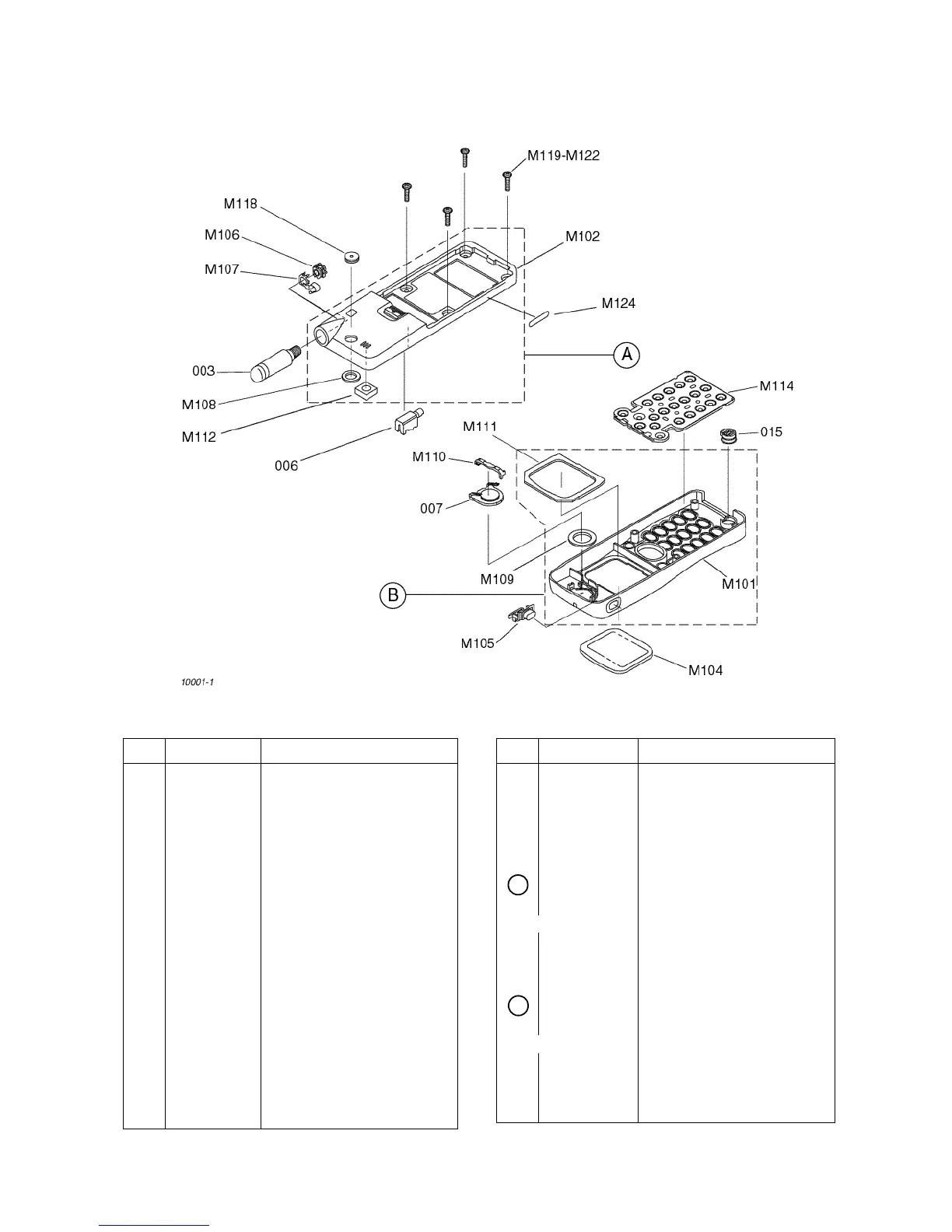

Figure 9.1: Case Parts
Ref Part Number Description
M104
"
2EA554AAAA
2EA554AABA
LCD PANEL, BLUE
LCD PANEL, GOLD
M105
"
2CA511AAAA
2CA511AABA
MEMO KEY BUTTON (Dark)
MEMO KEY BUTTON (Light)
M106 4GA518A ANTENNA NUT
M107 4FA541A ANTENNA TERMINAL
M110 2RA506A RETAINER, RECEIVER
M114
"
6TA526AAAA
6TA526AABA
KEYPAD MEMBRANE, BLUE
KEYPAD MEMBRANE, GOLD
M118
"
6RA507AAAA
6RA507AABA
RF CAP BLUE
RF CAP GOLD
M119
M120
M121
M122
3Z70054A
"
"
"
SCREW, CASE-FRONT COVER
""""
""""
""""
M123 7HA817A EQUIPMENT LABEL
M124 G5MDS002C PATENT LABEL
Ref Part Number Description
003
"
AN76031AAAA
AN76031AABA
ANTENNA, BLUE
ANTENNA, GOLD
006 BD76012A VIBRATE MOTOR ASSEMBLY
007 HH76009A RECEIVER
015 9ZA652A MICROPHONE ASSEMBLY
GD90CAS01B
GD90CAS01G
SERVICE CASE ASSY, BLUE
SERVICE CASE ASSY, GOLD
consists of:
M102 9ZA678AAxx CASE, COLOURED
M108 6HA567A RF CUSHION
M112 6HA622A BUZZER CUSHION
GD90CVR01B
GD90CVR01G
SERVICE FRONT COVER, BLUE
SERVICE FRONT COVER, GOLD
consists of:
M101 9ZA677AAxx FRONT COVER, COLOURED
M109 6HA623A RECEIVER CUSHION
M111 6HA621A LCD CUSHION
A
B
