DISASSEMBLY / REASSEMBLY INSTRUCTIONS
Issue 1 Section 4 MCUK990801C8
Revision 0 – 20 – Service Manual
4.2 Disassembly
4.2.1 Case Removal
1. Remove the battery from the back of the telephone. Remove the four case screws located inside the battery compartment.

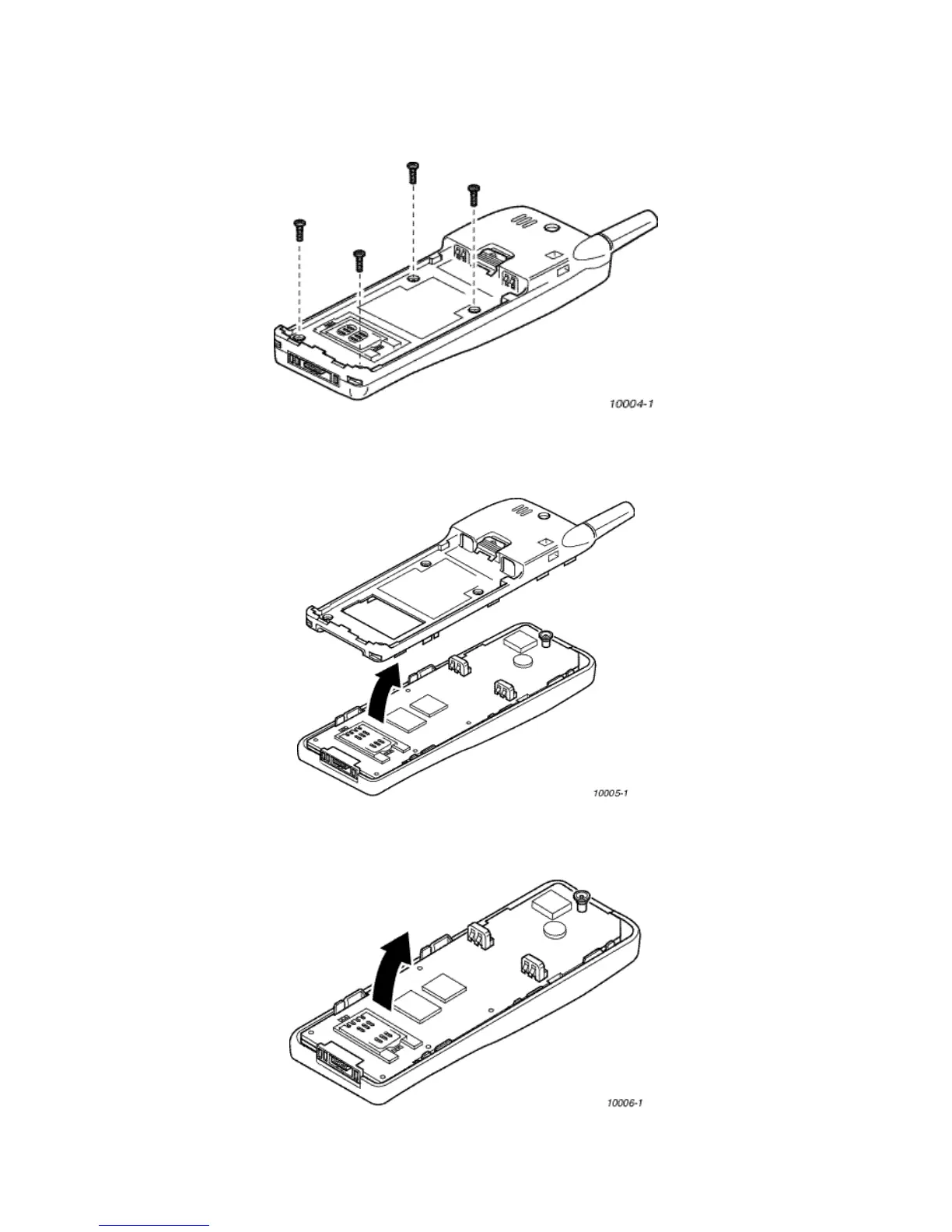

Figure 4.1: Screw removal
2. Remove the case by pulling from the connector end of the case/cover. Care must be taken when separating the case from
the cover as the retaining clips may be very stiff – if necessary, re-attach the battery to provide extra support for the case.
Figure 4.2: Case Disassembly
3. Remove the PCB assembly from the cover.
Figure 4.3: PCB Assembly Removal
