TEST AND MEASUREMENT
MCUK990801C8 Section 6 Issue 1
Service Manual – 31 – Revision 0
6. RF Adaptor
Part Number: JT00013
This unit provides an RF connection between the Unit Under Test and external test equipment. It has a lug on the back to
allow both Adaptor and Unit Under Test to be suspended from a suitable rack or channel bracket, if required.

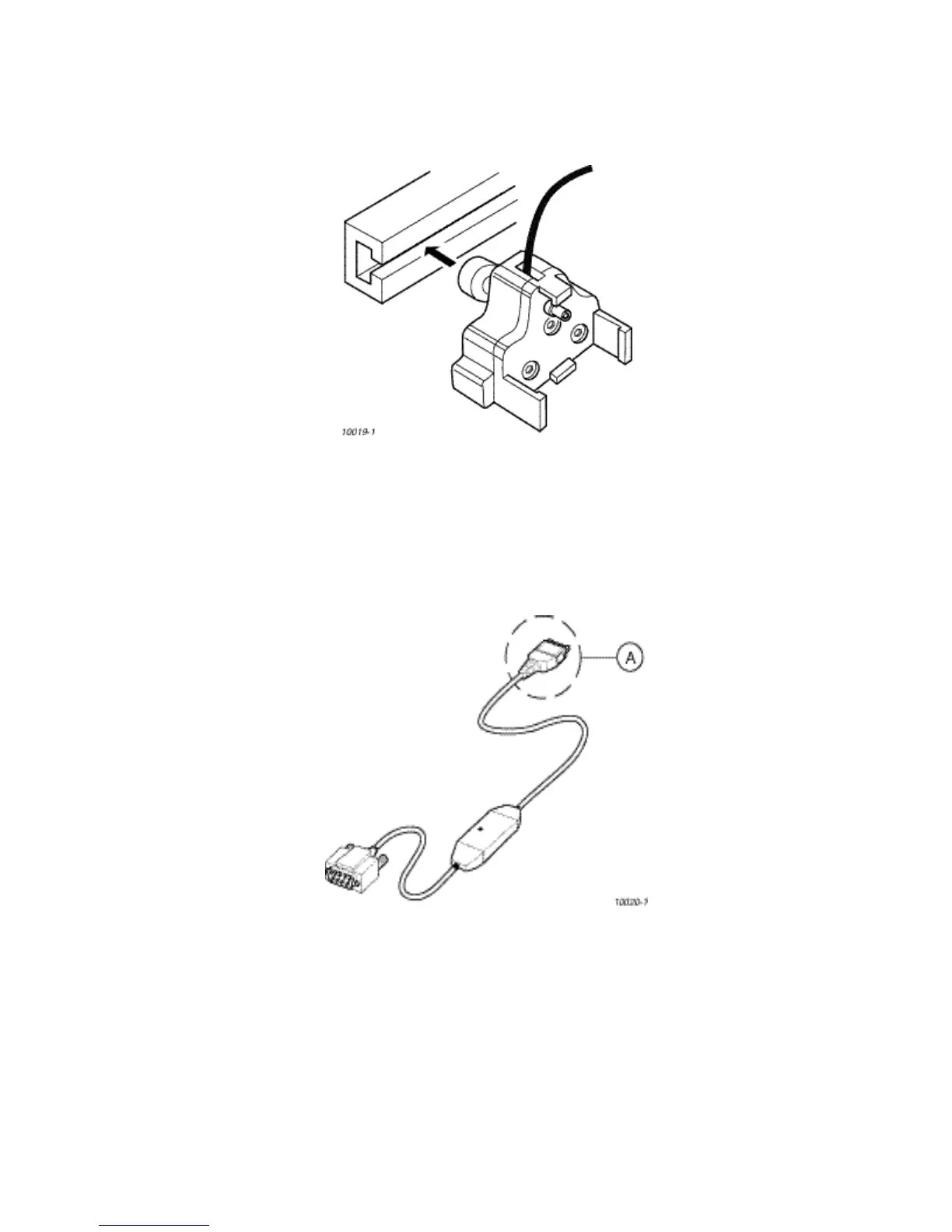

Figure 6.4: RF Adaptor
7. GSM Tester
This unit acts as a base station providing all the necessary GSM signalling requirements and also provides GSM signal
measuring facilities.
8. Interface Cable
Part Number: JT00004
The interface cable allows connection between a computer and the Unit Under Test via IFB003.
Figure 6.5: Interface Cable
9. Channel Box Software
This is the test software for the GD90 unit and should be installed onto the personal computer to be used for testing.
