TEST AND MEASUREMENT
Issue 1 Section 6 MCUK990801C8
Revision 0 – 40 – Service Manual
5. Select VIEW TRIM PL MCH, and make a note of this value.

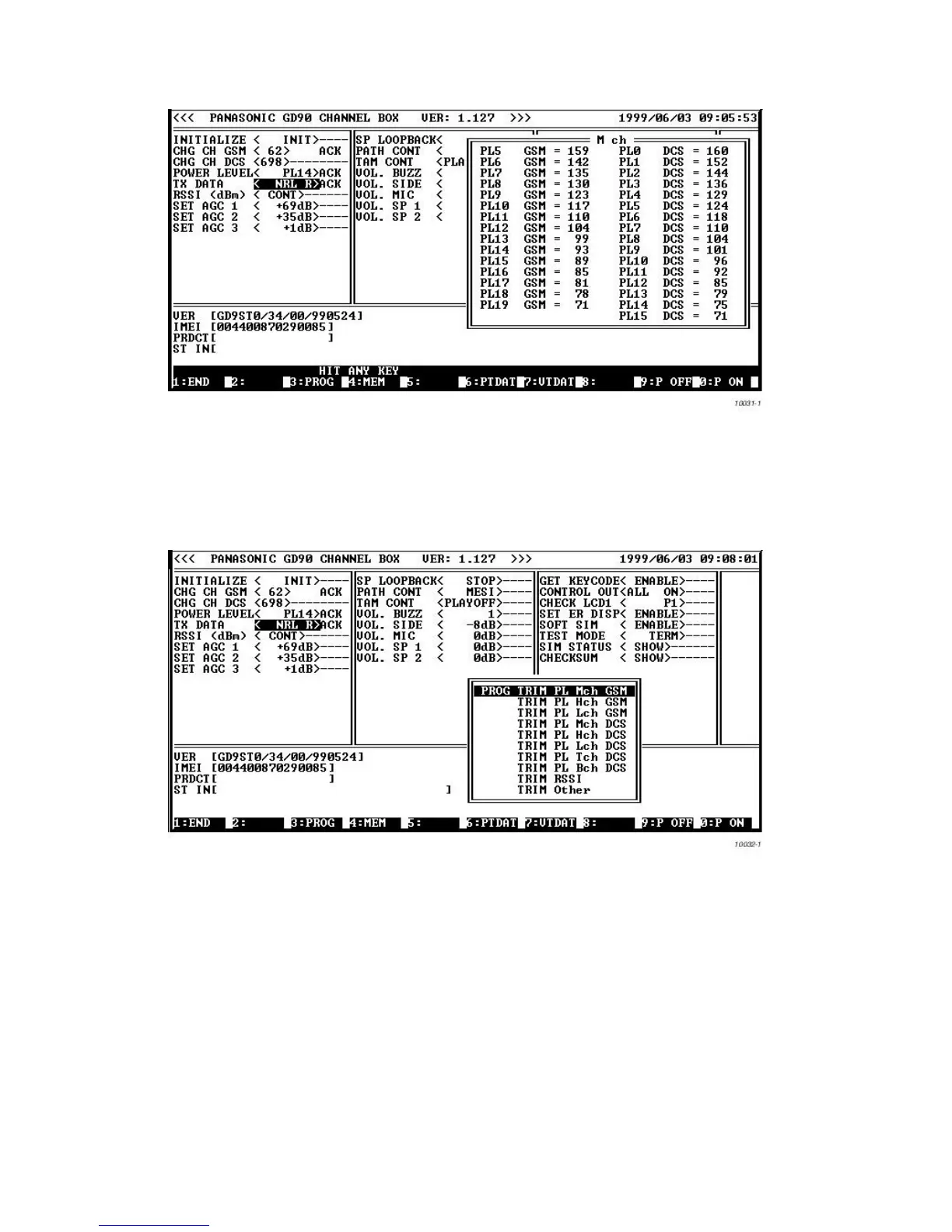

Figure 6.15: Power level view 2
6. Perform the following calculation and make a note of the result:
New Trim value = Old Trim Value + (Required Power - Measured Power) X Change per dB
(step 5) (table) (step2) (table)
Make a note of the result.
7. At the Channel box press F6 to program the TRIM for the mid-channel.
Figure 6.16: Power level selection 1
To Next Page
