38
4

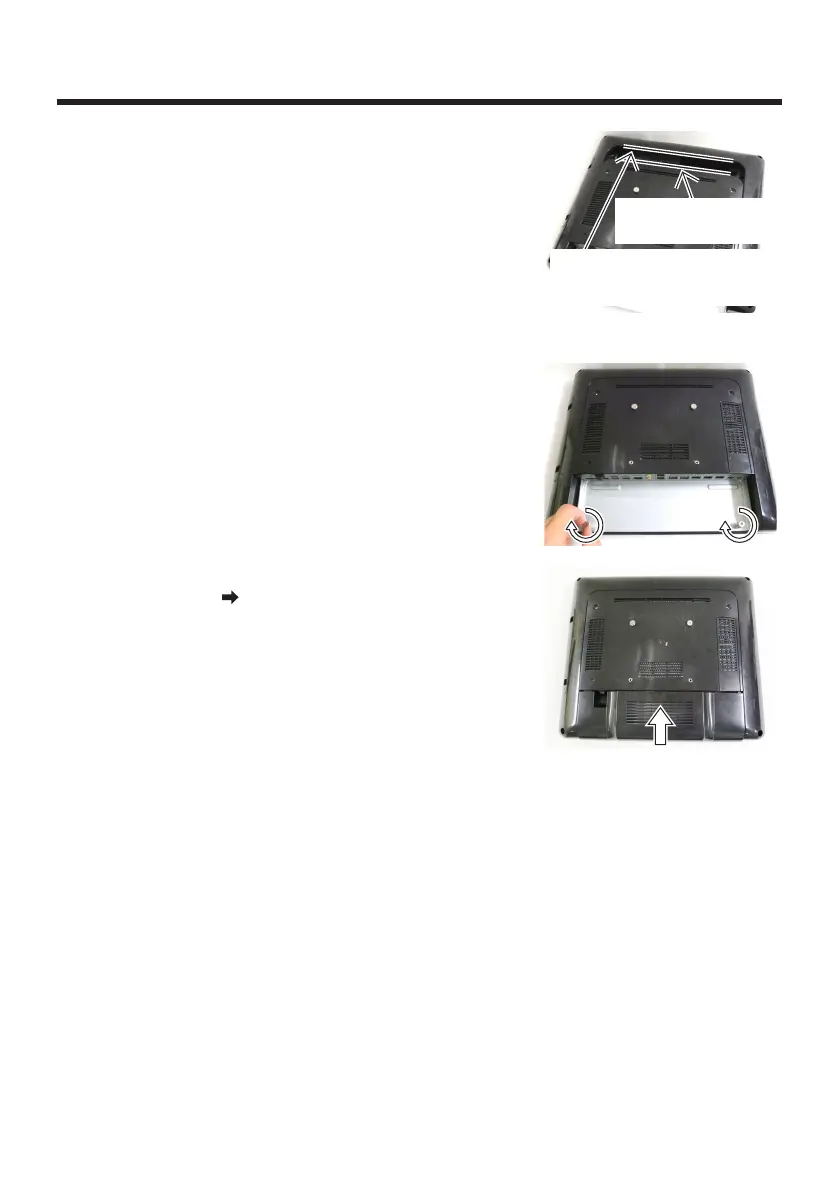

Place a new operator’s display on a flat surface;
holding the main block with both hands, have the top
edge of the main block located about 10 cm below
the top edge of the main block mounting section of
the new operator’s display; and slowly insert and
connect the connector to the connector insert guide
of the main unit.
●
Do not press the rear surface of the operator’s
display. (Doing so may damage the functionality of
the LCD or touch panel.)
Top edge of the main
block
Top edge of the main block
mounting section of an
operator’s display
5
Tighten the two thumbscrews of the main block by
hand to secure the operator’s display.
●
Be sure to use hand when tightening the
thumbscrews.
●
Make sure that no looseness is detected when
trying to move the operator’s display.
6
Follow step 3 in “AC Adapter Installation” to install
the cable cover. (
page 28)
Operator’s Display Replacement
To Next Page
