Be sure to disconnect the power cable of the main block (POS Workstation) and
confirm the power is “OFF” before the operation below.

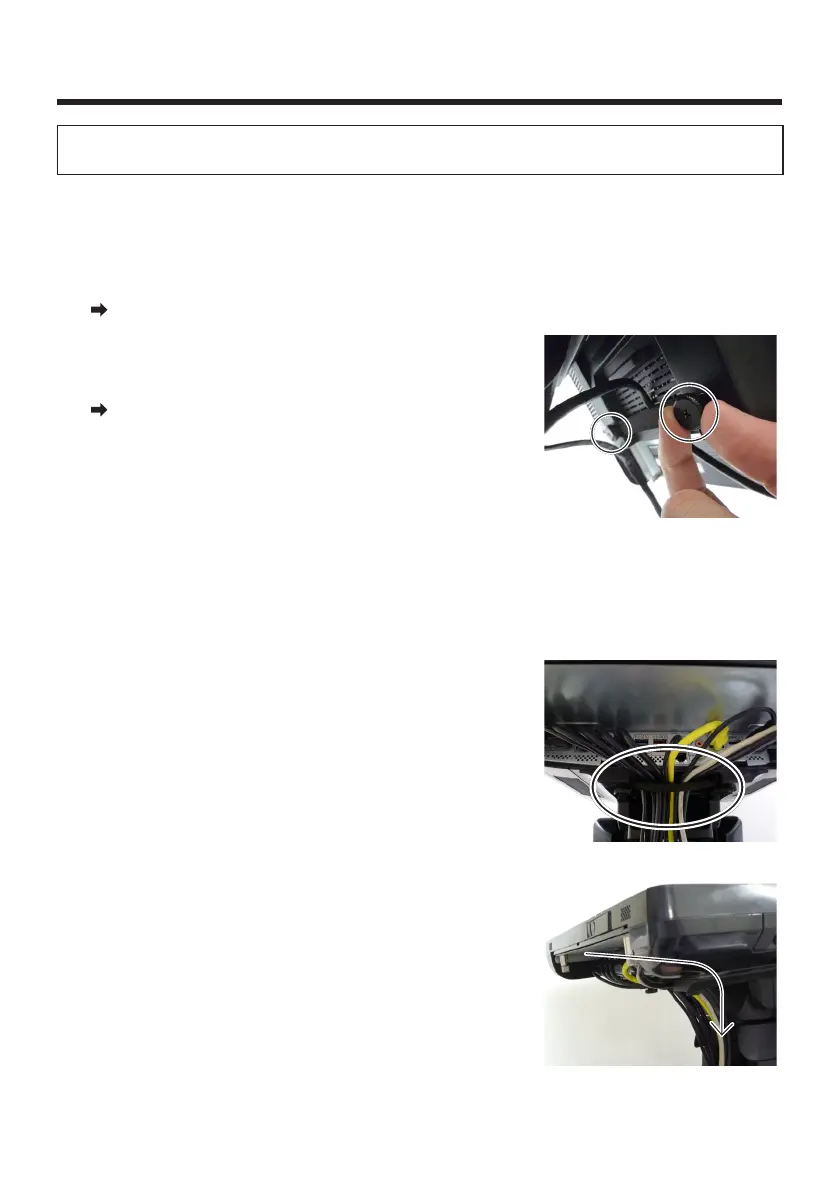

■ Cable wire routing in display unit
1
Follow step 1 in “Display Unit (Including Main Block)
Replacement /
■
When fixing parts that use VESA
mounts are installed” to remove the cable cover.
(
page 33)
2
Follow step 3 in “Display Unit (Including Main Block)
Replacement /
■
When fixing parts that use VESA
mounts are installed” to remove the cable clamps.
(
page 34)
3
Temporarily secure the DCIN cable and other cables
for connecting peripheral devices with the cable clamps
and thumbscrews you have removed in step 2.
●
Be sure to use hand when tightening the
thumbscrews.
4
Connect cables to the corresponding DCIN and
peripheral device cable ports.
To prevent the cables from interfering with your work
to secure the cable cover, adjust the length of each
cable; route them in sequence from the center of
the cable clamps toward the outside so that they
do not overlap one another; and firmly tighten the
thumbscrews.
●
Be sure to use hand when tightening the
thumbscrews.
Cable Wire Routing
