Operator’s Display Replacement
4

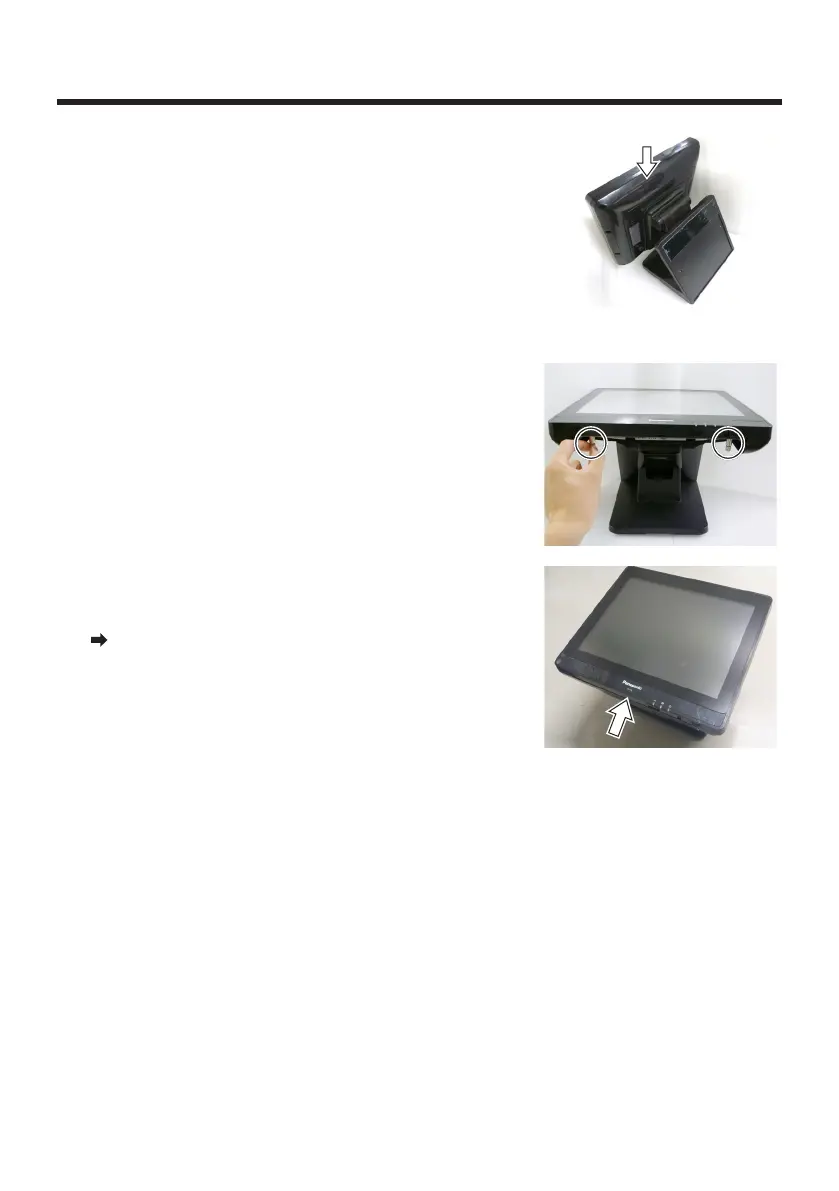

Hold a new operator’s display with both hands, have
the top edge of the main block located about 10 cm
below the top edge of the main block mounting
section of the new operator’s display, and slowly
insert and connect the connector to the connector
insert guide of the main unit.
●
Avoid pressing down the LCD screen surface
when connecting the connector.
(Failure to observe this may result in damage to
functions of the LCD or touch panel.)
5
Tighten the two thumbscrews of the main block by
hand to secure the operator’s display.
●
Be sure to use hand when tightening the
thumbscrews.
●
Make sure that no looseness is detected when
trying to move the operator’s display.
6
Follow step 8 in “Display Unit (Including Main Block)
Replacement /
■
When fixing parts that use VESA
mounts are installed” to install the cable cover.
(
page 36)
