Preparations

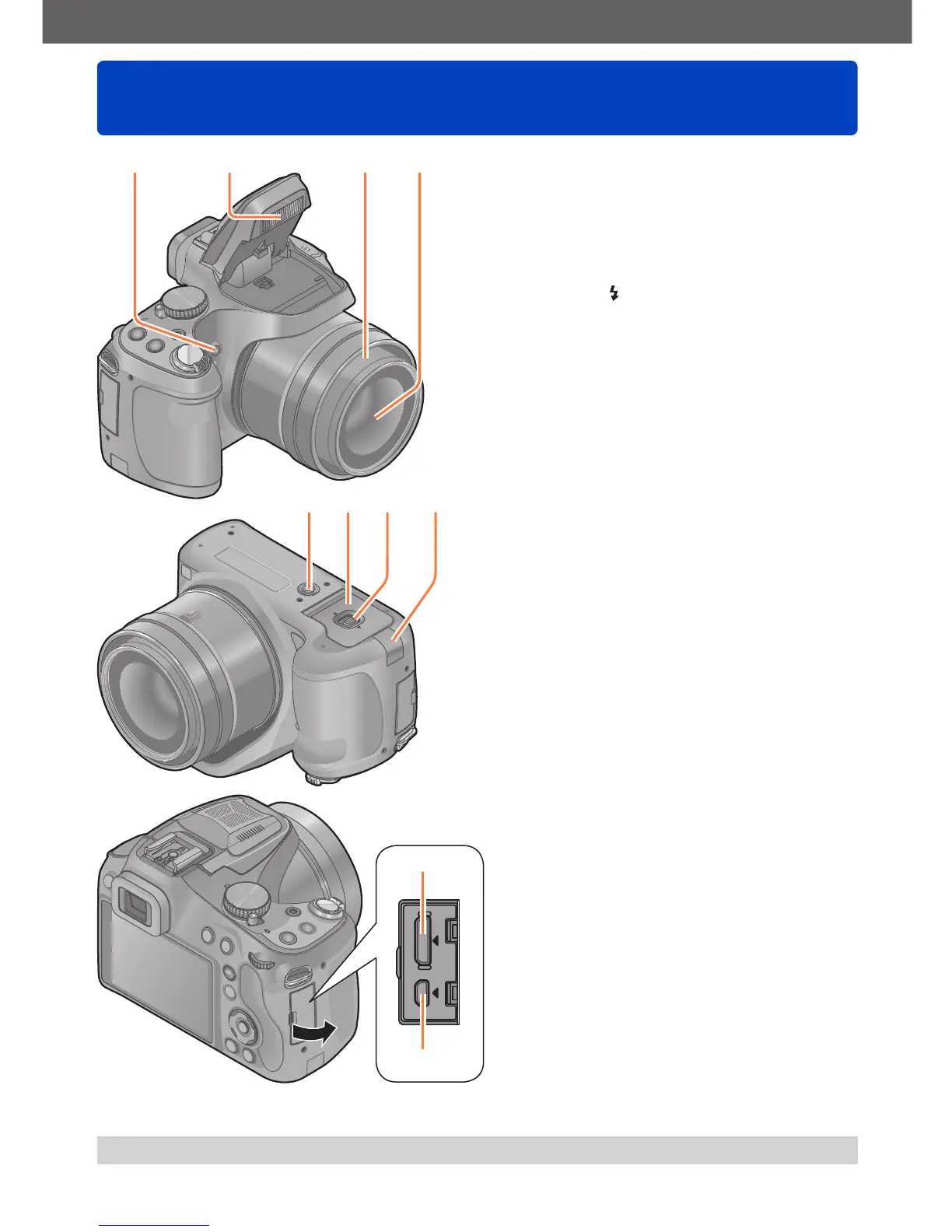

Names and Functions of Main Parts
VQT5B76- 10 -
●
The illustrations and screens in this manual may differ from the actual product.
1
Self-timer indicator (→86) /
AF Assist Lamp
(→151)
Illuminates when the self-timer is set or
when the Auto Focus is operated in dark
locations.
2
Flash (→78)
Press [ ] to open the flash.
3
Lens barrel
4
Lens (→7, 223)
1 2 3 4
5
Tripod mount (→223)
Do not attach to a tripod with a 5.5 mm
(0.22 inch) or longer screw.
Doing so may damage this unit.
6
Card/Battery door (→21, 207)
Open this door to insert and remove a
card or battery.
7
Release lever (→21)
8
DC coupler cover (→207)
Use the AC adaptor (optional) and DC
coupler (optional) specifically for this
camera.
5 6 7 8
9
[HDMI] socket (→184, 185)
Do not connect any other cables except
the HDMI mini cable. Doing so may
cause malfunction.
10
[AV OUT/DIGITAL] socket
(→184, 193, 197)
9
10
To Next Page
