Names and Functions of Main Parts
VQT5A33- 10 -

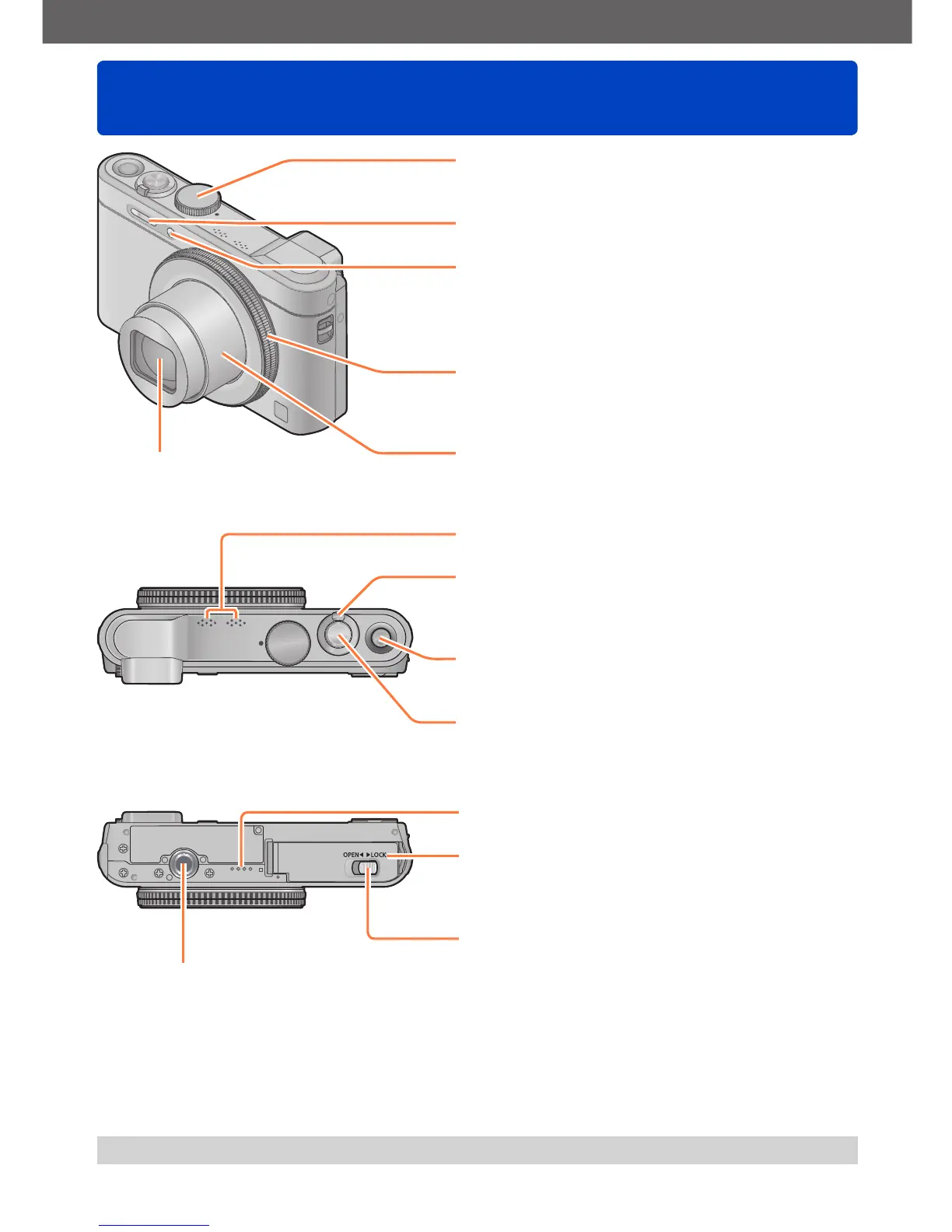

Mode dial (→25)
Use this to select the recording mode.
Flash (→75)
Self-timer indicator (→89) /
AF Assist Lamp
(→136)
Illuminates when the self-timer is set or when the
Auto Focus is operated in dark locations.
Control ring (→27)
Allows you to zoom and adjust settings when
recording.
Lens barrel
Speaker
(→55)
Card/Battery door (→14, 19)
Open this door to insert and remove a card or
battery.
Release lever (→14, 19)
Microphones (→26, 40)
Zoom lever (→71)
Use the lever to zoom in and enlarge a distant
subject.
Camera [ON/OFF] button
Use this to turn the camera on and off.
Shutter button
Lens
Tripod mount
(→281)
Do not attach to a tripod with a 5.5 mm (0.22 inch) or longer screw.
Doing so may damage this unit.
(Top)
(Bottom)
●
The illustrations and screens in this manual may differ from the actual product.
