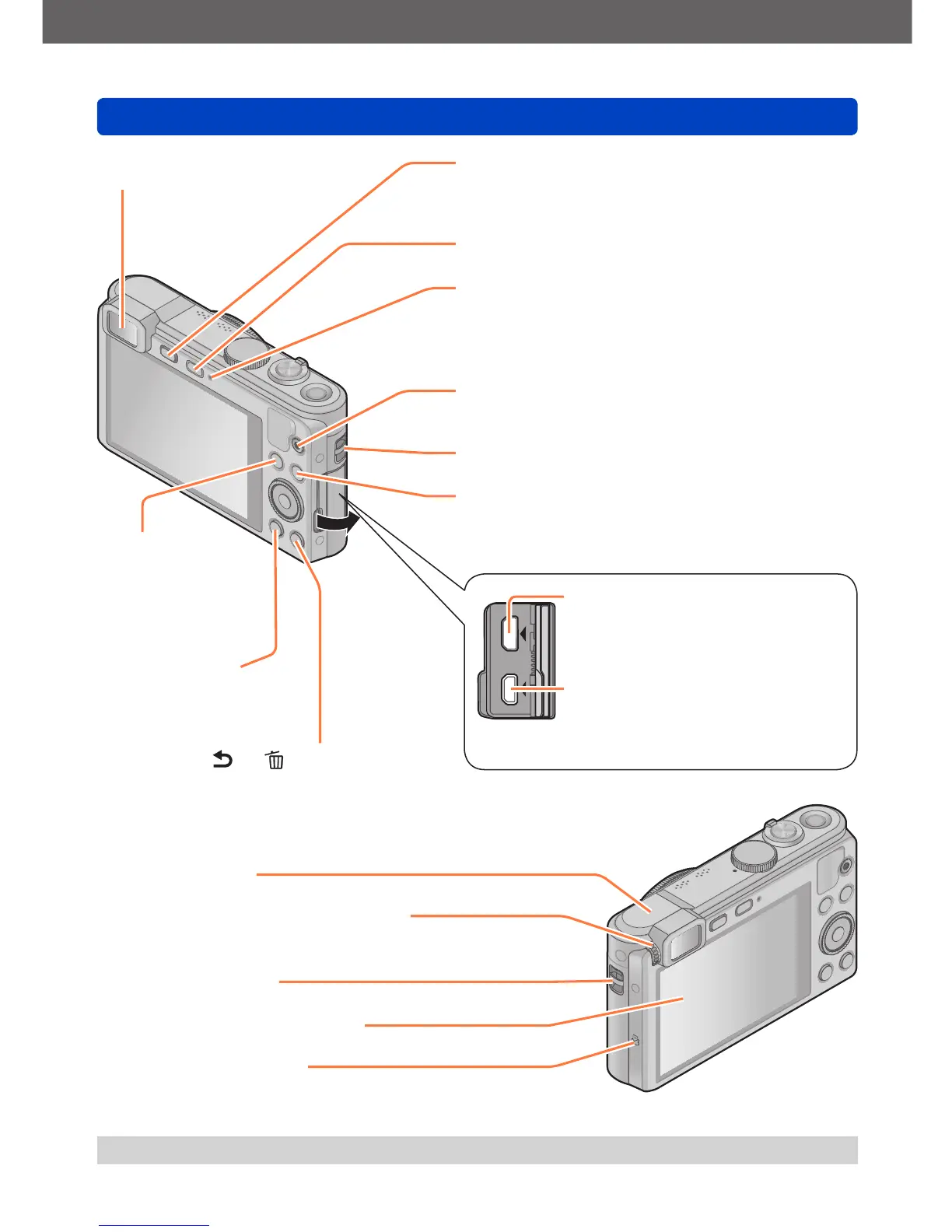

Names and Functions of Main Parts
VQT5A33
- 11 -
[HDMI] socket (→241, 243)
Do not connect any other cables
except the HDMI micro cable.
Doing so may cause malfunction.
[AV OUT/DIGITAL] socket
(→241, 252, 255)
This socket is also used when
charging the battery. (→15)
[LVF] button (→66)
Use this to switch display between viewfinder and
LCD monitor.
[Wi-Fi] button (→171)
Charging lamp (→15) /
Wi-Fi
®
connection lamp (→171)
• Charging in progress: Red
• When the Wi-Fi function is ON: Blue
Motion picture button (→40)
Record motion pictures.
Strap eyelet (→12)
Playback button
Use this to select the recording mode or playback
mode.
●
The illustrations and screens in this manual may differ from the actual product.
Viewfinder (→66)
[Fn] button
(→117)
Use this to
use registered
functions.
[Q.MENU/ ] / [ ] button
You can display the Quick Menu (→28) and
erase pictures (→50).
[DISP.] button
(→67, 142)
Use this to change
display.
[Wi-Fi] antenna
Diopter adjustment dial (→66)
Turn the dial to adjust the focus in the viewfinder.
Strap eyelet (→12)
LCD monitor (→55, 56, 259)
NFC antenna (→177)
