Panasonic Lumix DMC-LX3 User Manual

VQT1T27
118
Connecting to other equipment
You can enjoy high quality pictures and motion pictures on the TV by connecting the
camera with the TV using component cable (DMW-HDC2: optional).
Component output is output as 1080i. Connect with a TV compatible with the 1080i.
Note
•
Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
• Do not use any other cables except a genuine Panasonic component cable (DMW-HDC2;
optional).
• Audio will be output as monaural.
• When you play back a picture vertically, it may be blurry.
• Image is not displayed on the LCD monitor when the component cable is connected.
• There are some playback menus that cannot be used while the component cable is connected.
(P134)

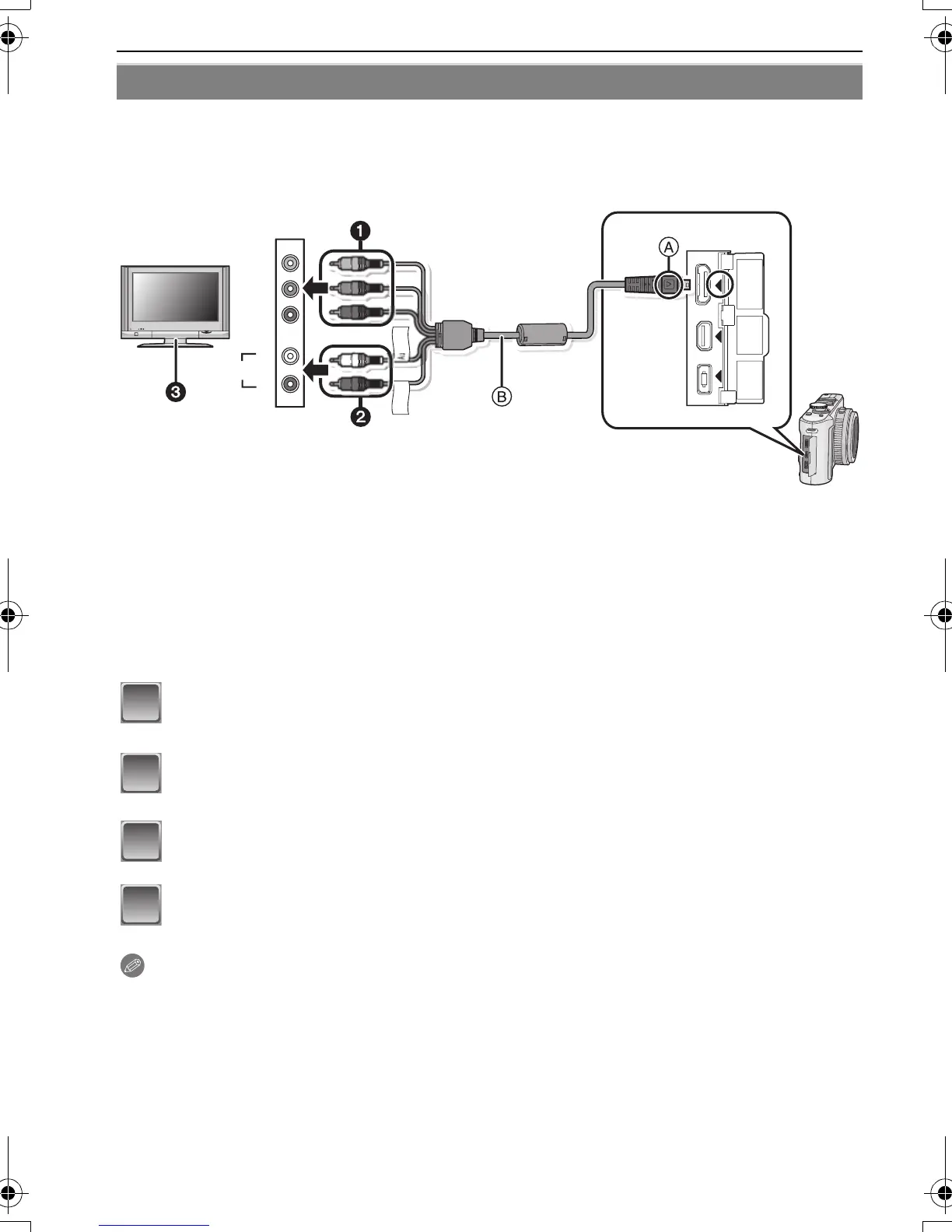

Playing back on the TV with component socket
Preparations: Turn this unit and the TV off.
1 Component Plugs: Connect the plugs to the component video input sockets on the TV
with same color. (Indication on the TV might be different.)
2 Audio Pin Plugs: to the audio input socket
3 TV with component socket
A Align the marks, and insert.
B Component cable (DMW-HDC2: optional)
•
Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause trouble.)
Connect the component cable B (DMW-HDC2; optional) to the
component input and the audio input sockets on the TV.
Connect the component cable to the [COMPONENT OUT] socket on
the camera.
Turn on the TV and switch to component input.
Turn the camera on.
• Play back the pictures.
DC IN
AV OUT/
DIGITAL
COMPONENT
OUT
Y/G
PB/B
P
R/R
AUDIO
L
R
#WFKQ 4&
#WFKQ .)
1
2
3
4
