Panasonic RS-232C

Panasonic RS-232 Protocol
for LCD Projector
6
6
2 Connection
2.1 Communication Parameters
Signal Level RS-232C
Sync Method Asynchronous
Data Speed 9600 bps
Data length 8bit
Parity None
Stop bit 1
X Parameter None
S Parameter None
Code (command) JIS X 0201 (Capital Letters Only)
The device controlling the projector must match the above parameters. There is no capability to
change the settings of the projector.
2.2 Address level
The address level of this Projector corresponds to address level 0 within the MIS standard. This unit
does not support multiple machine control from a single communication port.
Address level 0 only one projector and the address information is eliminated

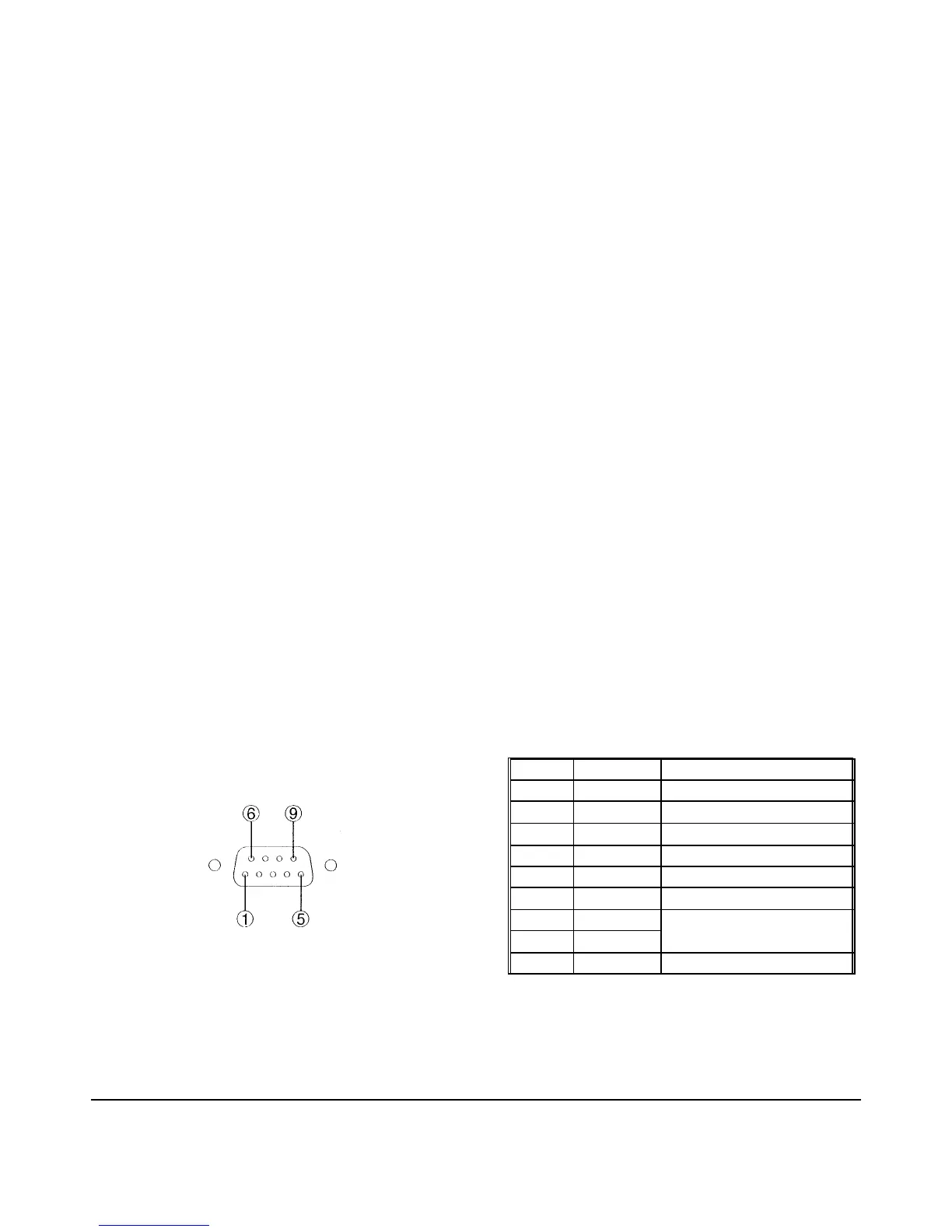

2.3 RS-232C Connection
Connector is Dsub 9pin (Female) as seen from the outside
Pin # Signal Comment
1 No connection
2 TXD
3 RXD
4 Connected Internally
5 GRD
6 No connection
7 CTS
8 RTS
Connected Internally
9 No connection
