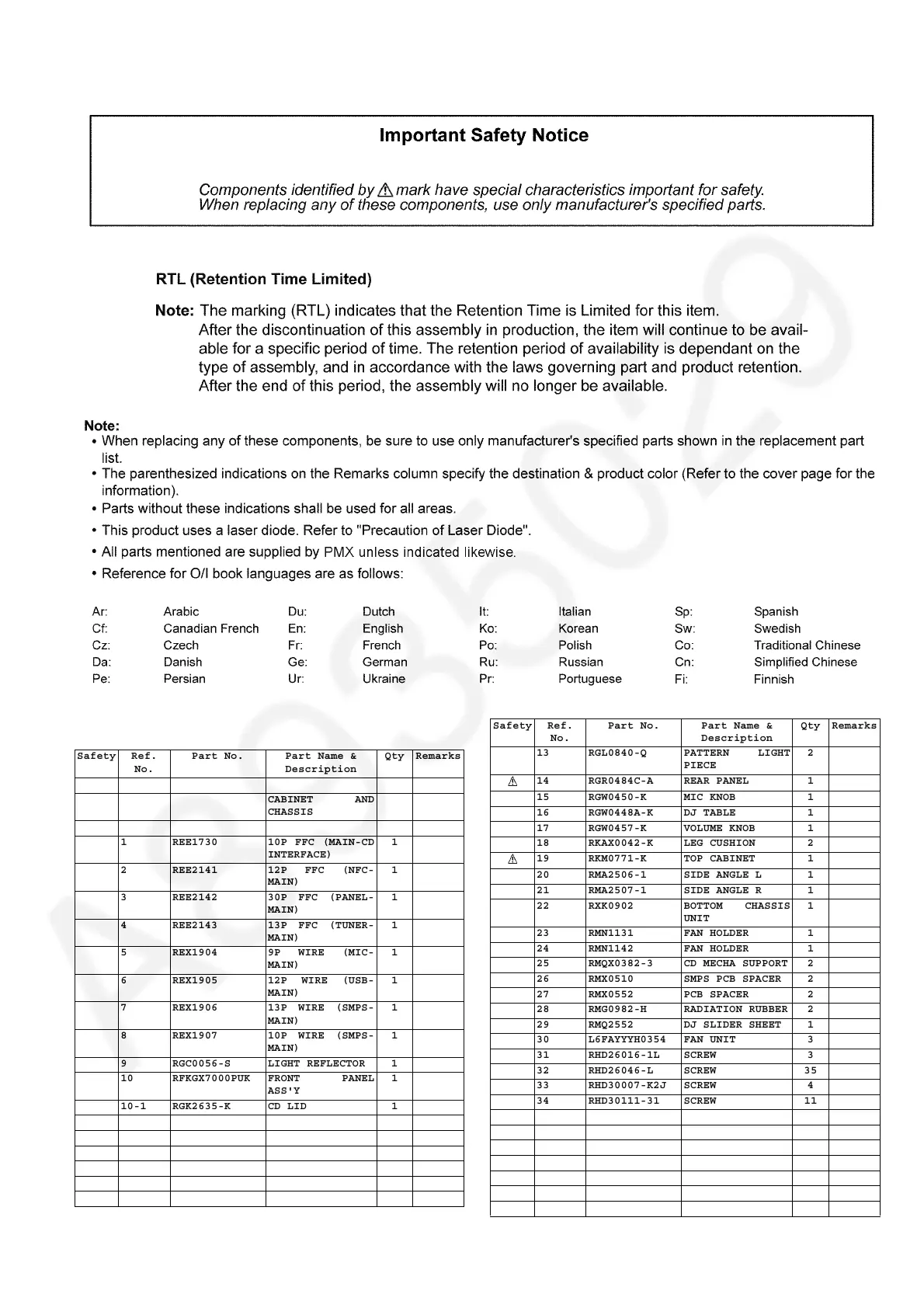

9.5. Mechanical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 REE1730 10P FFC (MAIN-CD
INTERFACE)
1
2 REE2141 12P FFC (NFC-
MAIN)
1
3 REE2142 30P FFC (PANEL-
MAIN)
1
4 REE2143 13P FFC (TUNER-
MAIN)
1
5 REX1904 9P WIRE (MIC-
MAIN)
1
6 REX1905 12P WIRE (USB-
MAIN)
1
7 REX1906 13P WIRE (SMPS-
MAIN)
1
8 REX1907 10P WIRE (SMPS-
MAIN)
1
9 RGC0056-S LIGHT REFLECTOR 1
10 RFKGX7000PUK FRONT PANEL
ASS'Y
1
10-1 RGK2635-K CD LID 1
10-2 RKAX0042-K LEG CUSHION 2
10-3 RMB0982 CD LID SPRING 1
10-4 RMGX0033A-K CD LID CUSHION 1
10-5 RGL0830-Q USB LIGHT PIECE 1
11 RGL0826-Q LIGHT WING 1
12 RGL0827-Q LIGHT ORNAMENT 1
13 RGL0840-Q PATTERN LIGHT
PIECE
2
14 RGR0484C-A REAR PANEL 1
15 RGW0450-K MIC KNOB 1
16 RGW0448A-K DJ TABLE 1
17 RGW0457-K VOLUME KNOB 1
18 RKAX0042-K LEG CUSHION 2
19 RKM0771-K TOP CABINET 1
20 RMA2506-1 SIDE ANGLE L 1
21 RMA2507-1 SIDE ANGLE R 1
22 RXK0902 BOTTOM CHASSIS
UNIT
1
23 RMN1131 FAN HOLDER 1
24 RMN1142 FAN HOLDER 1
25 RMQX0382-3 CD MECHA SUPPORT 2
26 RMX0510 SMPS PCB SPACER 2
27 RMX0552 PCB SPACER 2
28 RMG0982-H RADIATION RUBBER 2
29 RMQ2552 DJ SLIDER SHEET 1
30 L6FAYYYH0354 FAN UNIT 3
31 RHD26016-1L SCREW 3
32 RHD26046-L SCREW 35
33 RHD30007-K2J SCREW 4
34 RHD30111-31 SCREW 11
35 RHD30119-S SCREW 13
36 RHDX031008 SCREW 2
37 RHDX30005-J SCREW 3
38 XTB4+10AFJ SCREW 2
39 RHD26078 SCREW 3
41 RMN1049-1 FL HOLDER 1
42 RMN1085-1 IR HOLDER 1
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
To Next Page
