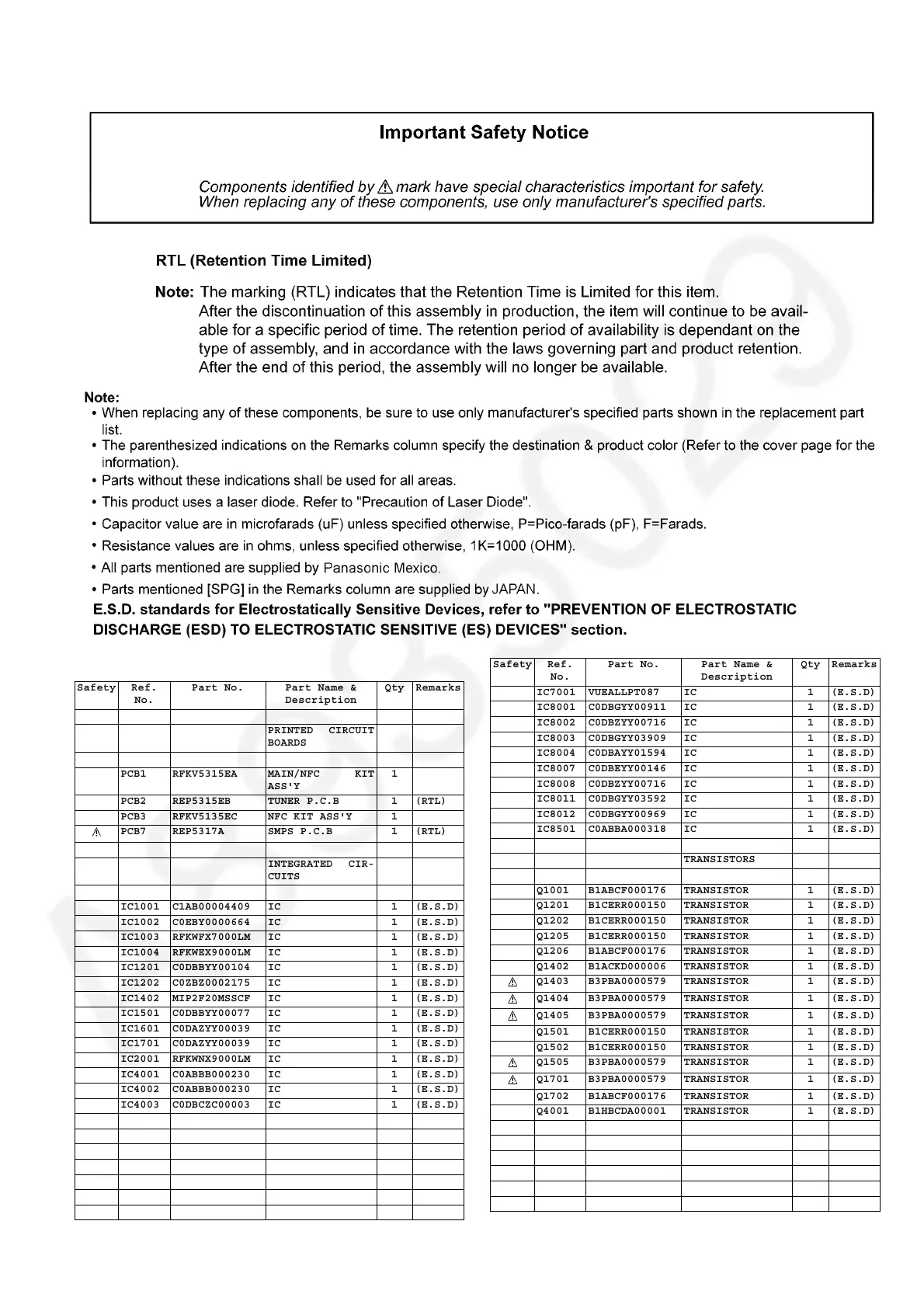

9.6. Electrical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
PRINTED CIRCUIT
BOARDS
PCB1 RFKV5315EA MAIN/NFC KIT
ASS'Y
1
PCB2 REP5315EB TUNER P.C.B 1 (RTL)
PCB3 RFKV5135EC NFC KIT ASS'Y 1
PCB7 REP5317A SMPS P.C.B 1 (RTL)
INTEGRATED CIR-
CUITS
IC1001 C1AB00004409 IC 1 (E.S.D)
IC1002 C0EBY0000664 IC 1 (E.S.D)
IC1003 RFKWFX7000LM IC 1 (E.S.D)
IC1004 RFKWEX9000LM IC 1 (E.S.D)
IC1201 C0DBBYY00104 IC 1 (E.S.D)
IC1202 C0ZBZ0002175 IC 1 (E.S.D)
IC1402 MIP2F20MSSCF IC 1 (E.S.D)
IC1501 C0DBBYY00077 IC 1 (E.S.D)
IC1601 C0DAZYY00039 IC 1 (E.S.D)
IC1701 C0DAZYY00039 IC 1 (E.S.D)
IC2001 RFKWNX9000LM IC 1 (E.S.D)
IC4001 C0ABBB000230 IC 1 (E.S.D)
IC4002 C0ABBB000230 IC 1 (E.S.D)
IC4003 C0DBCZC00003 IC 1 (E.S.D)
IC4005 VUEALLPT090 IC 1 (E.S.D)
IC4202 C0ZBZ0001673 IC 1 (E.S.D)
IC4203 C0ZBZ0001675 IC 1 (E.S.D)
IC4501 C0ZBZ0001673 IC 1 (E.S.D)
IC4502 C0ZBZ0001675 IC 1 (E.S.D)
IC4901 C0JBAR000367 IC 1 (E.S.D)
IC5001 C0GBY0000213 IC 1 (E.S.D)
IC7001 VUEALLPT087 IC 1 (E.S.D)
IC8001 C0DBGYY00911 IC 1 (E.S.D)
IC8002 C0DBZYY00716 IC 1 (E.S.D)
IC8003 C0DBGYY03909 IC 1 (E.S.D)
IC8004 C0DBAYY01594 IC 1 (E.S.D)
IC8007 C0DBEYY00146 IC 1 (E.S.D)
IC8008 C0DBZYY00716 IC 1 (E.S.D)
IC8011 C0DBGYY03592 IC 1 (E.S.D)
IC8012 C0DBGYY00969 IC 1 (E.S.D)
IC8501 C0ABBA000318 IC 1 (E.S.D)
TRANSISTORS
Q1001 B1ABCF000176 TRANSISTOR 1 (E.S.D)
Q1201 B1CERR000150 TRANSISTOR 1 (E.S.D)
Q1202 B1CERR000150 TRANSISTOR 1 (E.S.D)
Q1205 B1CERR000150 TRANSISTOR 1 (E.S.D)
Q1206 B1ABCF000176 TRANSISTOR 1 (E.S.D)
Q1402 B1ACKD000006 TRANSISTOR 1 (E.S.D)
Q1403 B3PBA0000579 TRANSISTOR 1 (E.S.D)
Q1404 B3PBA0000579 TRANSISTOR 1 (E.S.D)
Q1405 B3PBA0000579 TRANSISTOR 1 (E.S.D)
Q1501 B1CERR000150 TRANSISTOR 1 (E.S.D)
Q1502 B1CERR000150 TRANSISTOR 1 (E.S.D)
Q1505 B3PBA0000579 TRANSISTOR 1 (E.S.D)
Q1701 B3PBA0000579 TRANSISTOR 1 (E.S.D)
Q1702 B1ABCF000176 TRANSISTOR 1 (E.S.D)
Q4001 B1HBCDA00001 TRANSISTOR 1 (E.S.D)
Q4002 B1HBCDA00001 TRANSISTOR 1 (E.S.D)
Q4003 B1ABDF000026 TRANSISTOR 1 (E.S.D)
Q4004 B1ABDF000026 TRANSISTOR 1 (E.S.D)
Q4201 B1CBRK000001 TRANSISTOR 1 (E.S.D)
Q4202 B1CBRK000001 TRANSISTOR 1 (E.S.D)
Q4203 B1CBRK000001 TRANSISTOR 1 (E.S.D)
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
