2.5. Safety Parts Information

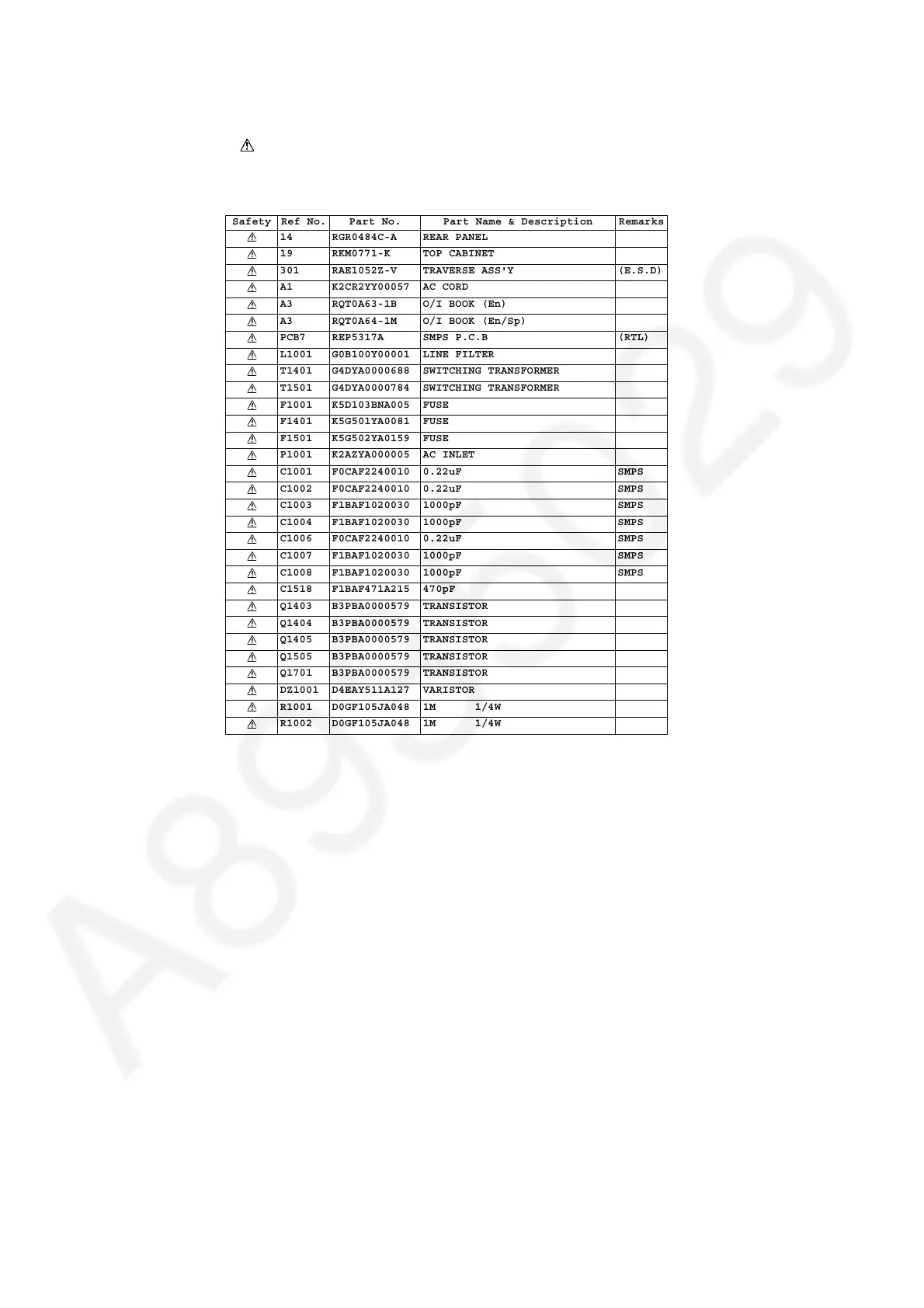

Safety Parts List:
There are special components used in this equipment which are important for safety.
These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these
critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the
original design without permission of manufacturer.
Safety Ref No. Part No. Part Name & Description Remarks
14 RGR0484C-A REAR PANEL
19 RKM0771-K TOP CABINET
301 RAE1052Z-V TRAVERSE ASS'Y (E.S.D)
A1 K2CR2YY00057 AC CORD
A3 RQT0A63-1B O/I BOOK (En)
A3 RQT0A64-1M O/I BOOK (En/Sp)
PCB7 REP5317A SMPS P.C.B (RTL)
L1001 G0B100Y00001 LINE FILTER
T1401 G4DYA0000688 SWITCHING TRANSFORMER
T1501 G4DYA0000784 SWITCHING TRANSFORMER
F1001 K5D103BNA005 FUSE
F1401 K5G501YA0081 FUSE
F1501 K5G502YA0159 FUSE
P1001 K2AZYA000005 AC INLET
C1001 F0CAF2240010 0.22uF SMPS
C1002 F0CAF2240010 0.22uF SMPS
C1003 F1BAF1020030 1000pF SMPS
C1004 F1BAF1020030 1000pF SMPS
C1006 F0CAF2240010 0.22uF SMPS
C1007 F1BAF1020030 1000pF SMPS
C1008 F1BAF1020030 1000pF SMPS
C1518 F1BAF471A215 470pF
Q1403 B3PBA0000579 TRANSISTOR
Q1404 B3PBA0000579 TRANSISTOR
Q1405 B3PBA0000579 TRANSISTOR
Q1505 B3PBA0000579 TRANSISTOR
Q1701 B3PBA0000579 TRANSISTOR
DZ1001 D4EAY511A127 VARISTOR
R1001 D0GF105JA048 1M 1/4W
R1002 D0GF105JA048 1M 1/4W
