Panasonic SA-PM33EE - Disassembly of Side Panel L & R; Disassembly of Top Cabinet Unit

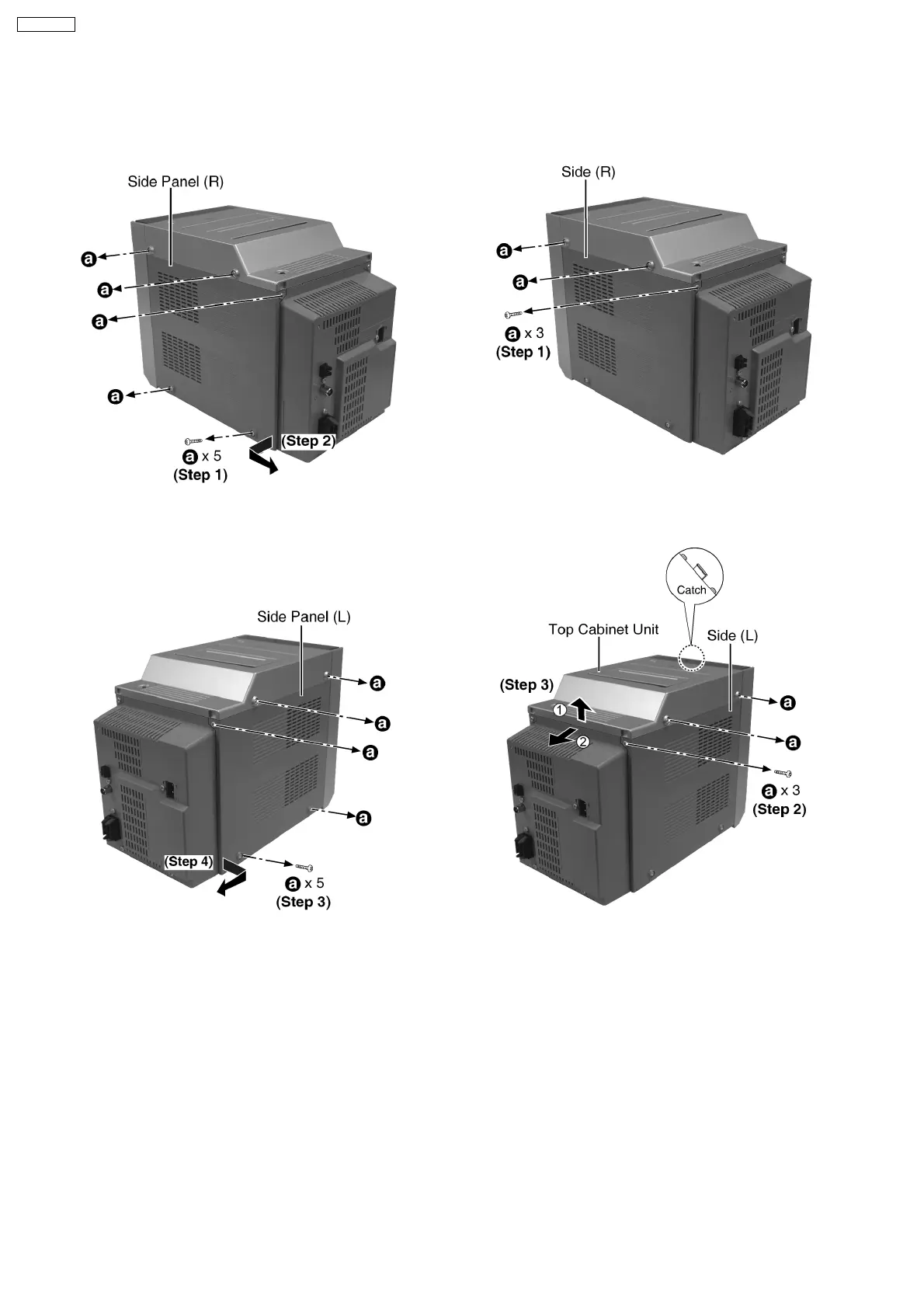

9.4. Disassembly of Side Panel L &
R
· Disassembly of Side Panel (R)
Step 1: Remove 5 screws.
Step 2: Remove the side panel (R) as arrow shown.
· Disassembly of Side Panel (L)
Step 3: Remove 5 screws.
Step 4: Remove the side panel (L) as arrow shown.
9.5. Disassembly of Top Cabinet
Unit
Step 1: Remove 3 screws.
Step 2: Remove 3 screws.
Step 3: Lift up the top cabinet unit, push backward
as arrow shown and flip top cabinet unit sideway.
(Be careful of the catch)
22
SA-PM33EE
