Panasonic SA-PM33EE - Disassembly of Rear Panel; Disassembly of Tuner Pack; Disassembly of Main P.C.B

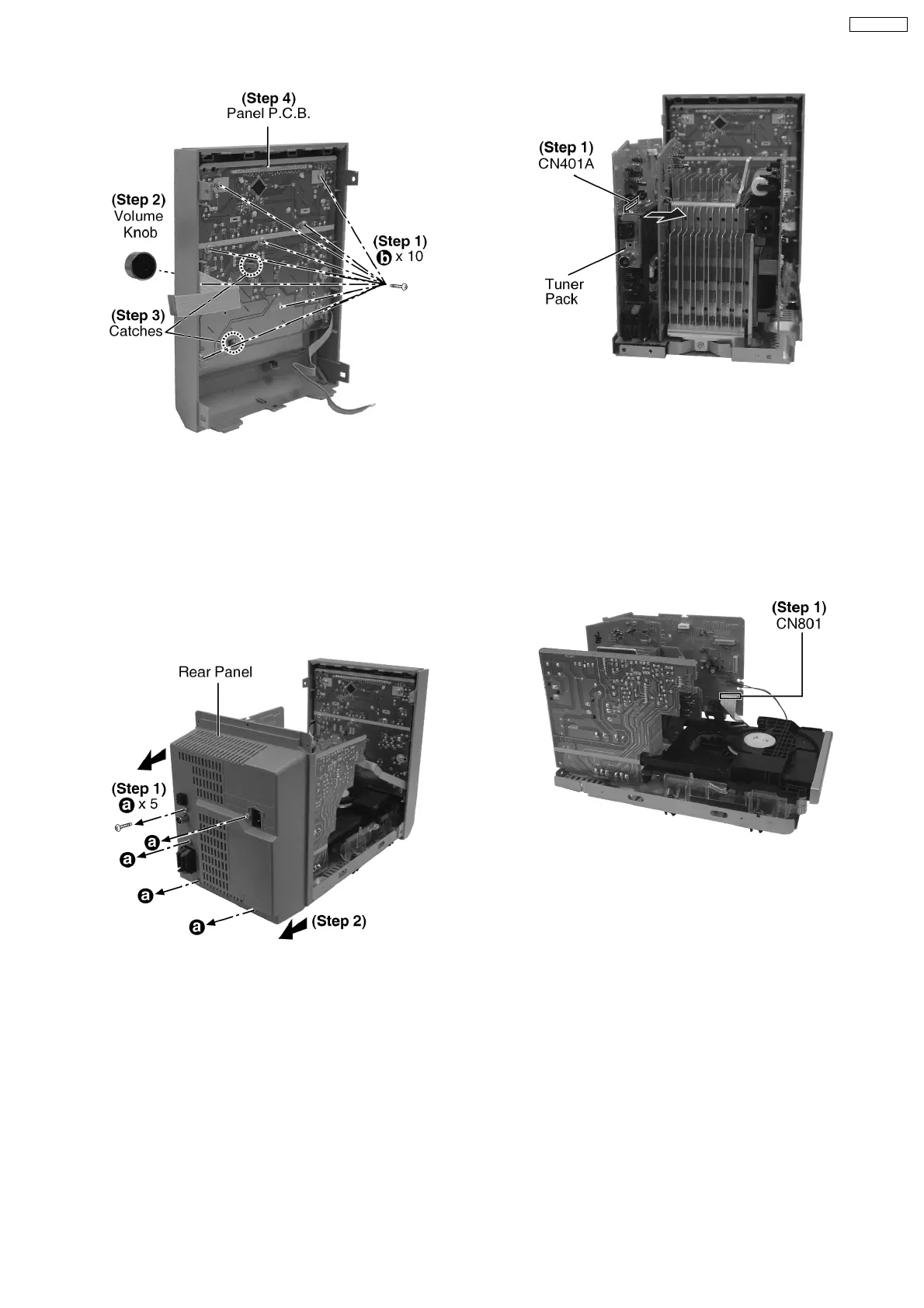

Step 1: Remove 10 screws.
Step 2: Remove the Volume Knob.
Step 3: Release 2 catches.
Step 4: Remove the Panel P.C.B.
9.10. Disassembly of Rear Panel
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 3) - (Step 6) of Item 9.5.
Step 1: Remove 5 screws.
Step 2: Remove the Rear Panel as arrow shown.
9.11. Disassembly of Tuner Pack
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 3) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (Step 2) of Item 9.10.
Step 1: Detach the connector CN401A and remove
the tuner pack as arrow shown.
9.12. Disassembly of Main P.C.B.
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 1) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (step 4) of Item 9.8.
· Follow the (Step 1) - (step 2) of Item 9.10.
Step 1: Detach the FFC CN801.
25
SA-PM33EE
