Panasonic SA-PM33EE - CD Mechanism Disassembly

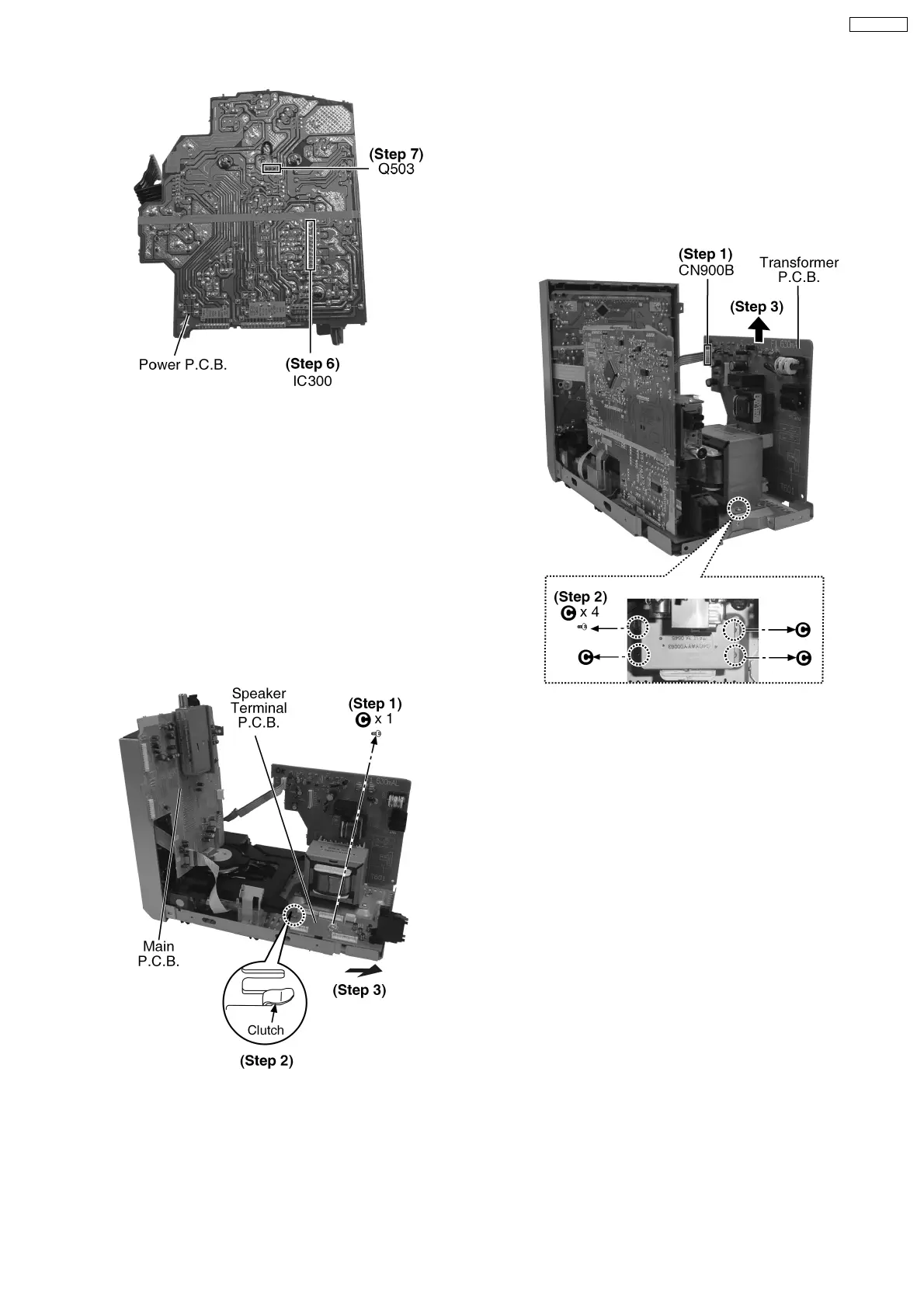

Step 6: Unsolder the terminal of Power Amp IC
(IC300) and replace the component.
Step 7: Unsolder the terminal of Transistor (Q503)
and replace the component.
9.14. Disassembly of Speaker
Terminal P.C.B.
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 4) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (step 2) of Item 9.10.
· Follow the (Step 3) of Item 9.12.
· Follow the (Step 1) - (step 4) of Item 9.13.
Step 1: Remove 1 screw.
Step 2: Release the clutch.
Step 3: Remove the Speaker Terminal P.C.B. as
arrow shown.
9.15. Disassembly of Transformer
P.C.B.
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 4) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (Step 2) of Item 9.10.
· Follow the (Step 1) - (Step 4) of Item 9.13.
Step 1: Detach the connector CN900B.
Step 2: Remove 4 screws.
Step 3: Remove the Transformer P.C.B. as arrow
shown.
9.16. Disassembly of CD
Mechanism
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 4) - (step 6) of Item 9.5.
· Follow the (Step 1) - (step 4) of Item 9.8.
· Follow the (Step 1) - (step 2) of Item 9.10.
· Follow the (Step 1) - (step 4) of Item 9.12.
27
SA-PM33EE
