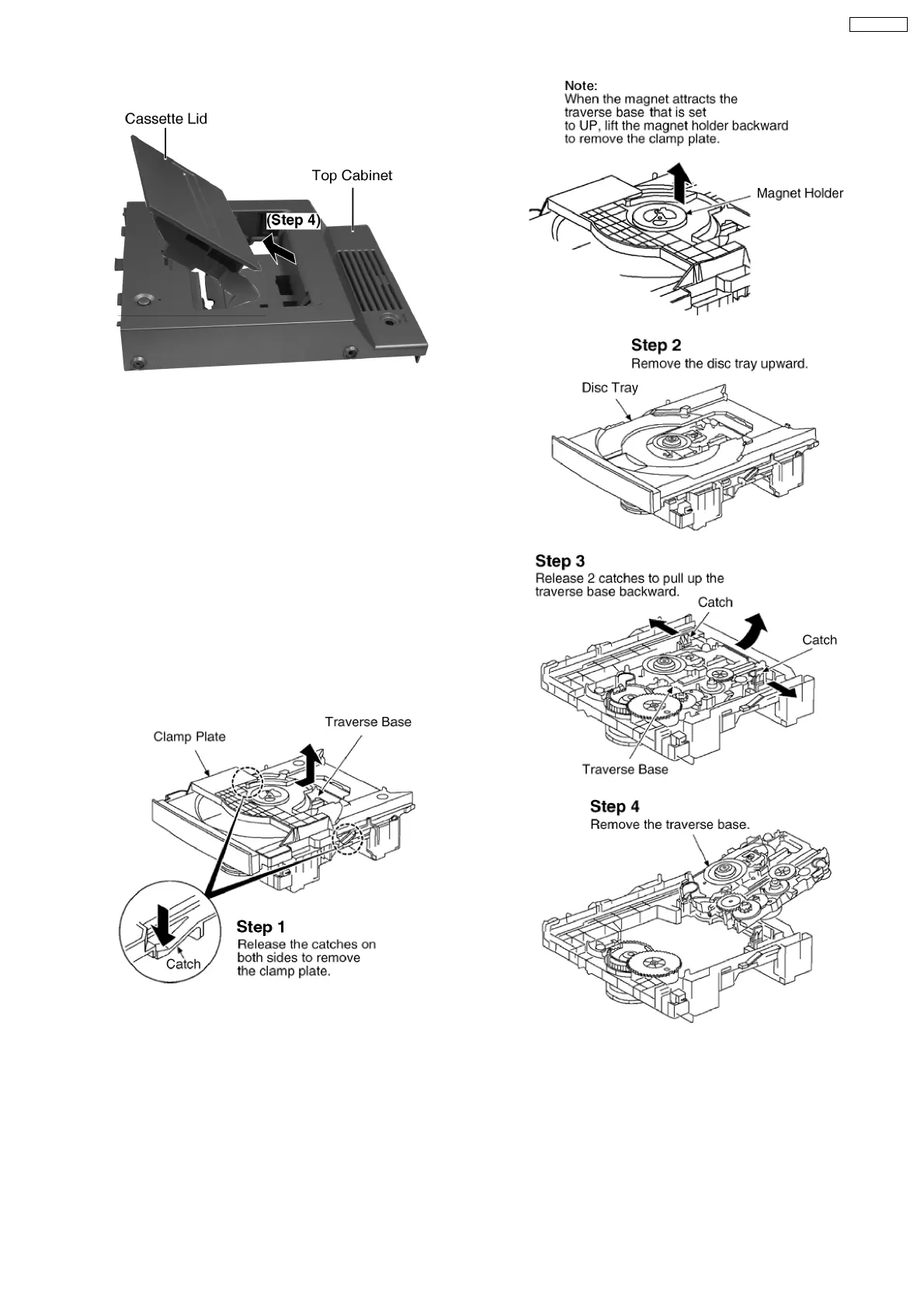

Step 4: Remove the Cassette Lid as arrows shown.
9.18. Disassembly of Traverse Unit,
Driving Gear, and Cam Gear
(CD Mechanism Unit)
9.18.1. Disassembly of the Traverse Unit
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 4) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (Step 4) of Item 9.8.
· Follow the (Step 1) - (Step 2) of Item 9.10 .
· Follow the (Step 1) - (Step 4) of Item 9.12.
· Follow the (Step 1) - (Step 3) of Item 9.16.
· Disassembly of gears drive
29
SA-PM33EE
