Panasonic SA-PM33EE - Pinch Roller and Head Block Disassembly; Motor and Belt Disassembly

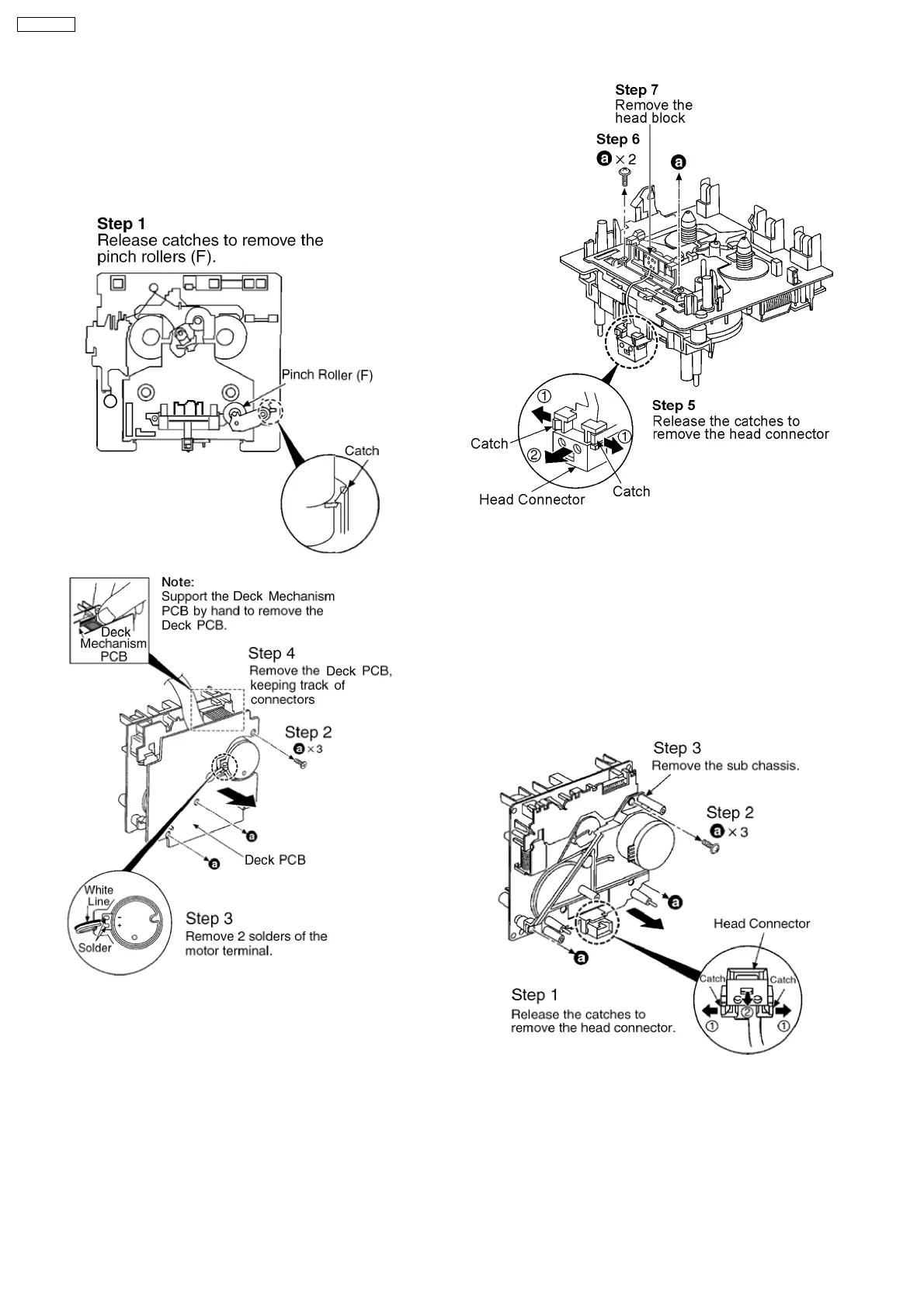

9.21. Disassembly of Pinch Roller
and Head Block (Deck
Mechanism Unit)
· Follow the (Step 1) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (Step 6) of Item 9.6.
9.22. Disassembly of Motor,
Capstan Belt A, Capstan Belt
B, and Winding Belt (Deck
Mechanism Unit)
· Follow the (Step 1) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (Step 6) of Item 9.6.
· Follow the (Step 1) - (Step 4) of Item 9.21.
34
SA-PM33EE
