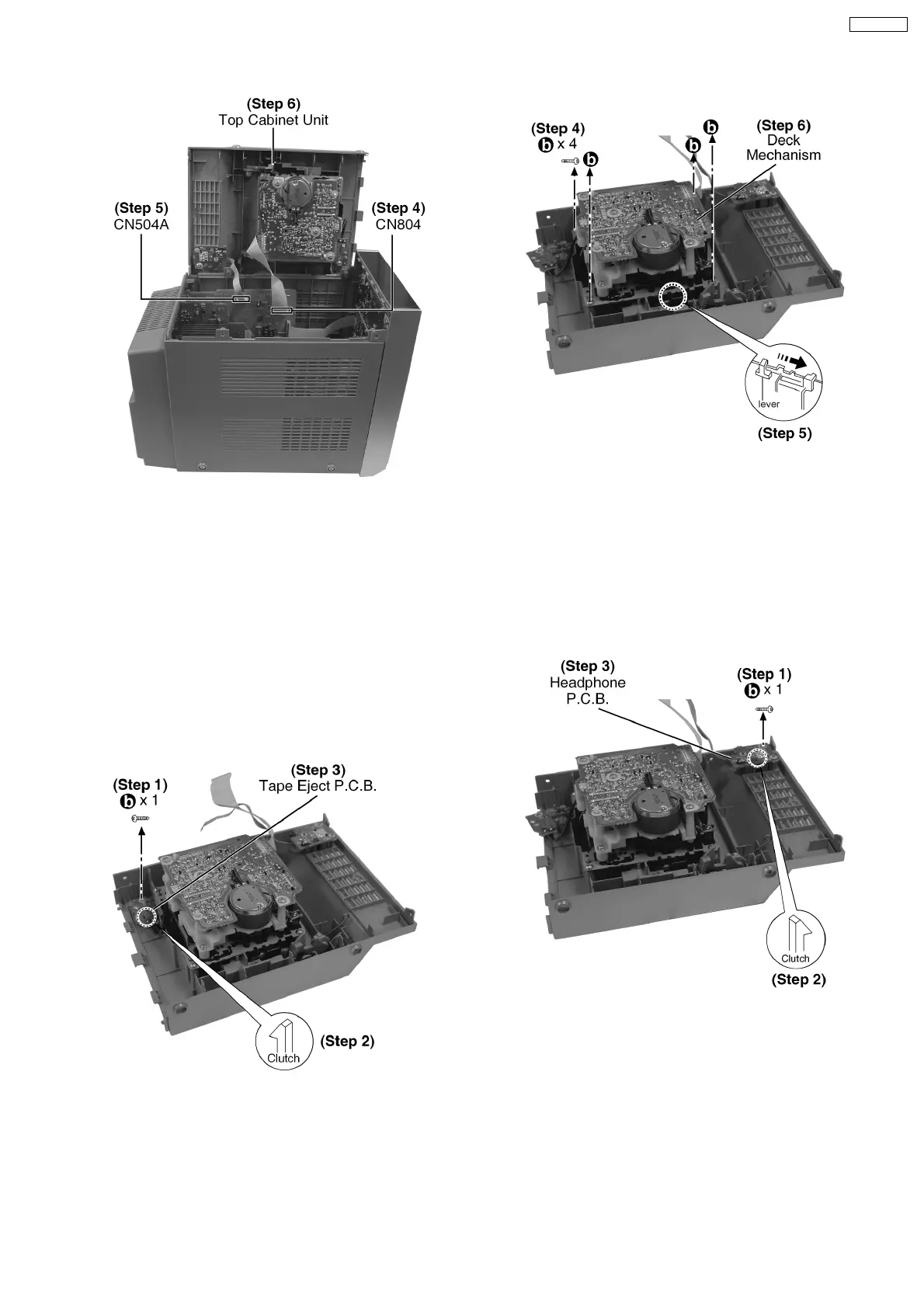

Step 4: Disconnect FFC cable (CN804).
Step 5: Detach connector (CN504A).
Step 6: Remove top cabinet unit.
9.6. Disassembly of Deck
Mechanism and Tape Eject
P.C.B.
· Follow the (Step 1) - (Step 6) of Item 9.5.
· Disassembly of Tape Eject P.C.B.
Step 1: Remove 1 screw.
Step 2: Release the clutch.
Step 3: Remove the Tape Eject P.C.B.
· Disassembly of Deck Mechanism.
Step 4: Remove 4 screws.
Step 5: Push the lever as arrow shown to open the
cassette lid.
Step 6: Remove the Deck Mechanism.
9.7. Disassembly of Headphone
P.C.B.
· Follow the (Step 1) - (Step 6) of Item 9.5.
Step 1: Remove 1 screw.
Step 2: Release the clutch.
Step 3: Remove the Headphone P.C.B.
9.8. Disassembly of Front Panel
· Follow the (Step 1) - (Step 4) of Item 9.4.
· Follow the (Step 3) - (Step 6) of Item 9.5.
