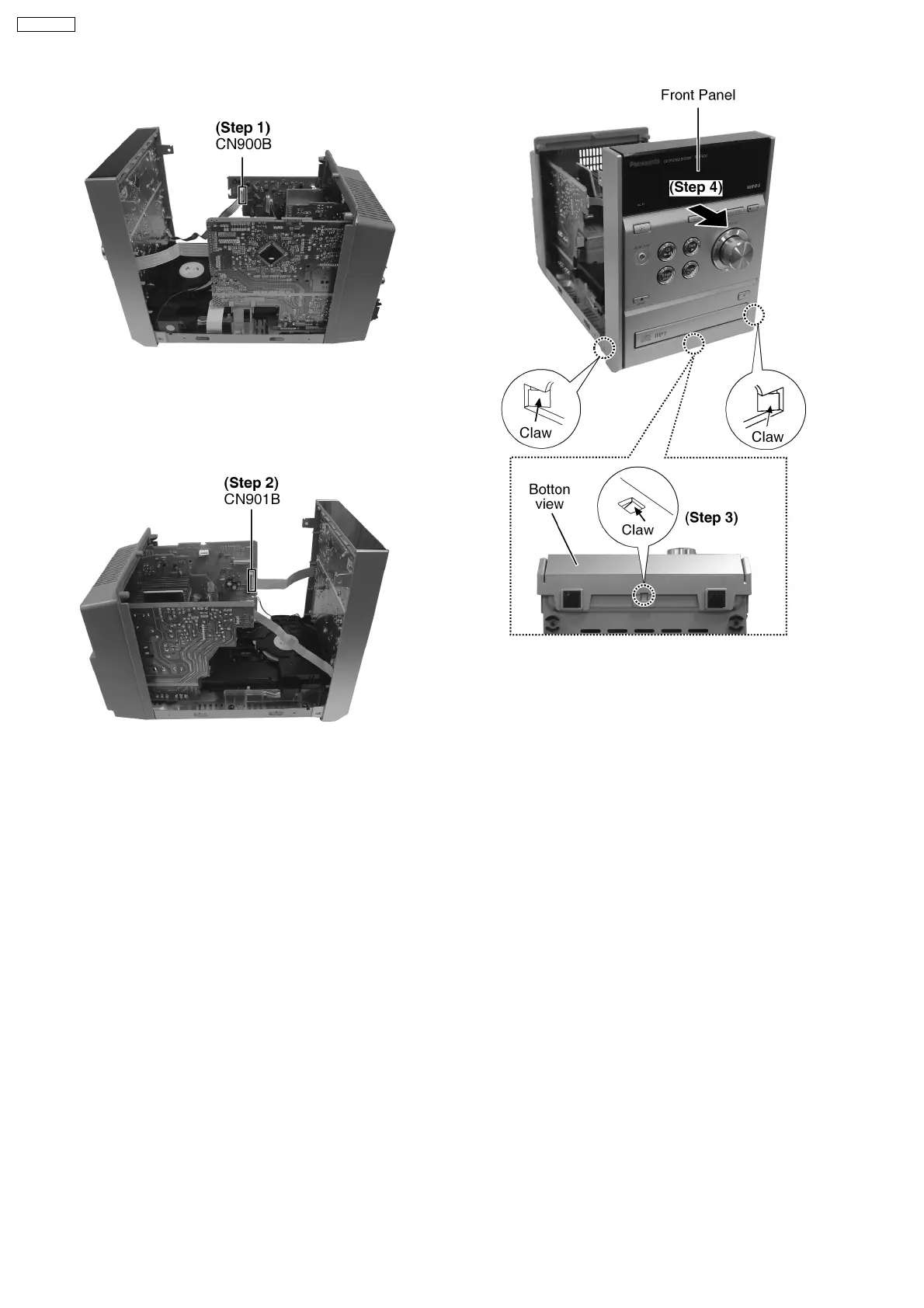

Step 1: Detach connector (CN900B).

Step 2: Disconnect FFC cable (CN901B).

Step 3: Release 3 claws.

Step 4: Remove the Front Panel as arrow shown.

9.9. Disassembly of Panel P.C.B.

Follow the (Step 1) - (Step 4) of Item 9.4.

Follow the (Step 3) - (Step 6) of Item 9.5.

Follow the (Step 1) - (Step 4) of Item 9.8.
