Panasonic SA-PM33EE - Service Positions Overview; Checking and Repairing Deck, Mechanism, Headphone, and Tape Eject PCBs

10 Service Fixture and Tools
Service Tools
Extension P.C.B.
(A) Main P.C.B. - Speaker Terminal P.C.B. RFKZPM33E
11 Service Positions
Note: For description of the disassembly procedures, see the Section 9

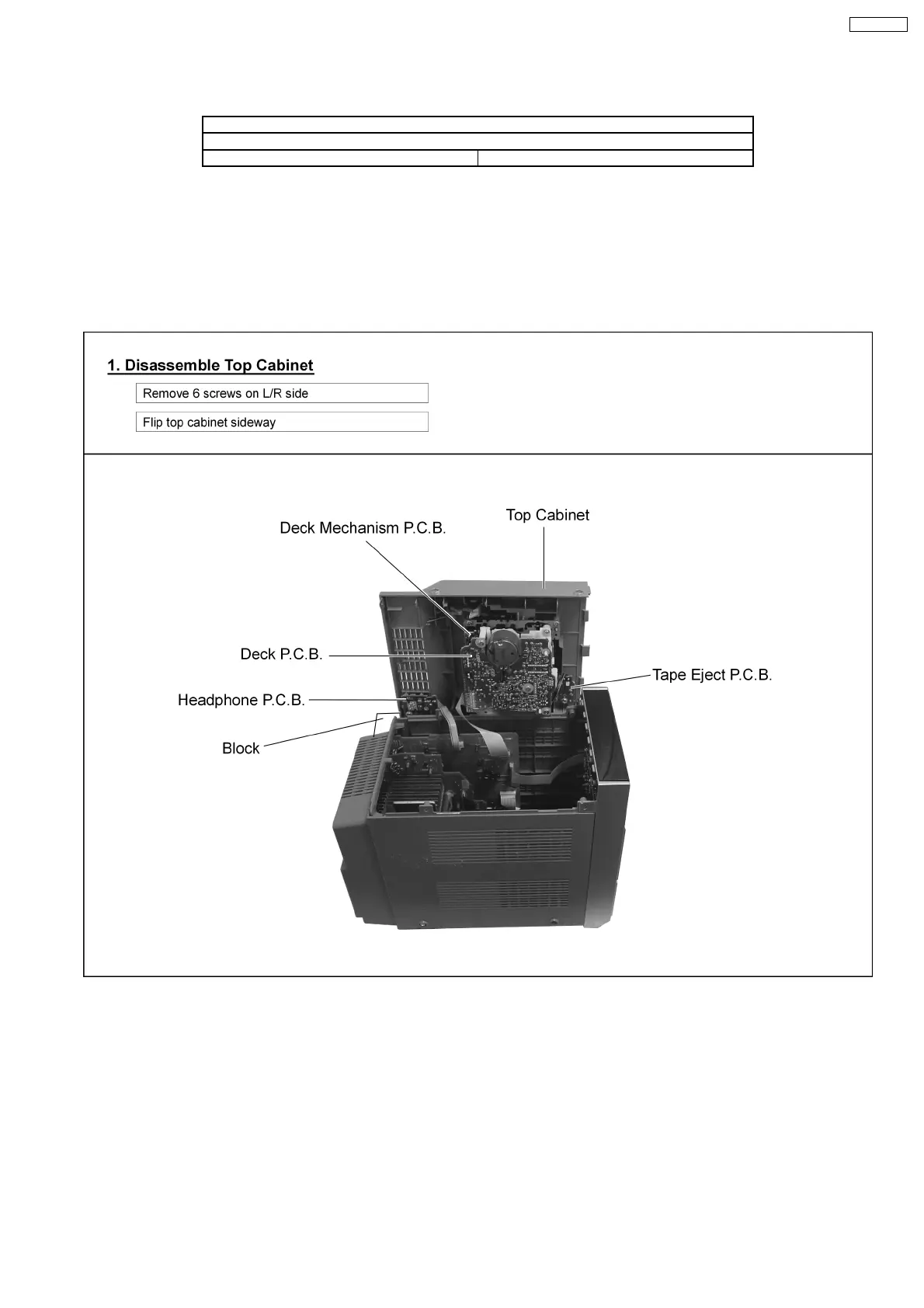

11.1. Checking and Repairing of Deck, Deck Mechanism, Headphone P.C.B.
and Tape Eject P.C.B.
37
SA-PM33EE
