Panasonic SA-PM33EE - Waveform Measurements - CD Servo Signals

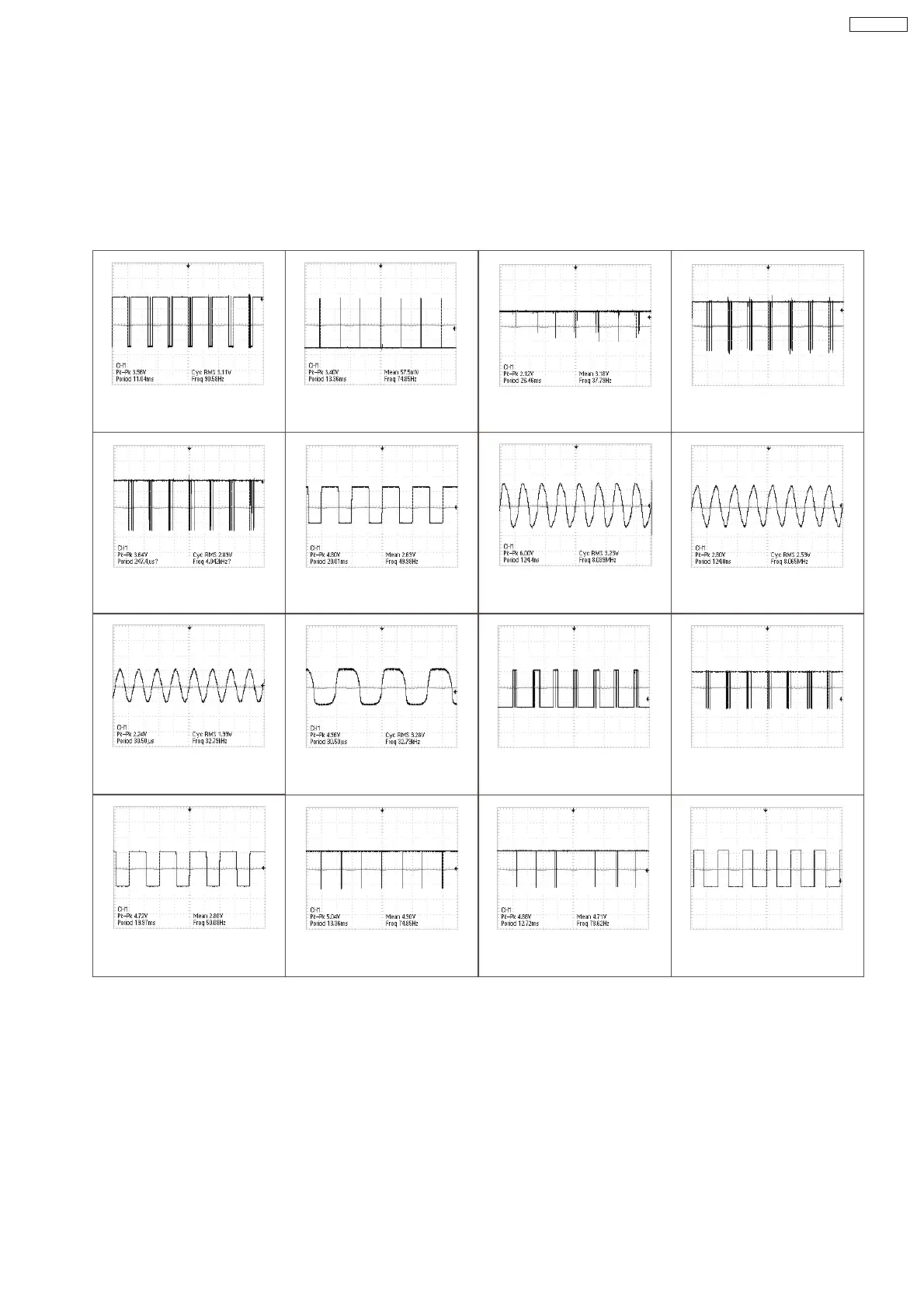

14.2. Waveform
CN801 PIN 4
CD PLAY
3.4Vp-p (10msec.div)
CN801 PIN 5
CD PLAY
3.56Vp-p (10msec.div)
CN801 PIN 7
CD PLAY
3.84Vp-p (10msec.div)
CN801 PIN 8
CD PLAY
3.64Vp-p (10msec.div)
CN803B PIN 5
CD PLAY
4.8Vp-p (10msec.div)
IC803 PIN 12
CD PLAY
6Vp-p (100nsec.div)
IC803 PIN 13
CD PLAY
2.8Vp-p (100nsec.div)
IC803 PIN 15
CD PLAY
2.24Vp-p (25usec.div)
IC803 PIN 16
CD PLAY
4.96Vp-p (10usec.div)
IC803 PIN 22
CD PLAY
1.07Vp-p (10msec.div)
IC803 PIN 23
CD PLAY
4.6Vp-p (10msec.div)
IC803 PIN 27
CD PLAY
4.72Vp-p (10msec.div)
CN801 PIN 6
CD PLAY
3.12Vp-p (10msec.div)
IC803 PIN 30
CD PLAY
5.04Vp-p (10msec.div)
IC803 PIN 36
CD PLAY
4.88Vp-p (10msec.div)
IC803 PIN 40
CD PLAY
2.05Vp-p (50msec.div)
53
SA-PM33EE
