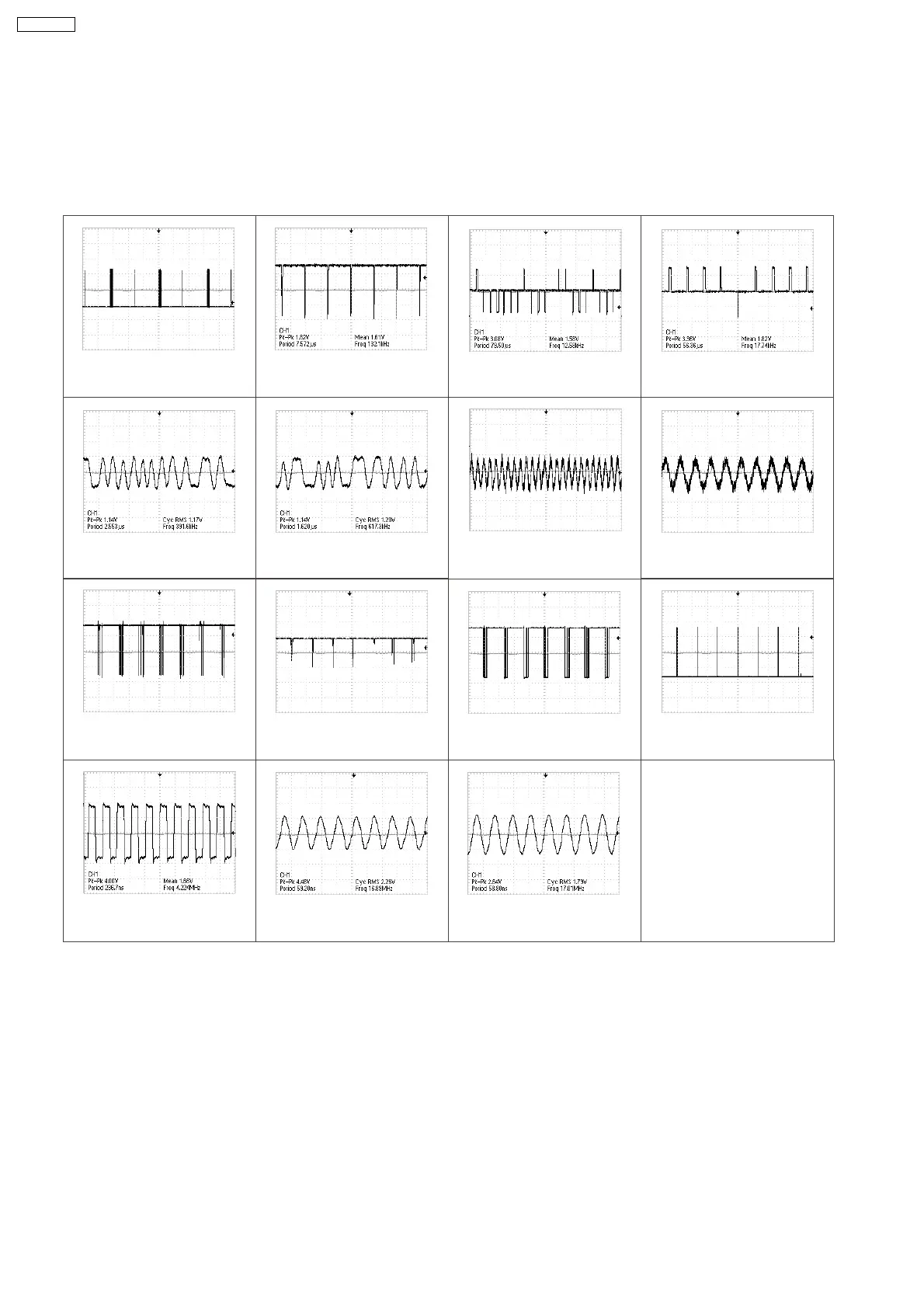

Panasonic SA-PM33EE - Waveform Measurements - Microprocessor and Control Signals

IC803 PIN 44
CD PLAY
218mVp-p (25msec.div)
IC7001 PIN 21
CD PLAY
1.82Vp-p (5usec.div)
CN7001 PIN 25
CD PLAY
3.36Vp-p (10usec.div)
CN7001 PIN 49
CD PLAY
1.14Vp-p (2.5usec.div)
CN7001 PIN 50
CD PLAY
1.14Vp-p (2.5usec.div)
CN7001 PIN 56
CD PLAY
528mVp-p (2.5msec.div)
CN7001 PIN 59
CD PLAY
512mVp-p (1msec.div)
CN7001 PIN 68
CD PLAY
3.8Vp-p (10msec.div)
CN7001 PIN 69
CD PLAY
1.96Vp-p (10msec.div)
CN7001 PIN 70
CD PLAY
3.52Vp-p (10msec.div)
CN7001 PIN 71
CD PLAY
3.28Vp-p (10msec.div)
CN7001 PIN 74
CD PLAY
4Vp-p (250nsec.div)
CN7001 PIN 24
CD PLAY
3.08Vp-p (25usec.div)
CN7001 PIN 80
CD PLAY
4.48Vp-p (50nsec.div)
CN7001 PIN 81
CD PLAY
2.64Vp-p (50nsec.div)
54
SA-PM33EE
