Panasonic SA-PM33EE - Disassembly of Cassette Lid

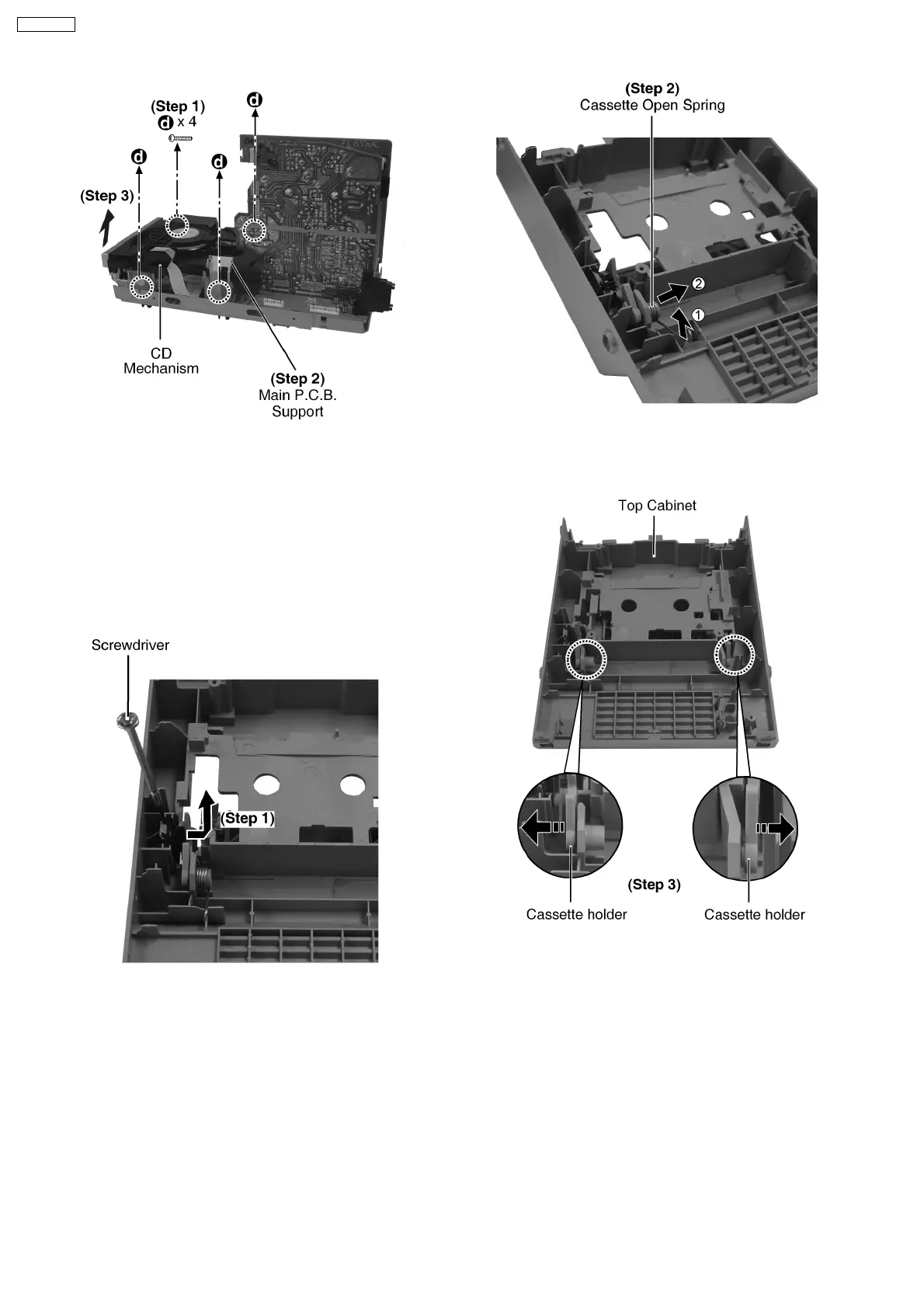

Step 1: Remove 4 screws.
Step 2: Remove the Main P.C.B. support.
Step 3: Remove CD Mechanism as arrow shown.
9.17. Disassembly of Cassette Lid
· Follow the (Step 1) - (Step 2) of Item 9.4.
· Follow the (Step 3) - (Step 6) of Item 9.5.
· Follow the (Step 1) - (step 4) of Item 9.6.
Step 1: Using screwdriver to remove Damper gear
as arrow shown.
Step 2: Remove the Cassette Open Spring as
arrow shown in order.
Step 3: Pull the sides Cassette holders to the
direction of the arrows shown.
28
SA-PM33EE
