Panasonic SA-PT850EE - Video Section; HDMI AV Output

Terminal: Stereo, 3.5 mm jack
Mic Jack:
Sensitivity: 0.7 mV, 1.2 kΩ
Terminal: Mono, 6.3 mm jack (2 system)
Front Music Port:
Sensitivity: 100 mV, 1.4 kΩ
Terminal: Stereo, 3.5 mm jack
USB Port:
USB standard: USB 2.0 full speed
Media file format support:
MP3 (*.mp3)
WMA (*.wma)
JPEG (*.Jpg, *.JPEG)
MPEG4 (*.asf)
USB device file system: (FAT12) (FAT16) (FAT32)
USB Port power: Max. 500 mA
lDISC SECTION
Discs played (8 cm or 12 cm):
(1) DVD [DVD-Video, DivX (*6, *7)]
(2) DVD-RAM [DVD-VR, MP3 (*2, *7), JPEG (*4, *7), MPEG4
(*5, *7), DivX (*6, *7)]
(3) DVD-R [DVD-Video, DVD-VR, MP3 (*2, *7), JPEG (*4, *7),
MPEG4 (*5, *7), DivX (*6, *7)]
(4) DVD-R DL [DVD-Video, DVD-VR]
(5) DVD-RW [DVD-Video, DVD-VR, MP3 (*2, *7), JPEG (*4, *7),
MPEG4 (*5, *7), DivX (*6, *7)]
(6) +R/+RW [Video]
(7) +R DL [Video]
(8) CD, CD-R/RW [CD-DA, Video CD, SVCD (*1), MP3 (*2, *7),
WMA (*3, *7), JPEG (*4, *7), MPEG4 (*5, *7), DivX (*6, *7),
HighMAT Level 2 (Audio and Image)]
*1 Conforming to IEC62107
*2 MPEG-1 Layer 3, MPEG-2 Layer 3
*3 Windows Media Audio Ver.9.0 L3
lNot compatible with Multiple Bit Rate (MBR)
*4 Exif Ver 2.1 JPEG Baseline files
lPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2, or 4:4:4).
Extremely long and narrow pictures may not be displayed.
*5 MPEG4 data recorded with the Panasonic SD multi cameras
or DVD video recorders.
lConforming to SD VIDEO specifications (ASF standard)/
MPEG4 (Simple Profile) video system/G.726 audio system.
*6 Plays all versions of DivX® video (including DivX®6) with
standard playback of DivX® media files. Certified to the DivX
Home Theater Profile.
*7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture
and video contents and 400 groups.
Pick Up:
Wavelength:
lCD: 785 nm
lDVD: 662 nm
Laser power:
lCD: CLASS 1M
lDVD: CLASS 1
Audio Output (Disc):
Number of channels: 5.1 ch (FL, FR, C, SL, SR,
SW)
lVIDEO SECTION
V
ideo System: PAL 625/50, PAL 525/60,
NTSC
Composite Video Output:
lOutput level: 1 Vp-p (75 Ω)
lTerminal: Scart jack (1 system)
S-video Output:
lY output level: 1 Vp-p (75 Ω)
lC output level: PAL; 0.3 Vp-p (75 Ω)
NTSC; 0.286 Vp-p (75 Ω)
lTerminal Scart jack (1 system)
Component Video Output: (NTSC: 480p/480i, PAL: 576p/576i)
lY output level: 1 Vp-p (75 Ω)
lP
B
output level: 0.7 Vp-p (75 Ω)
lP
R
output level:
0.7 Vp-p (75 Ω)
lTerminal: Pin jack (Y: green, P
B
: blue,
P
R
: red) (1 system)
RGB Video Output:
lR output level: 0.7 Vp-p (75 Ω)
lG output level: 0.7 Vp-p (75 Ω)
lB output level: 0.7 Vp-p (75 Ω)
lTerminal: Scart jack (1 system)
HDMI AV Output:
lTerminal: Type A connector (19 pin)
This unit supports “HDAVI Control 2” function.
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Solder:
This model uses lead free solder (PbF).
Mechanism:
This model uses DL2S (Single tray) mechanism.

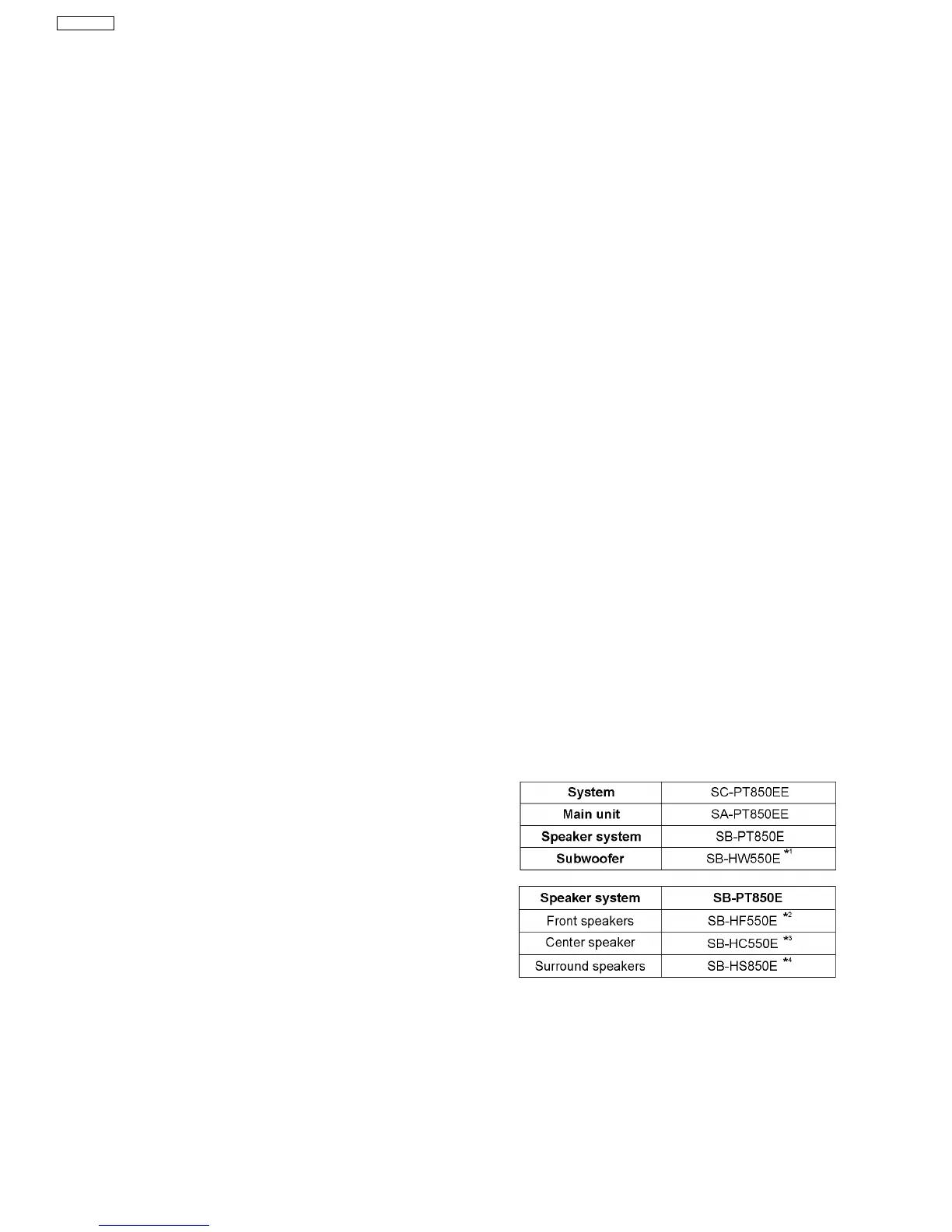

Refer to their respective original service manuals for *1, *2,
*3, *4.
2
SA-PT850EE
