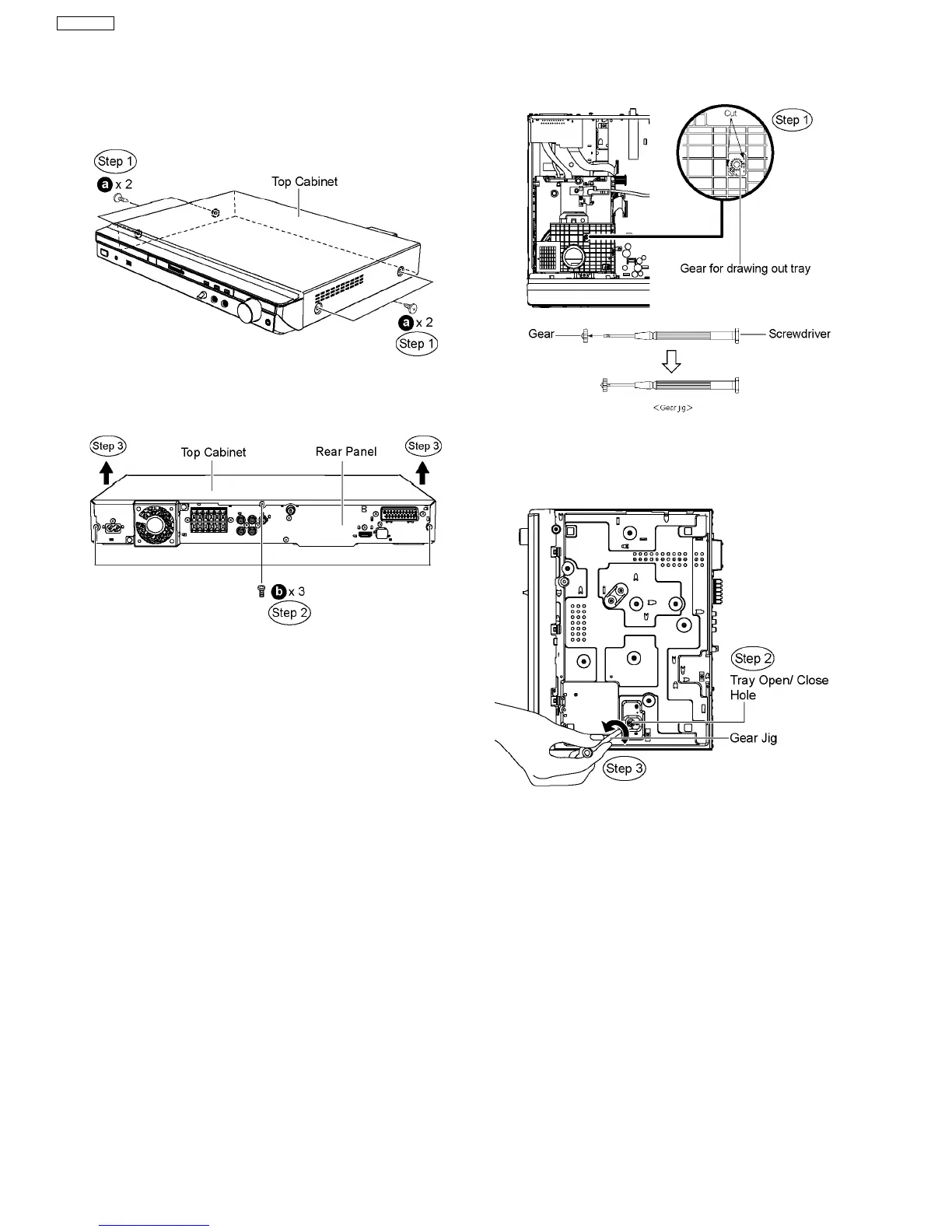

10.3. Disassembly of Top Cabinet
Step 1 Remove 4 screws.
Step 2 Remove 3 screws at the rear panel
Step 3 Lift up and remove the top cabinet in the direction of
arrows.
10.4. Disassembly of the DVD Lid
(When taking out disc
manually)
·
Follow (Step 1) to (Step 3) of Item 10.3.
Step 1 Detach the gear (For drawing out tray) from the
mechanism unit. It inserts a screw driver in the gear. (The gear
jig)
Step 2 Insert the gear jig into the tray open/ close hole.
Step 3 Turn the gear jig counterclockwise to open the tray.
Note : Do not use force to push the tray backwards as it can
damage the mechanism unit.
Step 4 Release the tabs in the direction of arrows and remove
the DVD lid.
40
SA-PT850EE
