Panasonic SA-PT850EE - Checking & Repairing D-Amp; Checking & Repairing DVD Module

· Servicing Position of Main P.C.B.

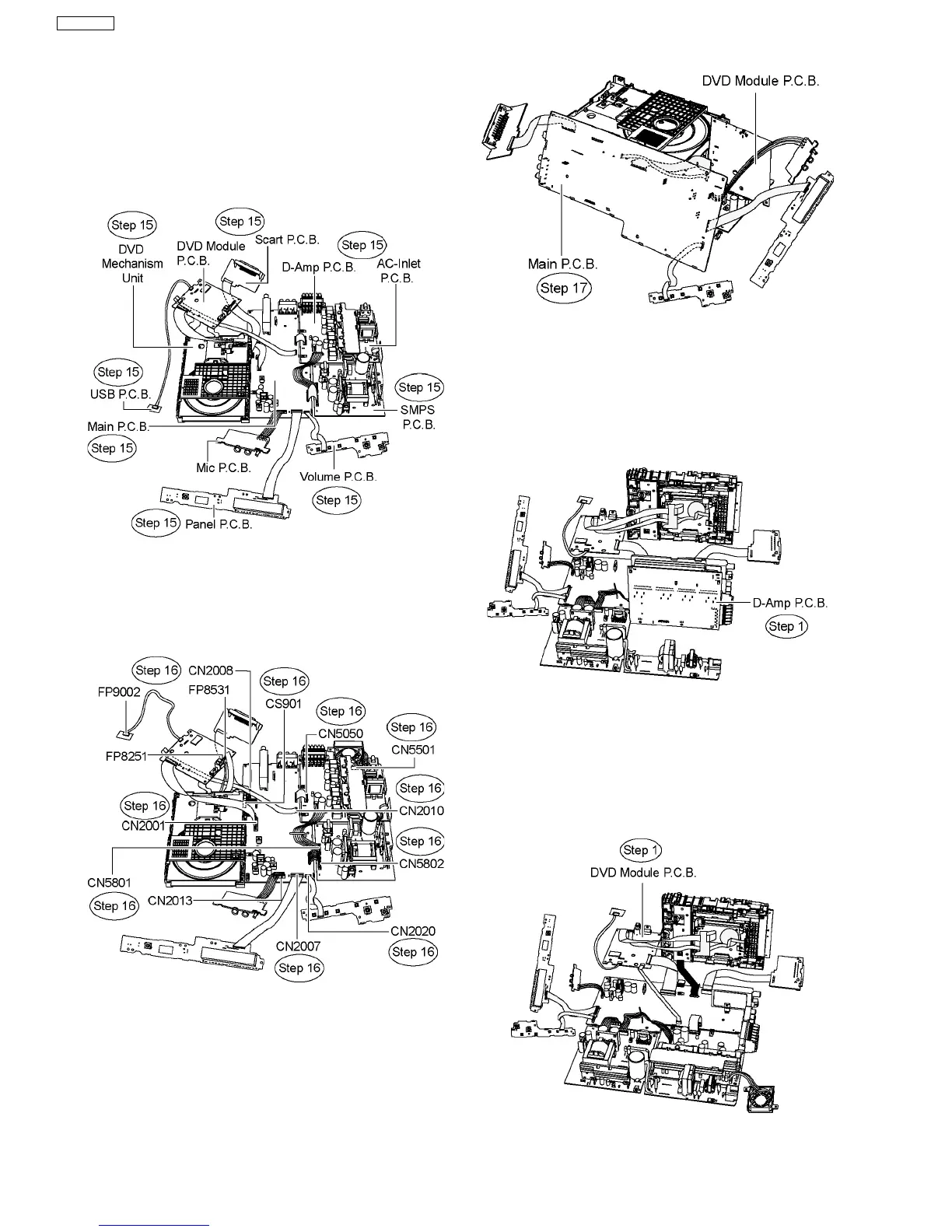

Step 15 Position Volume P.C.B., Mic P.C.B., Panel P.C.B.,
USB P.C.B., Scart P.C.B., DVD mechanism unit, DVD Module
P.C.B., Main P.C.B., D-Amp P.C.B., SMPS P.C.B. & AC-Inlet
P.C.B. according to to diagram shown below.
Step 16 Connect FFC cable at the connectors (CN2001,
CN2007, CN2008, CN2010, CN2013 & CN2020) on Main
P.C.B., (CN5050 & CN5501) on D-Amp P.C.B., (CN5801 &
CN5802) on SMPS P.C.B. (CS901) on Tray Loading P.C.B.,
(FP8251 & FP8531) on DVD Module P.C.B. and (FP9002) on
USB P.C.B.
Step 17 Turn over Main P.C.B vertically and place it according
to the diagram shown below.
12.5. Checking & Repairing D-Amp
P.C.B.
· Follow (Step 1) to (Step 16) of Item 12.4.
Step 1 Turn over D-Amp P.C.B vertically and place it according
to the diagram shown below.
12.6. Checking & Repairing DVD
Module P.C.B.
· Follow (Step 1) to (Step 16) of Item 12.4.
Step 1 Turn over DVD Module P.C.B vertically and place it
according to the diagram shown below.
