Network Mode

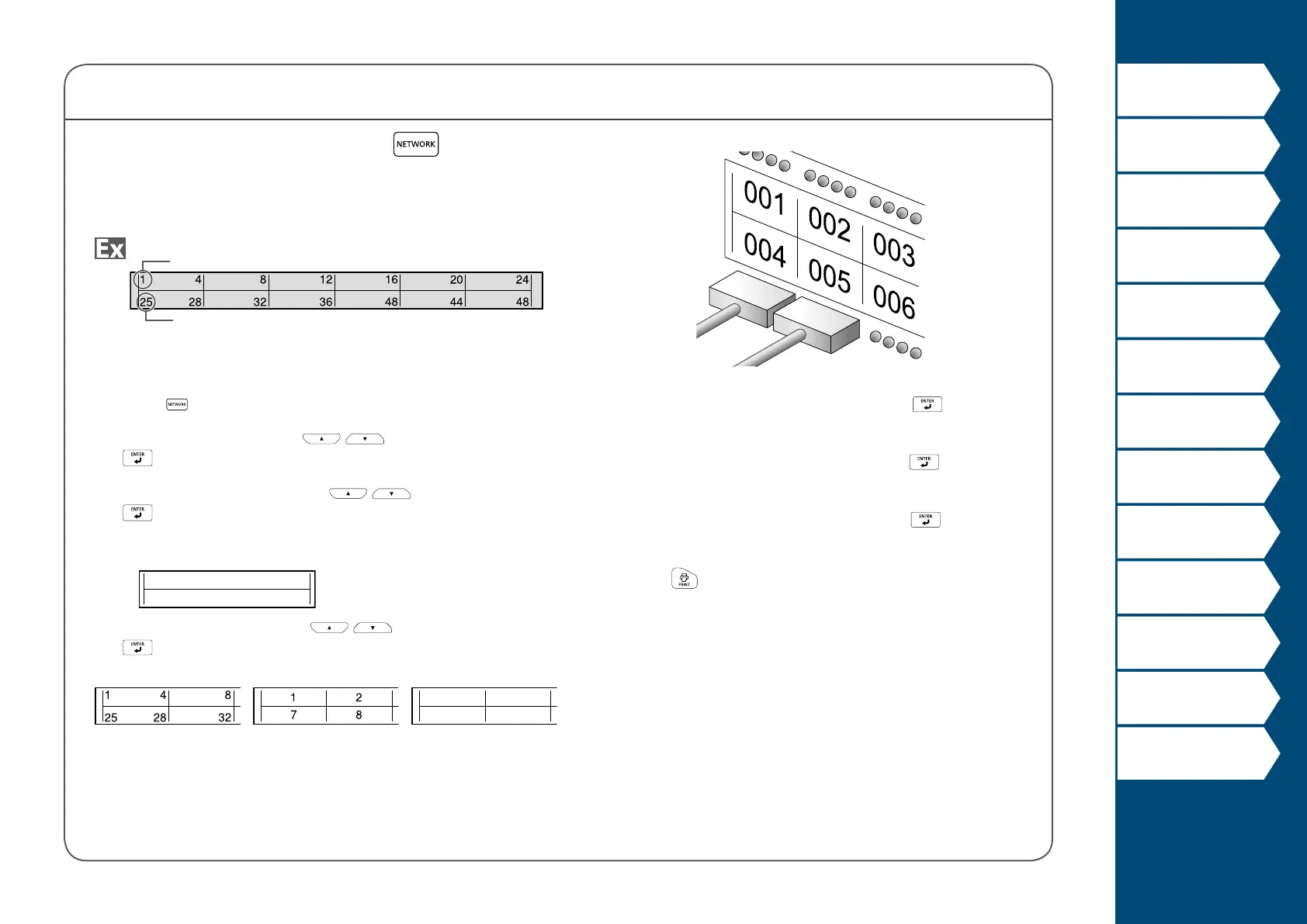

Creating Labels for 110-Block
You can create labels to identify at a glance the numbers for
the wires or pins connected to a 110-Block.
Lower count
Upper count
1. Press .
2. Select "110-Block" with
/ and then press
.
3. Select the blocks type with
/ and then press
.
In this example, we will select "4pairs".
Blank: Creates a table of two rows and one column.
4. Select the text type with / and then press
.
In this example, we will select "Pins".
Pins
Seri.
Blank
5. Enter the upper count and then press .
In this example, we will enter "1".
6. Enter the lower count and then press
.
In this example, "25" is entered automatically.
7. Enter the label length and then press
.
Setting range: 0.39 to 39.36" (1 to 99.99 cm)
8. Press
.
