MG5000+ / MG5050+ Installation Guide
Entry Delay 2 (Full Arm) Zones
Sections [001] to [032]: Zones 1 to 32, First Digits = 04
Upon regular arming, the zone is Entry Delay 2 (see “Entry Delay 2 Zones” on page 23). Upon Stay/Sleep arming, the zone is bypassed by the system. See Zone
Definition Status on page 26 for any exceptions.
Follow Zones
Sections [001] to [032]: Zones 1 to 32, First Digits = 05
When a Regular, Stay, or Sleep armed Follow Zone opens, the control panel will immediately generate an alarm, unless an entry delay zone opens first:
• If a Regular/Stay/Sleep armed Follow Zone opens after an entry delay zone opens, the control panel waits until the entry delay timer has elapsed before
generating an alarm.
• If a Regular/Stay/Sleep armed Follow Zone opens after more than one entry delay zone opens, the control panel will wait until the entry delay timer of the
zone that opened first has elapsed.
This feature is commonly used when a motion detector is protecting the area occupied by the entry point keypad. This will prevent the motion detector from
causing an alarm when a user enters through the entry point to disarm the system. See Zone Definition Status on page 26 for any exceptions.
Follow (Sleep / Full Arm)
Sections [001] to [032]: Zones 1 to 32, First Digits = 06
Upon regular arming or sleep arming, the zone is Follow. Upon Stay arming, the zone is bypassed by the system. See Zone Definition Status on page 26 for any
exceptions.
Follow (Full Arm) Zones
Sections [001] to [032]: Zones 1 to 32, First Digits = 07
Upon regular arming, the zone is Follow (see “Follow Zones” on page 24). Upon Stay or Sleep arming, the zone is bypassed by the system. See Zone Definition Status
on page 26 for any exceptions.
Instant Zones
Sections [001] to [032]: Zones 1 to 32, First Digits = 08
When an armed Instant Zone opens, the control panel immediately generates an alarm. Instant Zones are commonly used for windows, patio doors, skylights and
other perimeter type zones. See Zone Definition Status on page 26 for any exceptions.
Instant (Sleep / Full Arm) Zones
Sections [001] to [032]: Zones 1 to 32, First Digits = 09
When Regular or Sleep arming, the zone is Instant. When Stay arming, the zone is bypassed by the system. See Zone Definition Status on page 26 for any exceptions.
Instant (Full Arm) Zones
Sections [001] to [032]: Zones 1 to 32, First Digits = 10
Upon Regular arming, the zone is Instant. Upon Stay or Sleep arming, the zone is bypassed by the system. See Zone Definition Status on page 26 for any exceptions.
Instant Fire Zones
Sections [001] to [032]: Zones 1 to 32, First Digits = 11
when a Instant Fire zone opens, whether it is armed or disarmed, the control panel will send the corresponding Alarm Report Code and the alarm is always audible
regardless of other settings. Fire alarms generate an intermittent (pulsed) bell/siren output signal as shown in Figure 8 on page 24.

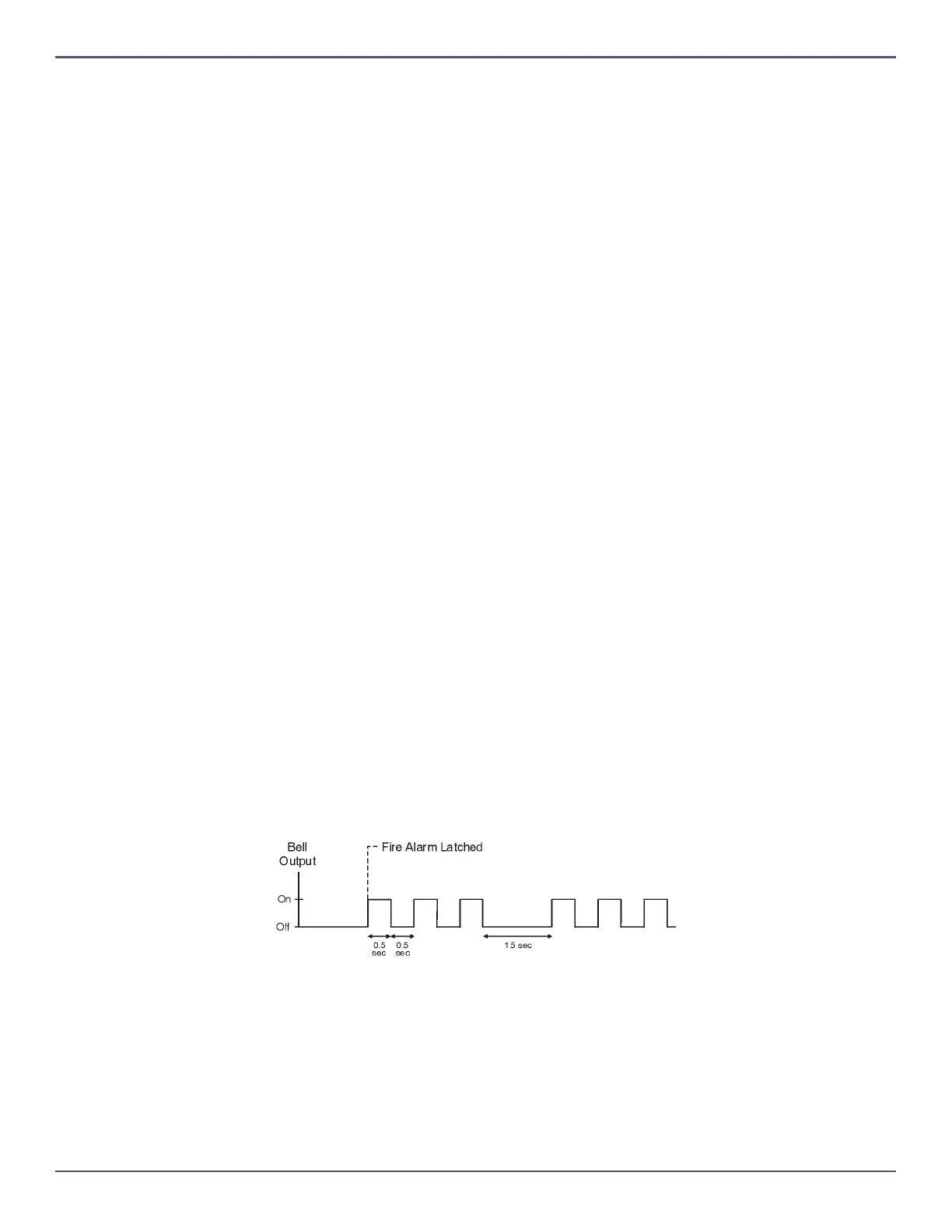

Figure 8: Bell/Siren Output during a Fire Alarm
