g Display panel

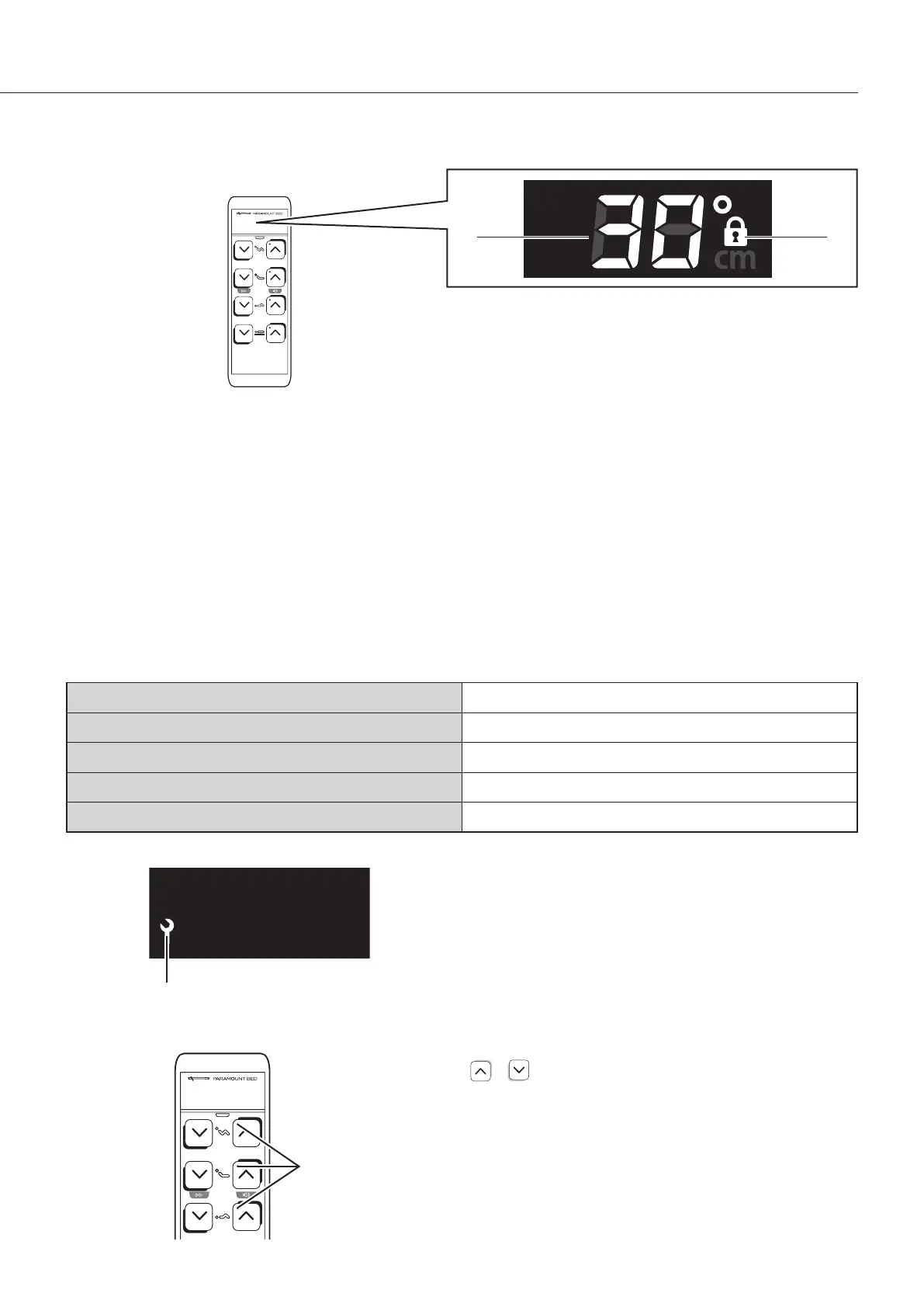

1 Angle/height/error code display
.....Displays the angle of the head and knee
sections and the bed height during operation.
If an error code is displayed, see p. 99.
Head of bed angle indication:
-15˚to85˚(displayedin
incrementsof1˚)
Kneeangleindication: -15˚ to 40˚ (indicated with a
numerical value only for the
upper/lower limit of the knee
angles, and becomes “--”
otherwise).
Height indication : 35 cm to 80 cm (indicated in
increments of 1 cm)*
1)
*1) If other than the 125 mm double-wheel with
resin cover casters are used, the height to the
mattress deck top will be higher than the
indicated value. (For the exact dimensions, see
the table below.)
gIdenticationembossing
/ can be identified by touching the embossed
operation buttons.
Embossed
3
2 Operation disabled state display
.....Flashes when the pressed operation button is
disabled.
3 Wrench mark
.....When it is time to replace the handheld
controller, the wrench mark is displayed in the
setting mode. Contact Paramount Bed (see
p. 118) or your distributor.
125 mm single-wheel with resin cover 35.8 to 80.8 cm
125 mm single-wheel with iron cover (total lock) 36.3 to 81.3 cm
125 mm double-wheel with resin cover 35 to 80 cm
125 mm single-wheel with iron cover (individual lock) 36.3 to 81.3 cm
150 mm single-wheel with resin cover 38.8 to 83.8 cm
