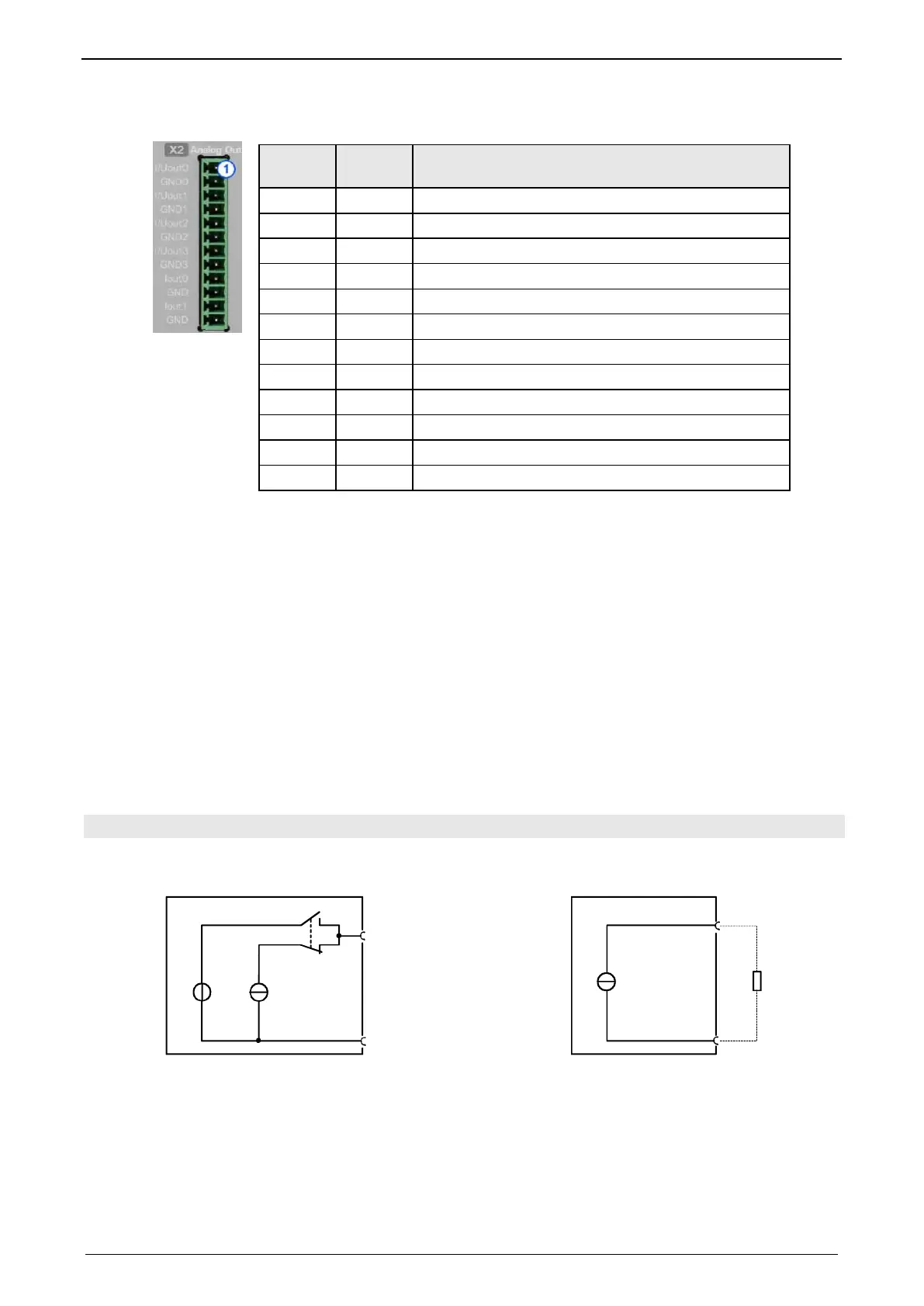

3.2.5. Analog Output (plug X2)
Plug X2
Pin
Descripti
on
Combicon 3.81mm; female connector
1 I/U Aout0 ±10V/10mA or 4..20mA
2 GND 0
3 I/U Aout1 ±10V/10mA or 4..20mA
4 GND 1
5 I/U Aout2 ±10V/10mA or 4..20mA
6 GND 2
7 I/U Aout3 ±10V/10mA or 4..20mA
8 GND 3
9 Iout 0 +/-100mA current output 0
10 GND
11 lout 1 +/-100mA current output 1
12 GND
Terminating resistor:
Voltage +/-10V: ≥ 1000Ω
Current 4..20mA: ≤ 600Ω
Current 100mA: ≤ 100Ω
All outputs are short circuit proof.
Requirement: Connection cable
Use shielded cables.
Shield connection of the cables
The cable must be fully-screened and connected to the Compax3 housing. Use the
cable clamps/shield connecting terminals furnished with the device.
3.2.5.1 Wiring of analog outputs
Output I/U Aout0 Output Iout0
X2/2
0...20mA*
+/-10V
(10mA)
X2/1 I/Uout0
GND0
Compax
3 Fluid
* 20mA to max. 450Ω
X2/10
+/-100mA*
X2/9 Iout0
GND
Compax3 Fluid
* if RL<=180Ω
Aout0 to Aout3 do have the same wiring!
Pin assignment (see on page 17) X2
Iout0 and Iout1 (X2/11 and X2/12) have the same
wiring!
