2.3 Type specification plate Compax3 Fluid

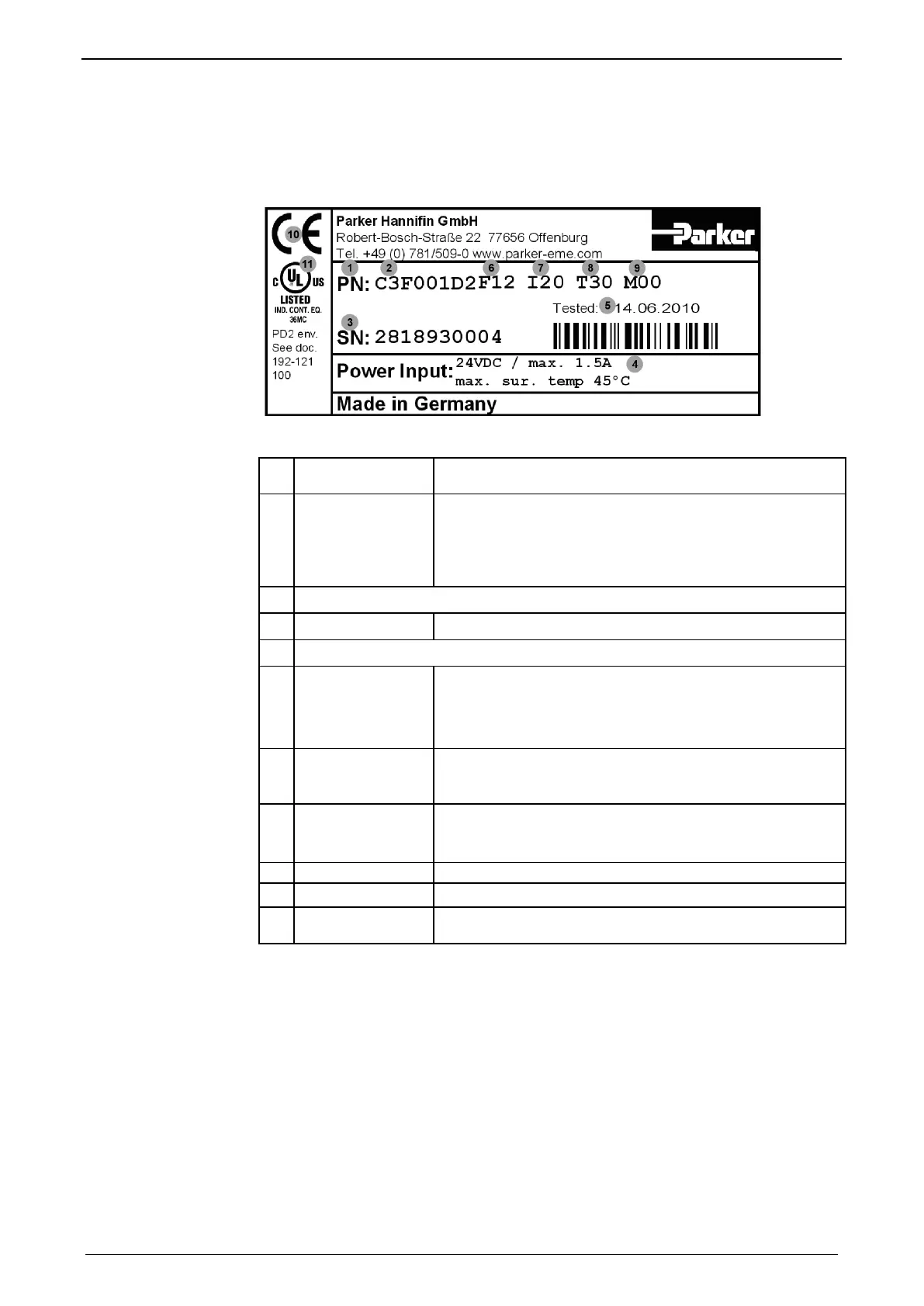

You will find the exact description of the device on the type specification
plate, which is located on the right side of the device:
Explanation:
1 Type designation The complete order designation of the device (2, 6 - 9...)
(category no.)
2 C3F001D2
C3: Abbreviation for Compax3
F =Fluid: Hydraulics Controller
001: +/-10V and 0..20mA outputs (16 Bit)
D2:
24VDC device
3 Unique number of the particular device
4 Supply voltage 24 VDC
5 Date of factory test
6 Designation of the
feedback system
F12:Feedback Module
7 Device interface
I11 / I12:Digital Inputs / Outputs and RS232 / RS485
I20:Profibus DP / I21:CANopen / I22:DeviceNet /
I30:
Ethernet Powerlink /
I31:
EtherCAT /
I32:
Profinet
8 Technology function
T11:Positioning / pressure/force control
T30:Motion control programmable according to IEC61131-3
T40:Electronic cam
9 Options
Mxx:
10 CE compliance
11 UL certification
PD2 (see on page 25)
(degree of pollution)
Type specification
plate Compax3
Fluid:
