Parker Compax3 Fluid - Voltage Supply (Plug X3)

Compax3F device description Hydraulics Controller
18
192-121100 N7 December 2010

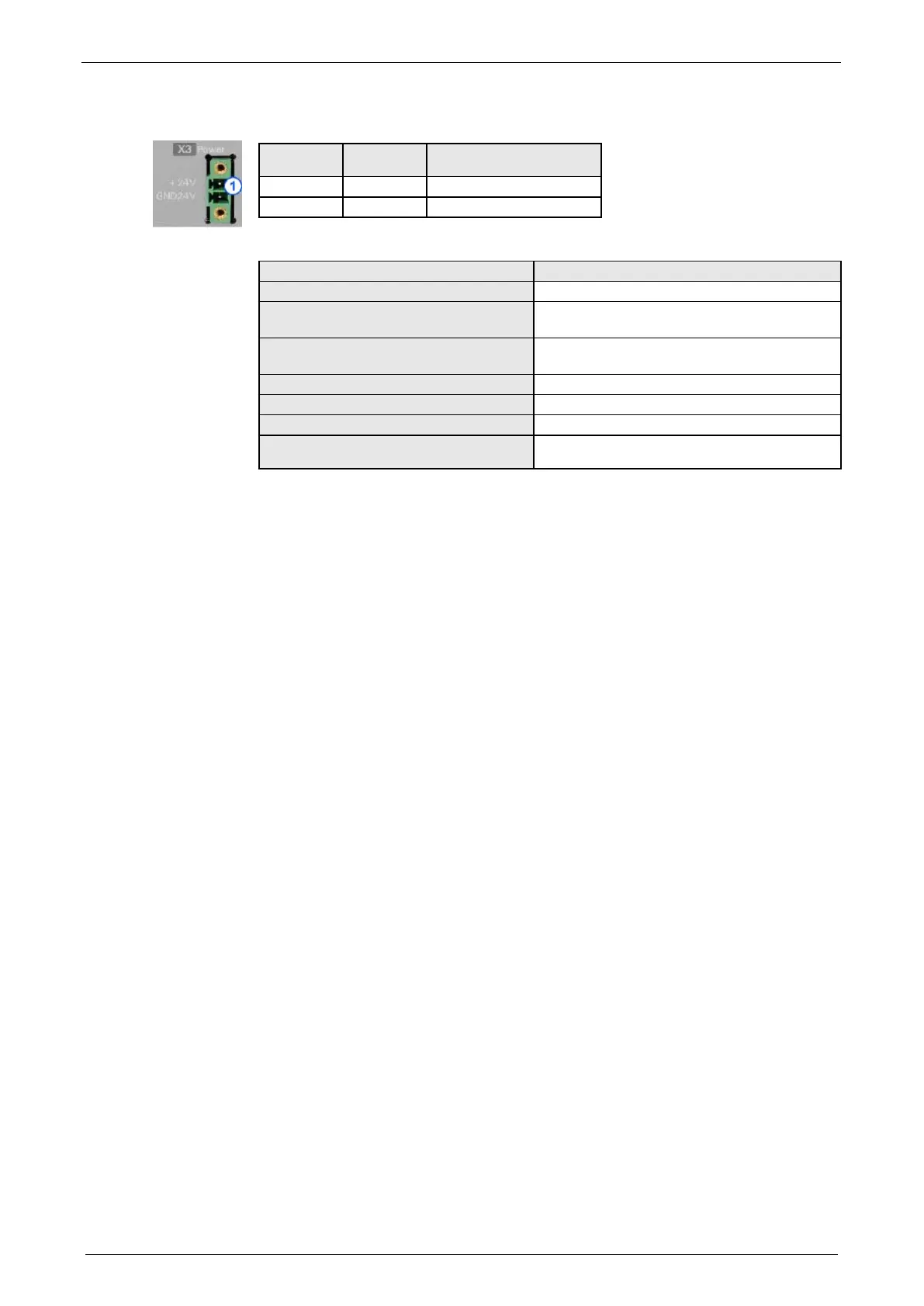

3.2.6. Voltage supply (plug X3)
Connector
X3 Pin
Descriptio
n
Combicon 5mm
1 +24 V 24 VDC (power supply)
2 GND24V GND
Voltage supply 24VDC
Controller type
Compax3 F001 D2
Voltage range
21 - 27VDC
Mains module
with switch-on current limitation, due to
capacitive load
Fuse
MTP miniature circuit breaker or "delayed action
fuse", due to capacitive load
Current drain of the device
0.8A (max. 1.5A)
Total current drain
0.8A + total load of the digital outputs
Ripple
<1Vss
Requirement according to safe extra
low voltage (SELV)
yes
