Introduction
10 192-120102 N7 - February 2004

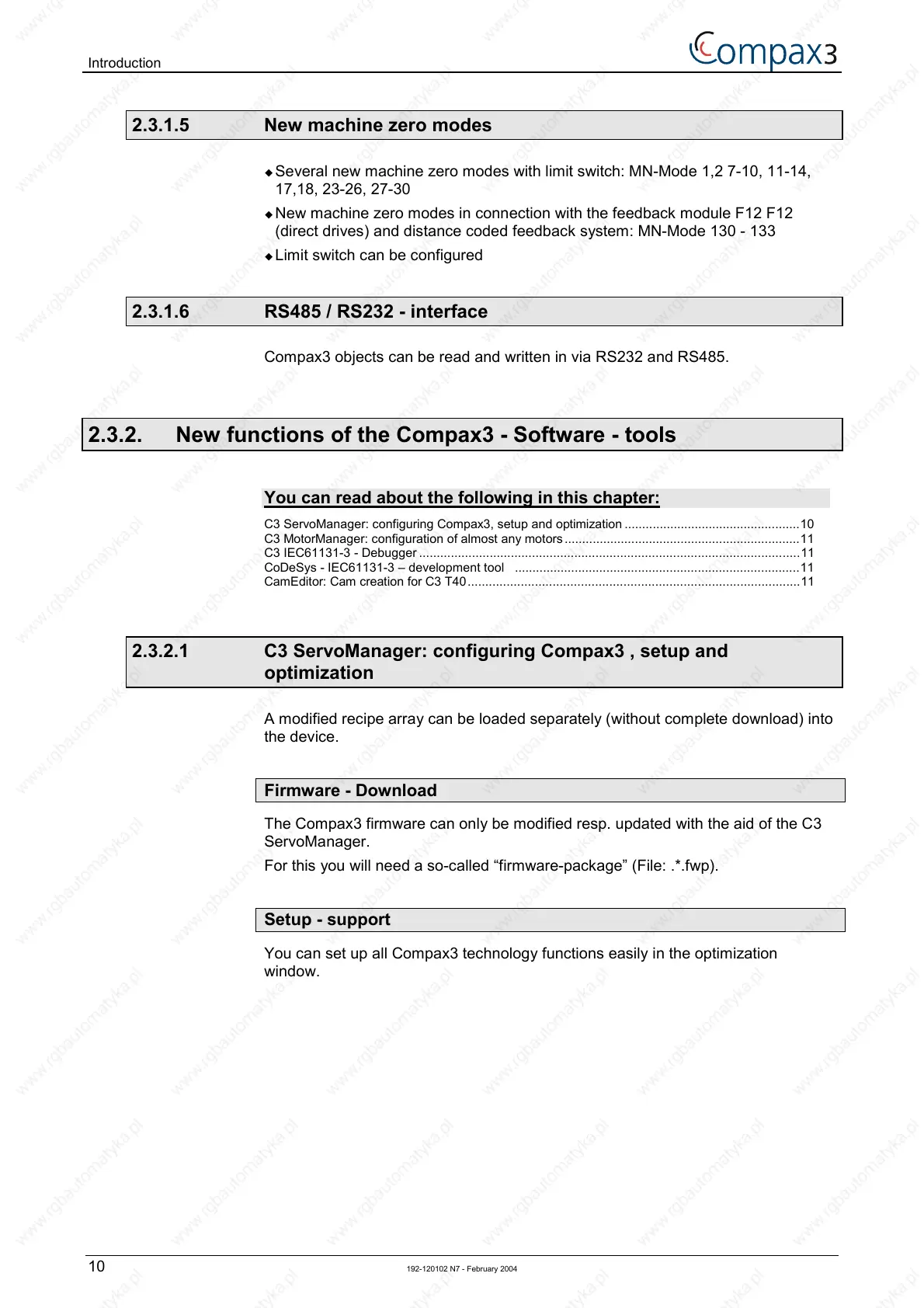

2.3.1.5 New machine zero modes
! Several new machine zero modes with limit switch: MN-Mode 1,2 7-10, 11-14,
17,18, 23-26, 27-30
! New machine zero modes in connection with the feedback module F12 F12
(direct drives) and distance coded feedback system: MN-Mode 130 - 133
! Limit switch can be configured
2.3.1.6 RS485 / RS232 - interface
Compax3 objects can be read and written in via RS232 and RS485.
2.3.2. New functions of the Compax3 - Software - tools
You can read about the following in this chapter:
C3 ServoManager: configuring Compax3, setup and optimization ..................................................10
C3 MotorManager: configuration of almost any motors ...................................................................11
C3 IEC61131-3 - Debugger ............................................................................................................11
CoDeSys - IEC61131-3 – development tool .................................................................................11
CamEditor: Cam creation for C3 T40..............................................................................................11
2.3.2.1 C3 ServoManager: configuring Compax3 , setup and
optimization
A modified recipe array can be loaded separately (without complete download) into
the device.
Firmware - Download
The Compax3 firmware can only be modified resp. updated with the aid of the C3
ServoManager.
For this you will need a so-called “firmware-package” (File: .*.fwp).
Setup - support
You can set up all Compax3 technology functions easily in the optimization
window.
