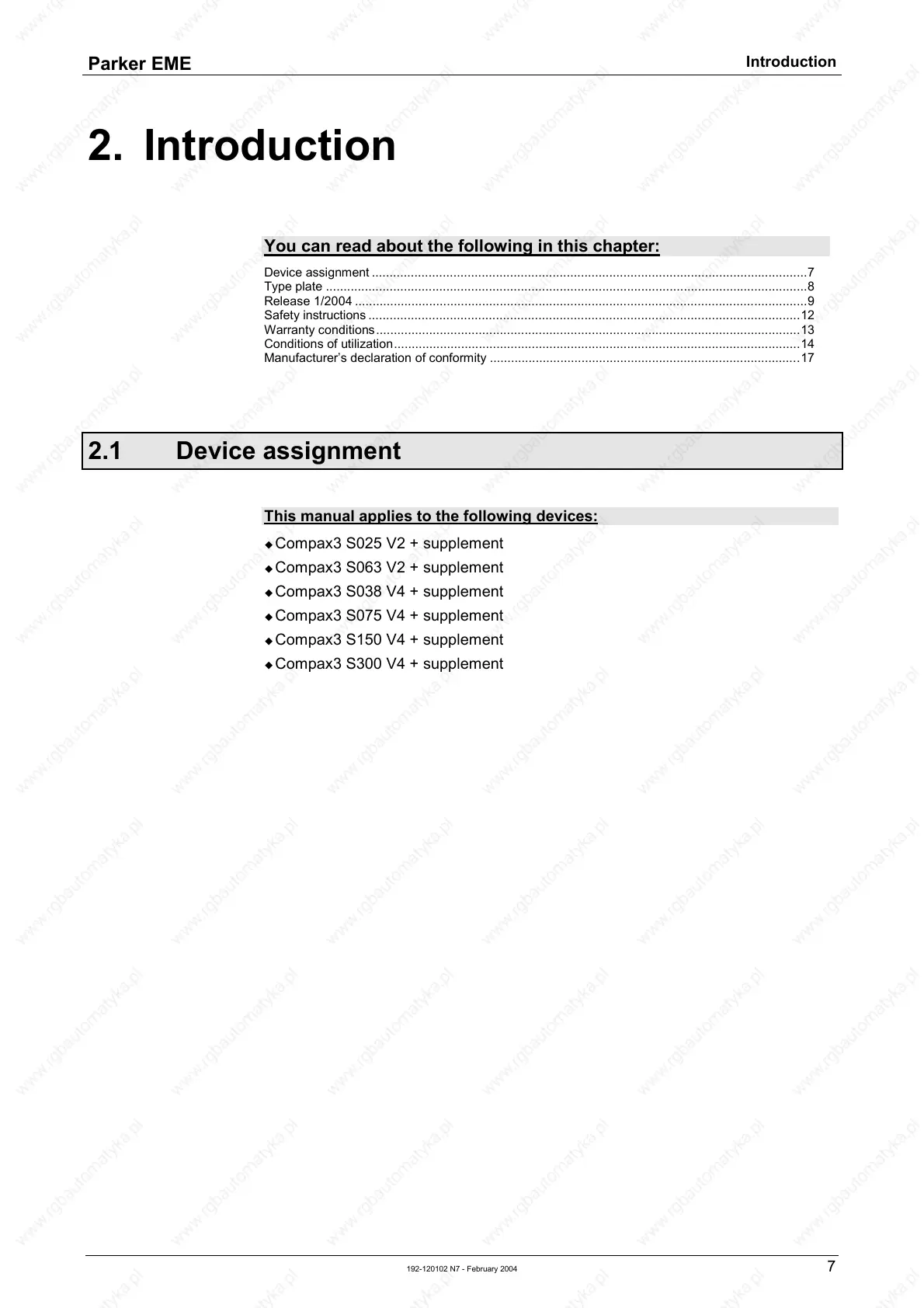

Parker Compax3 Series Installation Manual

Parker EME
Introduction
192-120102 N7 - February 2004 7
You can read about the following in this chapter:
Device assignment ...........................................................................................................................7
Type plate ........................................................................................................................................8
Release 1/2004 ................................................................................................................................9
Safety instructions ..........................................................................................................................12
Warranty conditions........................................................................................................................13
Conditions of utilization...................................................................................................................14
Manufacturer’s declaration of conformity ........................................................................................17
2.1 Device assignment
This manual applies to the following devices:
! Compax3 S025 V2 + supplement
! Compax3 S063 V2 + supplement
! Compax3 S038 V4 + supplement
! Compax3 S075 V4 + supplement
! Compax3 S150 V4 + supplement
! Compax3 S300 V4 + supplement
2. Introduction

Parker Compax3 Series Specifications

General

Enclosure Rating	IP20
Control Modes	Speed, Torque, Position
Communication Interfaces	CANopen, EtherCAT
Feedback Options	Incremental Encoder, Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Cooling Method	Forced Air, Natural Convection
Relative Humidity	5 to 85 %, non-condensing
Operating Temperature	0 to +45 °C (derating may apply above 40°C)
