Introduction
14 192-120102 N7 - February 2004

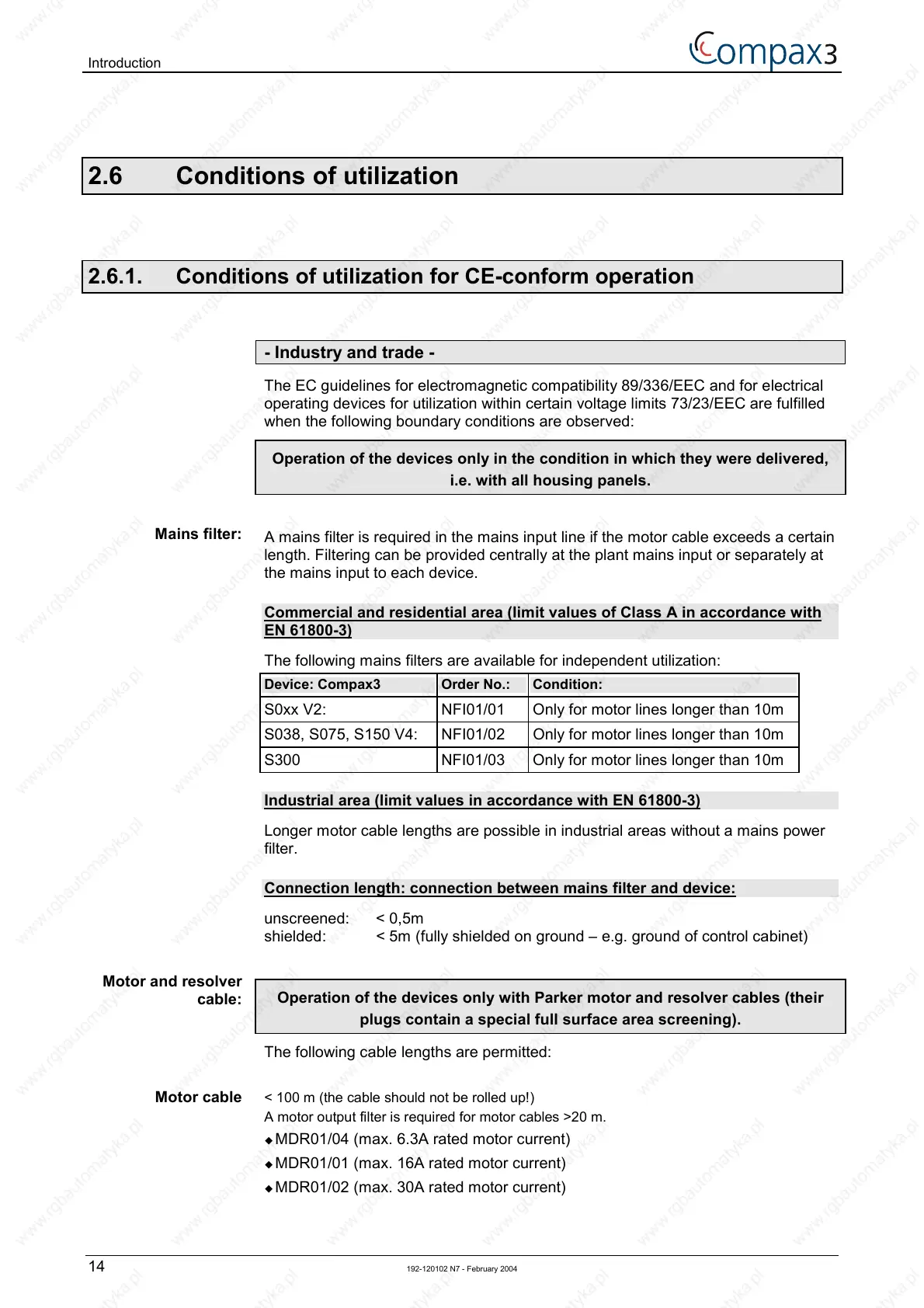

2.6 Conditions of utilization
2.6.1. Conditions of utilization for CE-conform operation
- Industry and trade -
The EC guidelines for electromagnetic compatibility 89/336/EEC and for electrical
operating devices for utilization within certain voltage limits 73/23/EEC are fulfilled
when the following boundary conditions are observed:
Operation of the devices only in the condition in which they were delivered,
i.e. with all housing panels.
A mains filter is required in the mains input line if the motor cable exceeds a certain
length. Filtering can be provided centrally at the plant mains input or separately at
the mains input to each device.
Commercial and residential area (limit values of Class A in accordance with
EN 61800-3)
The following mains filters are available for independent utilization:
Device: Compax3 Order No.: Condition:
S0xx V2: NFI01/01 Only for motor lines longer than 10m
S038, S075, S150 V4: NFI01/02 Only for motor lines longer than 10m
S300 NFI01/03 Only for motor lines longer than 10m
Industrial area (limit values in accordance with EN 61800-3)
Longer motor cable lengths are possible in industrial areas without a mains power
filter.
Connection length: connection between mains filter and device:
unscreened: < 0,5m
shielded: < 5m (fully shielded on ground – e.g. ground of control cabinet)
Operation of the devices only with Parker motor and resolver cables (their
plugs contain a special full surface area screening).
The following cable lengths are permitted:
< 100 m (the cable should not be rolled up!)
A motor output filter is required for motor cables >20 m.
! MDR01/04 (max. 6.3A rated motor current)
! MDR01/01 (max. 16A rated motor current)
! MDR01/02 (max. 30A rated motor current)
Mains filter:
Motor and resolve
cable:
Motor cable
